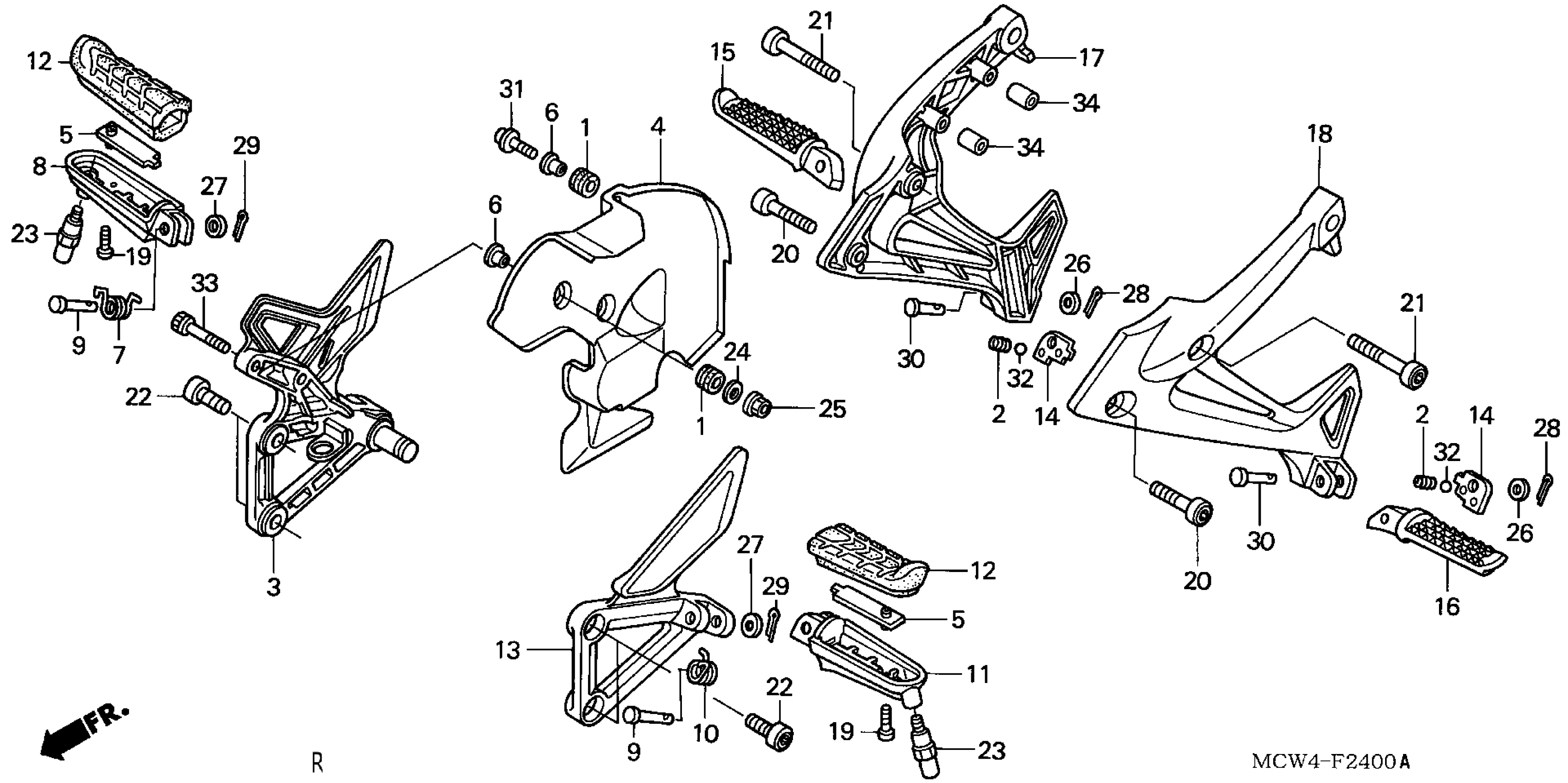

Honda VFR800AC (02) INTERCEPTOR, JPN, VIN# JH2RC461-2M400001 TO JH2RC461-2M499999 STEP Diagram

#

Description
Price

1

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

2

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

3

HOLDER, R. MAIN STEP

50600-MCW-D00

$141.00

4

GUARD, MAIN STEP HEAT

50606-MCW-D00

$79.18

5

PLATE, STEP SETTING

50609-MBW-000

$5.44

6

COLLAR, HEAT GUARD SETTING

50609-MCW-D00

$2.48

7

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.44

8

ARM, R. MAIN STEP

50635-MBW-000

$53.51

9

PIN, STEP BAR

50639-ML0-010

$5.22

10

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.44

11

ARM, L. MAIN STEP

50645-MBW-000

$53.51

12

RUBBER, MAIN STEP (COO) This part replaces 50661-MBW-000.

50661-MJM-305

$8.80

13

HOLDER, L. MAIN STEP

50700-MCW-D00

$141.00

14

PLATE, PILLION STEP CLICK

50718-KT7-761

$4.01

15

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$46.30

15

BAR, R. PILLION STEP (COO)

50720-K26-305

$46.30

16

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$46.30

16

BAR, L. PILLION STEP (COO)

50730-K26-305

$46.30

17

HOLDER, R. PILLION STEP

50750-MCW-D00

$141.28

18

HOLDER, L. PILLION STEP

50760-MCW-D00

$135.21

19

BOLT, SPECIAL (5X14)

90118-MBW-000

$3.04

20

BOLT, SOCKET (8X32)

90156-MCW-D00

$2.62

21

BOLT, SOCKET (8X50)

90157-MCW-D00

$4.26

22

BOLT, SOCKET (8X22)

90157-ME9-000

$5.72

23

BOLT, SPECIAL CAP (6MM)

90176-MCW-D00

$5.60

24

WASHER (6MM)

90485-286-000

$1.55

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94102-08000

$1.49

28

PIN, COTTER (1.6X12)

94201-16120

$1.49

29

PIN, COTTER (2.0X15)

94201-20150

$1.49

30

PIN C, PILLION FOOTPEG

95015-83000

$2.41

31

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

32

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

33

BOLT, SOCKET (6X35) (SOURCE: VINTAGE PARTS INC.)

96700-06035-00

Unavailable
