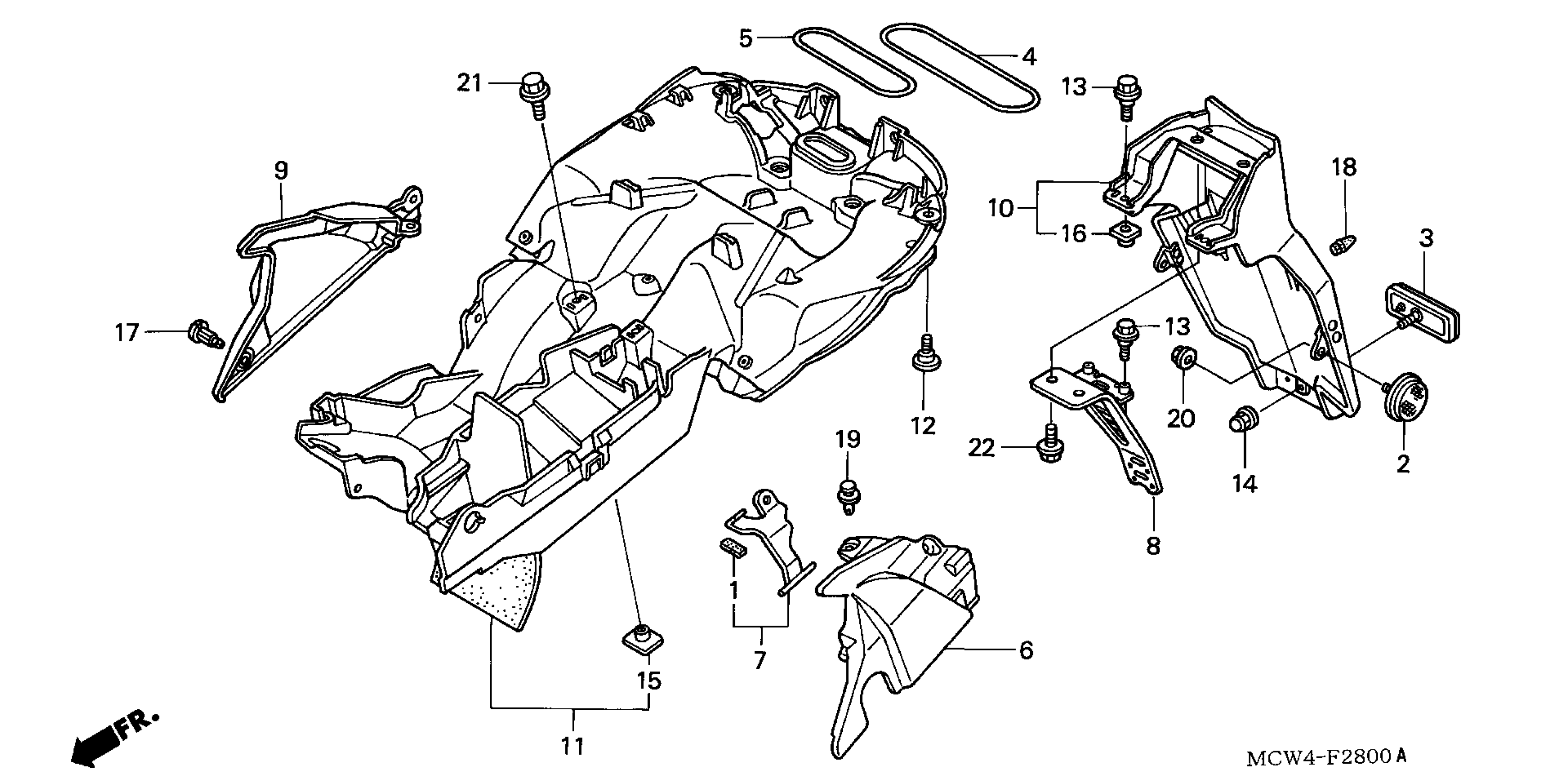

Honda VFR800AC (02) INTERCEPTOR, JPN, VIN# JH2RC461-2M400001 TO JH2RC461-2M499999 REAR FENDER Diagram

CUSHION, RESERVE TANK

19105-MR8-300

$2.52

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

BAND, U-LOCK

50290-MBL-610

$4.89

BAND B, TOOL

50291-MCW-D00

$9.11

COVER, L. SIDE

80110-MCW-D00

$19.34

BAND, BATTERY

80112-MCW-D00

$6.67

PLATE, RR. FENDER

80116-MCW-D01

$50.61

COVER, R. SIDE

80120-MCW-D00

$15.30

FENDER ASSY. A, RR.

80130-MCW-A00

Unavailable

FENDER ASSY. B, RR. | Use up to Frame SN 2M402087. This part replaces 80140-MCW-D00.

80140-MCW-D01

$231.05

FENDER ASSY. B, RR.

80140-MCW-D01

$231.05

SCREW, PAN (6X11)

90106-KY2-701

$4.24

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

NUT, SPECIAL (6MM)

90302-MB1-000

$6.08

NUT, SPECIAL (6MM)

90305-MCW-D00

$3.63

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.80

PLUG, CONE

90899-KL8-000

$3.26

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

NUT, FLANGE (6MM)

94050-06070

$1.49

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
