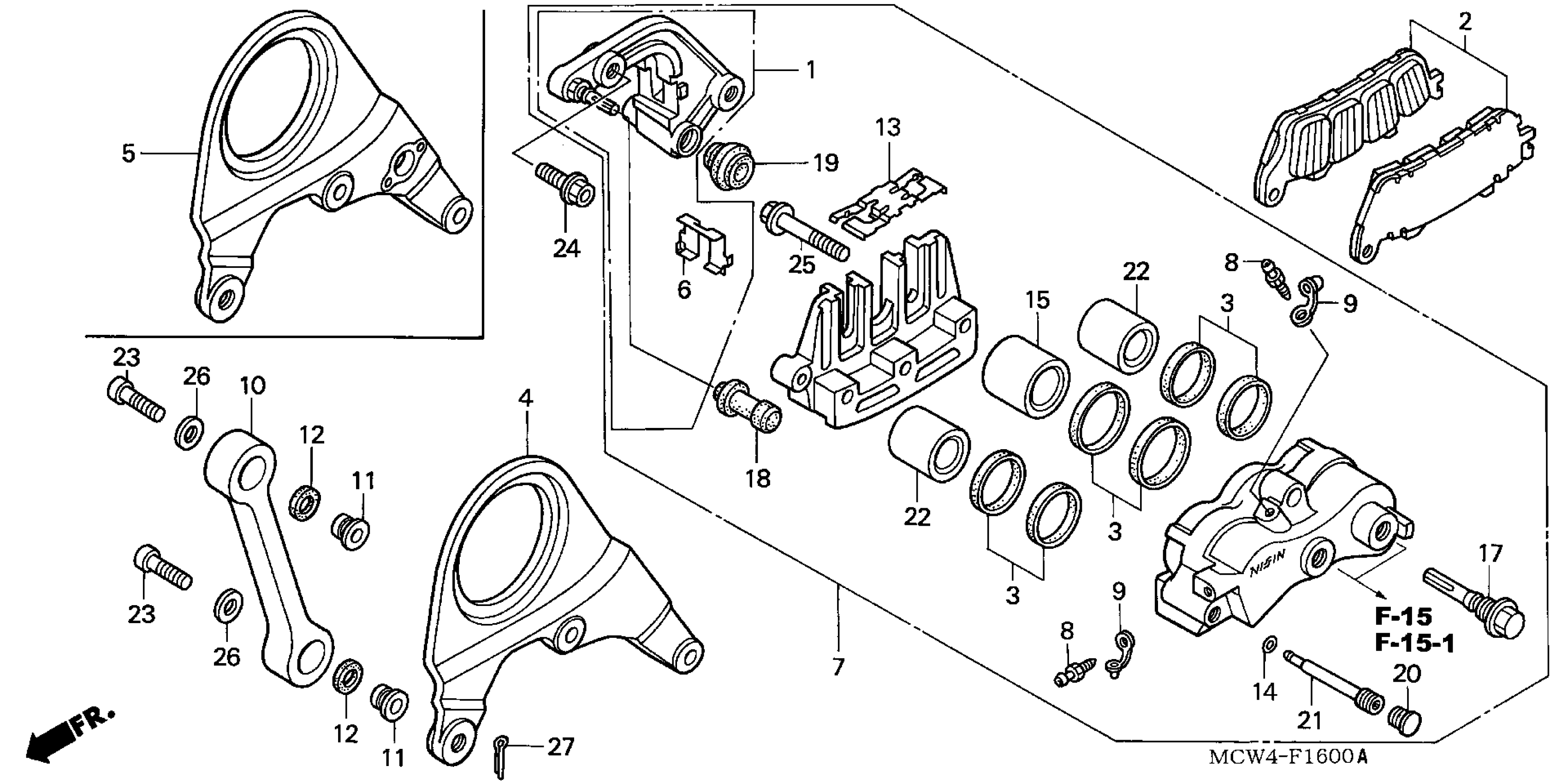

Honda VFR800AC (02) INTERCEPTOR, JPN, VIN# JH2RC461-2M400001 TO JH2RC461-2M499999 REAR BRAKE CALIPER Diagram

BRACKET SUB-ASSY., RR.

06432-MBG-405

Unavailable

PAD SET, RR. This part replaces 06435-MAT-006.

06435-MAT-016

$50.35

PAD SET, RR.

06435-MAT-016

$50.35

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.24

BRACKET, RR. BRAKE

43111-MCW-D00

Unavailable

RETAINER, BRACKET

43112-MBG-006

Unavailable

CALIPER SUB-ASSY., RR.

43150-MCW-D01

$449.20

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

ROD, RR. BRAKE TORQUE

43431-MCW-D00

Unavailable

COLLAR, TORQUE LINK

43432-MCW-D00

$4.38

RUBBER, TORQUE LINK

43434-MCE-000

$0.84

SPRING, PAD

45108-MZ2-016

$7.68

RING, STOPPER

45111-MAJ-G41

$3.54

PISTON A (25X27)

45117-MAJ-G41

$25.38

PIN, BOLT

45131-MZ2-006

$15.61

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

PLUG, PIN

45203-MCC-006

$2.62

PIN, HANGER

45215-MAJ-G41

$5.99

PISTON B (25X35)

45217-MAJ-G41

$33.16

BOLT, SOCKET (10X32)

90122-MCW-D00

$1.88

BOLT, FLANGE (8X25)

90131-GAA-000

$5.75

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.01

WASHER (17.2X26X0.5)

90524-MCW-D00

$2.07

PIN, COTTER (2.0X15)

94201-20150

$0.94
