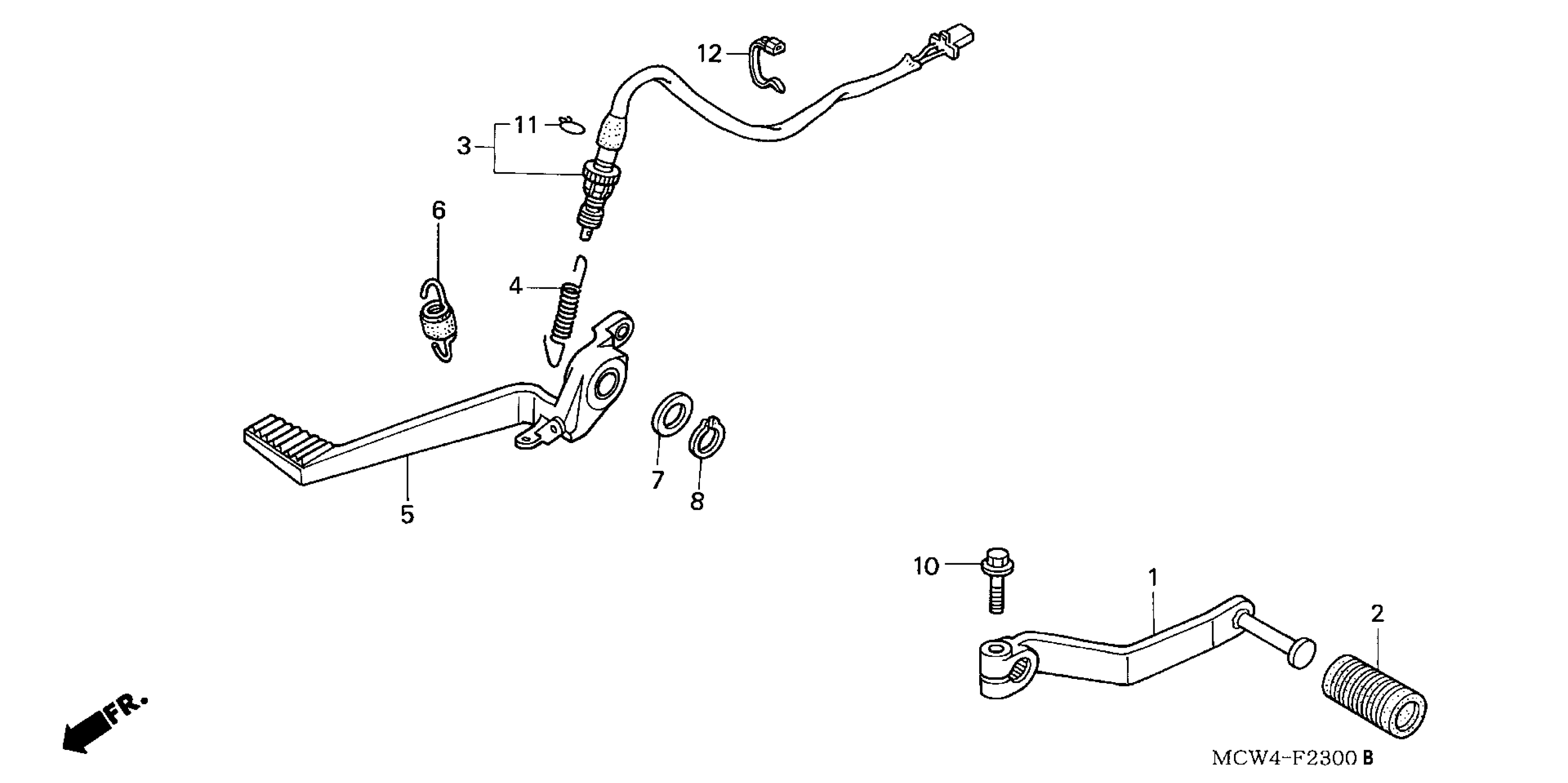

Honda VFR800AC (02) INTERCEPTOR, JPN, VIN# JH2RC461-2M400001 TO JH2RC461-2M499999 PEDAL Diagram

#

Description

Price

1

PEDAL, GEARSHIFT

24701-MAT-000

$60.83

2

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.15

3

SWITCH ASSY., RR. STOP This part replaces 35350-MCW-D00.

35350-MCW-D01

Unavailable

3

SWITCH ASSY., RR. STOP

35350-MCW-D01

Unavailable

4

SPRING, STOP SWITCH

35357-KY1-000

$4.02

5

PEDAL, RR. BRAKE This part replaces 46500-MCW-D00.

46500-MCW-D60

$137.32

5

PEDAL, RR. BRAKE

46500-MCW-D60

$137.32

6

SPRING ASSY., BRAKE PEDAL

46515-MV9-000

$4.70

7

WASHER (15.2X25)

90557-230-000

$2.17

8

CIRCLIP (OUTER) (15MM)

94511-15000

$0.62

10

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

11

CLIP, SWITCH COVER

90601-KAF-003

$2.43
