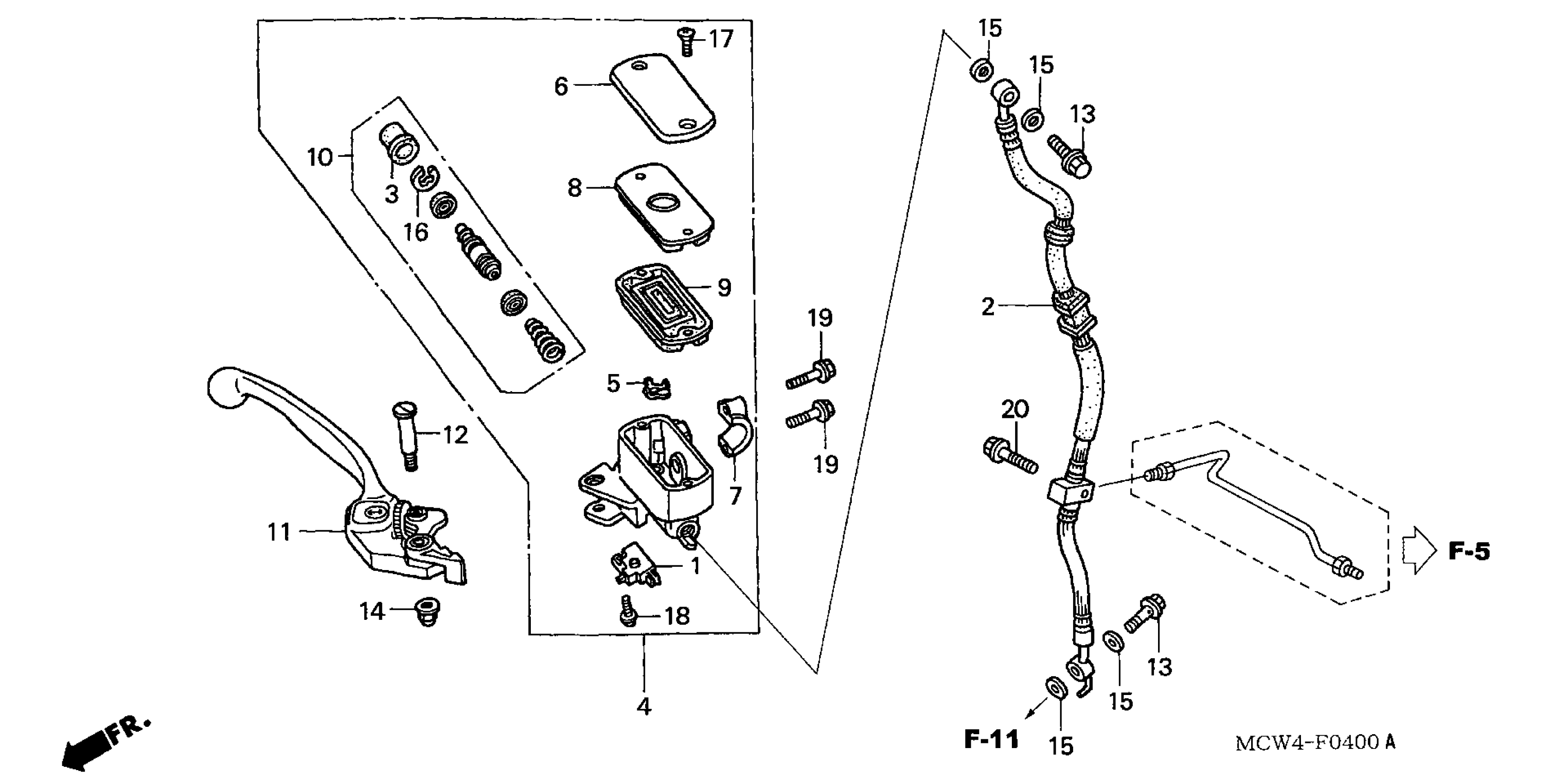

Honda VFR800AC (02) INTERCEPTOR, JPN, VIN# JH2RC461-2M400001 TO JH2RC461-2M499999 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.29

HOSE, FR. MASTER CYLINDER JOINT

45124-MCW-D01

Unavailable

BOOT

45504-410-003

$10.93

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MAJ-G01

$277.48

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER (NISSIN) | Use up to Frame SN 2M401715. This part replaces 45513-MM5-006.

45513-MM5-016

$20.12

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.12

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.57

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.57

MASTER CYLINDER SET

45530-MA4-671

$42.89

LEVER ASSY., R. HANDLE

53170-MBW-006

$39.16

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

NUT, CAP (6MM)

90201-415-000

$1.96

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable
