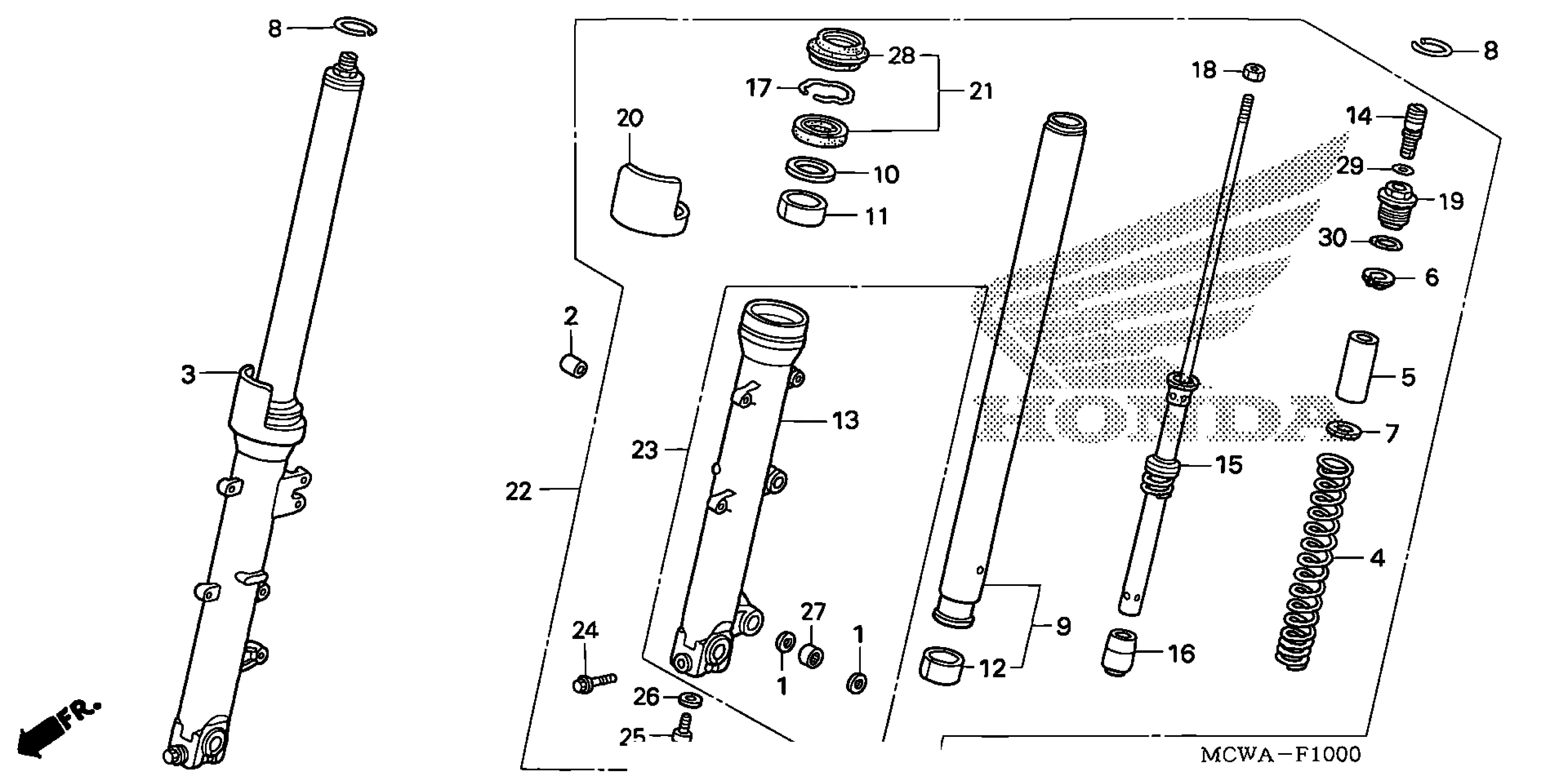

Honda VFR800AAC (07) INTERCEPTOR ABS, JPN, VIN# JH2RC464-7M900001 TO JH2RC464-7M909999 FRONT FORK Diagram

#

Description
Price

1

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.97

2

COLLAR, L. CALIPER BRACKET

45442-MAT-000

$4.94

3

FORK ASSY., R. FR. This part replaces 51400-MCW-D01.

51400-MCW-D02

Unavailable

4

SPRING, FR. FORK

51401-MCW-D01

$76.52

5

COLLAR, SPRING (L. SIDE)

51402-MV8-901

$17.70

6

SEAT, SPRING

51404-MR7-003

$11.28

7

SEAT, SPRING

51405-KA4-711

$6.23

8

RING, STOPPER

51405-MB4-003

$6.08

9

PIPE, FR. FORK

51410-MCW-D01

$393.82

10

RING, BACK-UP

51412-KA4-711

$9.65

11

BUSH, GUIDE

51414-MCF-003

$10.76

12

BUSH, SLIDER

51415-MBW-E11

$10.37

13

CASE, R. (LOWER)

51420-MCW-D01

$449.16

14

ADJUSTER, SPRING (SHOWA)

51422-KV3-831

$79.00

15

DAMPER, FR.

51430-MCW-D01

$340.26

16

PIECE, OIL LOCK (SHOWA)

51432-MS2-003

$30.07

17

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

18

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

19

BOLT, FR. FORK

51454-MCW-D01

$61.23

20

PROTECTOR, FORK PIPE

51460-MT3-611

$11.80

21

SEAL SET, FR. FORK

51490-MCF-000

$27.25

22

FORK ASSY., L. FR. This part replaces 51500-MCW-D01.

51500-MCW-D02

Unavailable

23

CASE, L. (LOWER)

51520-MCW-D01

Unavailable

24

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

25

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

26

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

27

BEARING, NEEDLE (14X20X20)

91051-MCW-D01

$14.51

28

DUST SEAL

91256-MCF-003

$14.23

29

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.28

29

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

30

O-RING (35.2X2.4)

91356-KA4-711

$3.76
