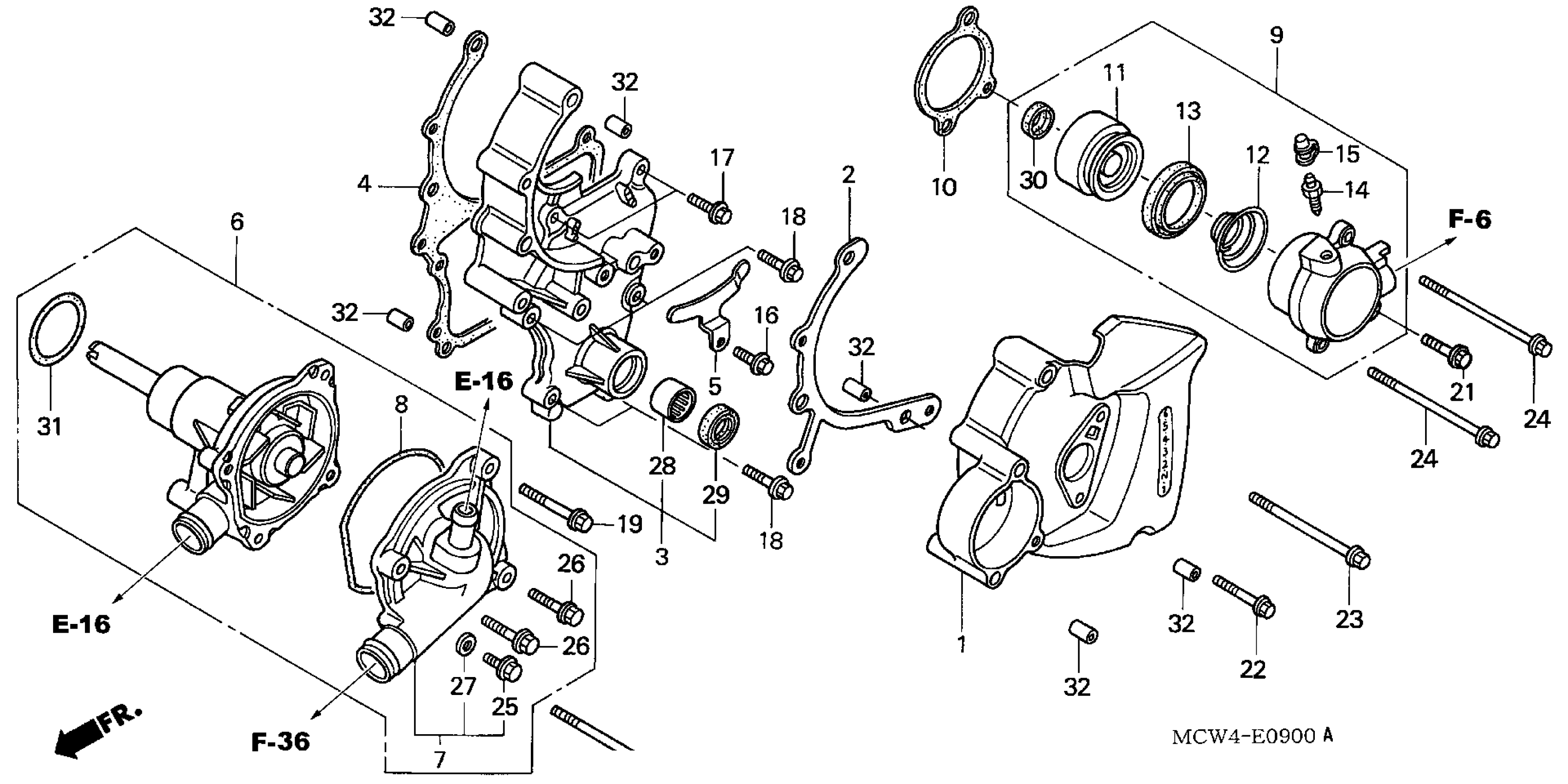

Honda VFR800AAC (05) INTERCEPTOR ABS, JPN, VIN# JH2RC464-5M700001 WATER PUMP Diagram

#

Description
Price

1

COVER ASSY., L.

11340-MBG-000

Unavailable

2

PLATE, DRIVE CHAIN GUIDE

11365-MCW-D00

$7.69

3

COVER, CHANGE

11630-MW4-000

Unavailable

4

GASKET, CHANGE COVER This part replaces 11632-MW4-000.

11632-MW4-020

$21.18

4

GASKET, CHANGE COVER This part replaces 11632-MW4-010.

11632-MW4-020

$21.18

4

GASKET, CHANGE COVER

11632-MW4-020

$21.18

5

PLATE, CHANGE COVER

11633-MW4-000

$11.18

6

WATER PUMP

19200-MCW-000

$221.76

7

COVER, WATER PUMP

19220-MCW-000

$99.78

8

GASKET, WATER PUMP COVER

19226-MCP-900

$3.63

9

CYLINDER ASSY., CLUTCH SLAVE

22860-MCW-000

$111.99

10

GASKET, SLAVE CYLINDER

22862-MGJ-D00

$4.75

10

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.75

11

PISTON, SLAVE CYLINDER

22863-MG9-003

$26.67

12

SPRING, SLAVE CYLINDER

22864-MT7-016

$5.93

13

CUP

22865-MG9-003

$11.56

14

SCREW, BLEEDER

22866-MF2-711

$4.88

15

CAP, BLEEDER

43353-461-771

$4.83

16

BOLT, FLANGE (6X12) (NSHF) (Honda Code 6982748)

90006-GHB-610

$1.78

17

BOLT, FLANGE (6X22) (NSHF)

90006-GHB-660

$1.66

18

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.88

19

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.78

20

BOLT, FLANGE (6X75) (NSHF)

90006-GHB-780

$1.88

21

BOLT, FLANGE (6X20)

90011-GHB-650

$1.66

22

BOLT, FLANGE (6X35)

90011-GHB-700

$1.66

23

BOLT, FLANGE (6X90)

90011-GHB-810

$2.71

24

BOLT, FLANGE (6X95)

90011-GHB-820

$2.51

25

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.43

26

BOLT, FLANGE (6X25)

90121-MV9-670

$2.75

27

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

28

BEARING, NEEDLE (14MM) (TOYO)

91101-121-691

$24.95

29

OIL SEAL (14X22X5)

91203-KK3-830

$3.65

30

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$3.87

31

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

Unavailable

32

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62
