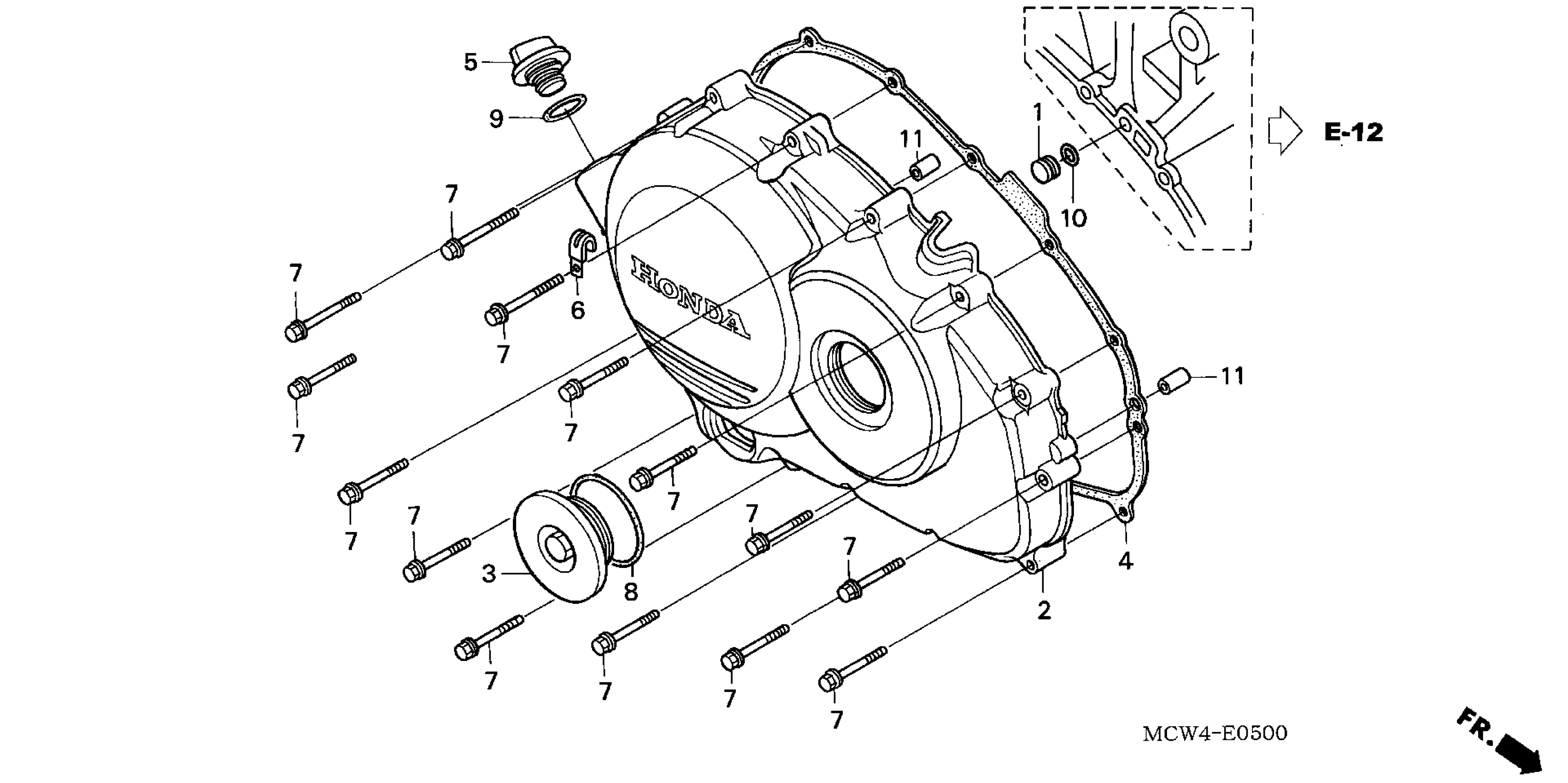

Honda VFR800AAC (05) INTERCEPTOR ABS, JPN, VIN# JH2RC464-5M700001 RIGHT CRANKCASE COVER Diagram

#

Description

Price

1

PLUG, SEALING

11103-MCW-000

$4.23

2

COVER, R.

11330-MW4-020

$380.05

3

CAP (45MM)

11332-MM5-000

$24.01

4

GASKET, R. COVER This part replaces 11394-MCW-000.

11394-MCW-020

$19.06

4

GASKET, R. COVER This part replaces 11394-MCW-010.

11394-MCW-020

$19.06

4

GASKET, R. COVER

11394-MCW-020

$19.06

5

CAP, OIL FILLER

15611-MB0-000

$9.93

6

CLIP, PULSER WIRE

32925-958-000

$2.92

7

BOLT, FLANGE (6X32) (NSHF)

90007-GHB-690

$1.87

8

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

9

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

9

O-RING (21.5X3.2)

91307-425-003

$2.59

10

O-RING (5.2X1.9)

91315-PN1-000

$2.33

11

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
