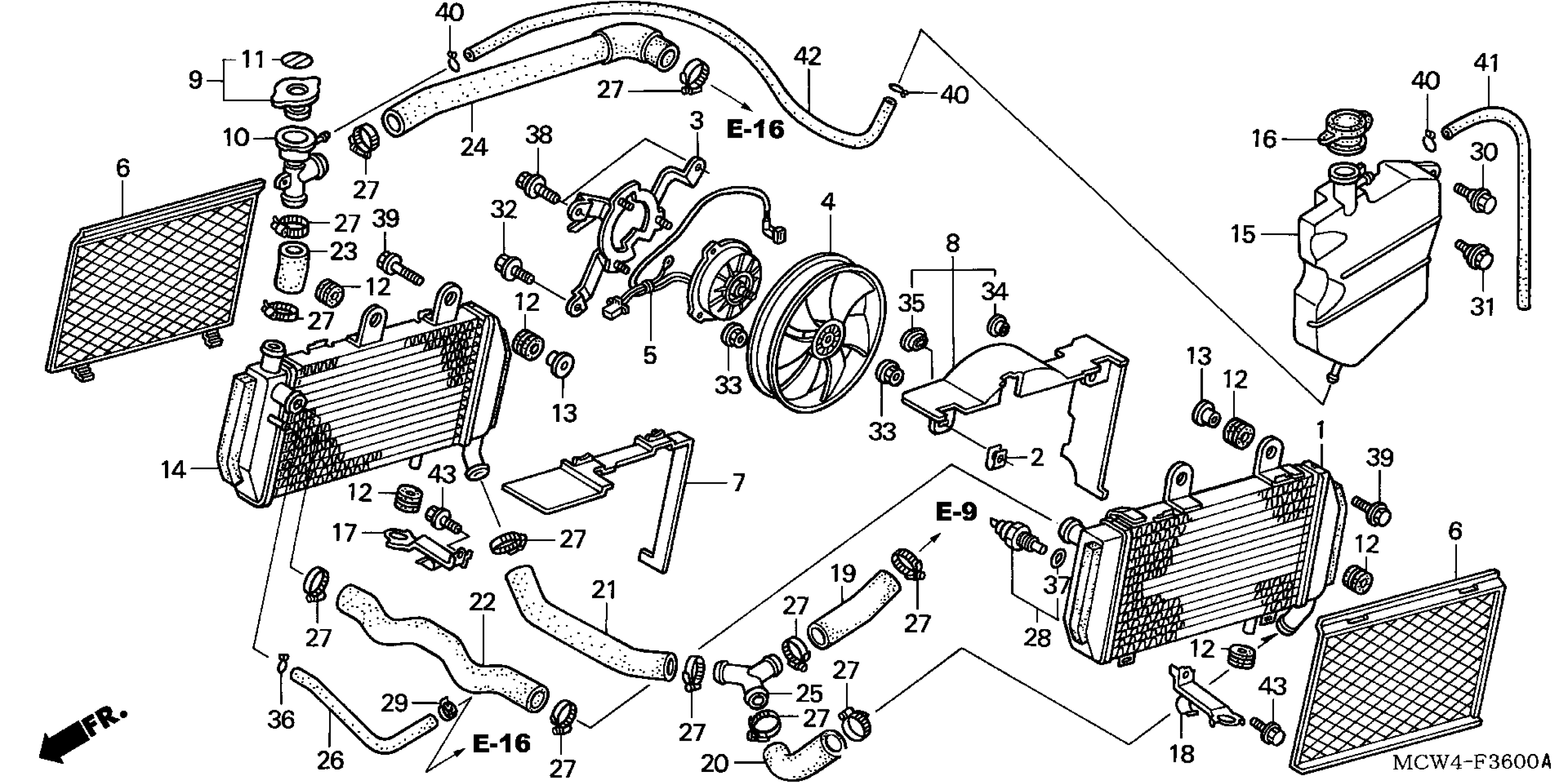

Honda VFR800AAC (05) INTERCEPTOR ABS, JPN, VIN# JH2RC464-5M700001 RADIATOR Diagram

#

Description
Price

1

RADIATOR, L.

19010-MCW-D01

Unavailable

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

SHROUD

19015-MCW-D01

$82.59

4

FAN, COOLING

19020-MCW-D01

$52.39

5

MOTOR ASSY., FAN This part replaces 19030-MCW-D00.

19030-MCW-D01

$296.49

5

MOTOR ASSY., FAN

19030-MCW-D01

$296.49

6

GRILLE, RADIATOR

19032-MCW-D00

$40.39

7

GUIDE, R. RADIATOR (INNER)

19034-MCW-D00

$35.82

8

GUIDE, L. RADIATOR (INNER)

19035-MCW-D00

$37.44

9

CAP, RADIATOR

19037-GEE-710

$30.28

10

NECK, FILLER

19038-MAL-601

$64.28

11

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

12

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

13

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

13

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

14

RADIATOR, R.

19060-MCW-D01

Unavailable

15

TANK, RADIATOR RESERVE

19101-MCW-D00

$42.49

16

CAP, RESERVE TANK

19104-MB0-700

$12.16

17

STAY, R. RADIATOR (LOWER)

19132-MCW-D00

$9.23

18

STAY, L. RADIATOR (LOWER)

19135-MCW-D00

$9.23

19

HOSE, RADIATOR (LOWER) This part replaces 19501-MCW-D00.

19501-MCW-D01

$21.28

19

HOSE, RADIATOR (LOWER)

19501-MCW-D01

$21.28

20

HOSE, L. RADIATOR (LOWER)

19502-MCW-D00

$12.98

21

HOSE, R. RADIATOR (LOWER)

19503-MCW-D00

$25.82

22

HOSE, RADIATOR MIDDLE (UPPER)

19504-MCW-D00

$32.54

23

HOSE, RADIATOR (UPPER)

19505-MBG-000

$11.87

24

HOSE, R. RADIATOR (UPPER)

19506-MCW-D00

$42.38

25

JOINT, THREE WAY

19507-MBG-000

$33.98

26

HOSE, RADIATOR BREATHER

19508-MBG-000

$22.03

27

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

28

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

28

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$71.91

29

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

30

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

31

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

32

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

33

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

34

WASHER (6X9)

90513-323-000

$1.84

34

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

35

WASHER (6X9)

90513-323-000

$1.84

35

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

36

CLIP, TUBE

90651-KV0-700

$4.39

37

O-RING (13.5X1.4)

91307-PH7-660

$2.83

37

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

38

BOLT-WASHER (6X20)

93401-06020-08

$1.87

39

BOLT-WASHER (6X28)

93404-06028-07

$1.49

40

CLIP, TUBE (B10)

95002-02100

$1.90

41

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

42

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

43

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
