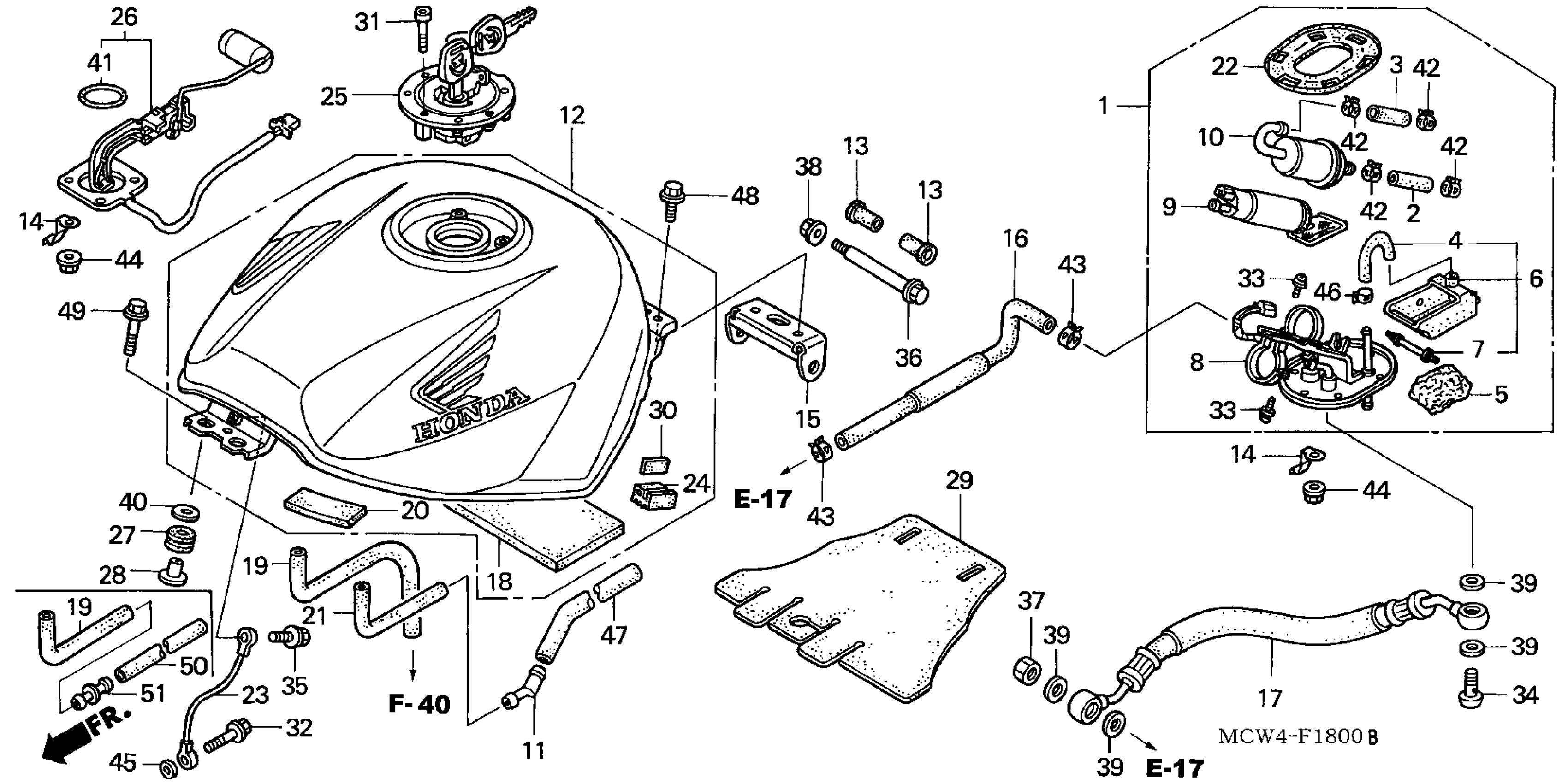

Honda VFR800AAC (05) INTERCEPTOR ABS, JPN, VIN# JH2RC464-5M700001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MCW-D02

$637.56

2

HOSE, PUMP

16711-MBG-010

$5.31

3

HOSE B, FUEL PUMP

16712-MBG-010

$9.89

4

TUBE, FUEL PUMP RETURN

16713-MBG-010

$3.71

5

FILTER, FUEL RETURN

16714-MBG-000

$8.42

6

RUBBER SET, FUEL PUMP UNIT

16716-MBG-305

$21.33

7

STOPPER, FILTER

16717-MBG-000

$4.49

10

FILTER, FUEL

16900-MBG-013

$63.89

11

JOINT, BREATHER TUBE

17359-419-670

$1.90

12

TANK SET, FUEL (TYPE1) (WL)

17500-MCW-D60ZA

Unavailable

12

TANK SET, FUEL (TYPE1) (WL)

17500-MCW-D80ZA

Unavailable

13

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.20

14

CLAMP A, TUBE

17522-MCW-D00

$1.70

15

STAY, RR. FUEL TANK SETTING

17524-MCW-D00

Unavailable

16

HOSE, FUEL RETURN

17525-MCW-D01

Unavailable

17

HOSE, FUEL FEED

17528-MCW-D01

$122.63

18

MAT B, FUEL TANK

17542-MCW-D00

$13.93

19

TUBE, DRAIN

17543-MBG-000

$21.24

20

MAT C, FUEL TANK

17543-MCW-D00

$3.68

21

TUBE, BREATHER

17544-MCS-G00

$6.34

21

TUBE, BREATHER This part replaces 17544-MCW-L00.

17544-MCS-G00

$6.34

22

GASKET, BASE

17574-MN5-000

$9.31

23

CABLE, FUEL TANK STOPPER

17575-MCW-D00

$9.03

24

CUSHION, FUEL TANK

17611-ML7-000

$7.85

25

CAP, FUEL FILLER This part replaces 17620-MAS-E02.

17620-MAS-E04

$186.96

25

CAP, FUEL FILLER This part replaces 17620-MAS-E03.

17620-MAS-E04

$186.96

25

CAP, FUEL FILLER

17620-MAS-E04

$186.96

26

FUEL UNIT SET

37080-MCW-D00

$109.76

27

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

$3.13

28

COLLAR, SETTING

61104-422-000

$6.60

29

RUBBER, RR. HEAT GUARD

80115-MCW-D00

Unavailable

30

RUBBER, PROTECTOR

81214-MW0-300

$4.96

31

BOLT, SOCKET (4X21)

90074-MT4-000

$2.91

32

BOLT, FLANGE (6X20)

90104-GF6-000

$3.01

33

SCREW-WASHER (4X10)

90110-MCH-000

$0.97

34

BOLT, BANJO (12MM)

90108-MBG-000

$9.60

35

BOLT, FLANGE (6X14)

90115-GCR-000

$2.24

36

BOLT, TANK HINGE

90135-MCW-D00

$3.57

37

NUT A, SEALING (12MM)

90201-PD1-000

$4.66

38

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

39

WASHER, SEALING (12MM)

90428-PD6-003

$4.96

40

WASHER, PLAIN (6MM)

90525-428-900

$1.87

41

O-RING (39.5X5)

91305-443-740

$4.28

42

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$8.27

43

CLAMP, FUEL HOSE (D10.5)

91406-MCW-D01

$2.07

44

NUT, FLANGE (6MM)

94050-06080

$0.60

45

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

45

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

45

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

46

CLAMP, TUBE (D8.5)

95002-40850-04

$2.34

47

BULK HOSE, VACUUM (8X1000) (8X950) (USE P/N 95005-80001-50M)

95005-80001-50M

Unavailable

48

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

49

BOLT, FLANGE (6X28)

96001-06028-07

$1.40

51

JOINT, BREATHER TUBE

17359-419-670

$1.90
