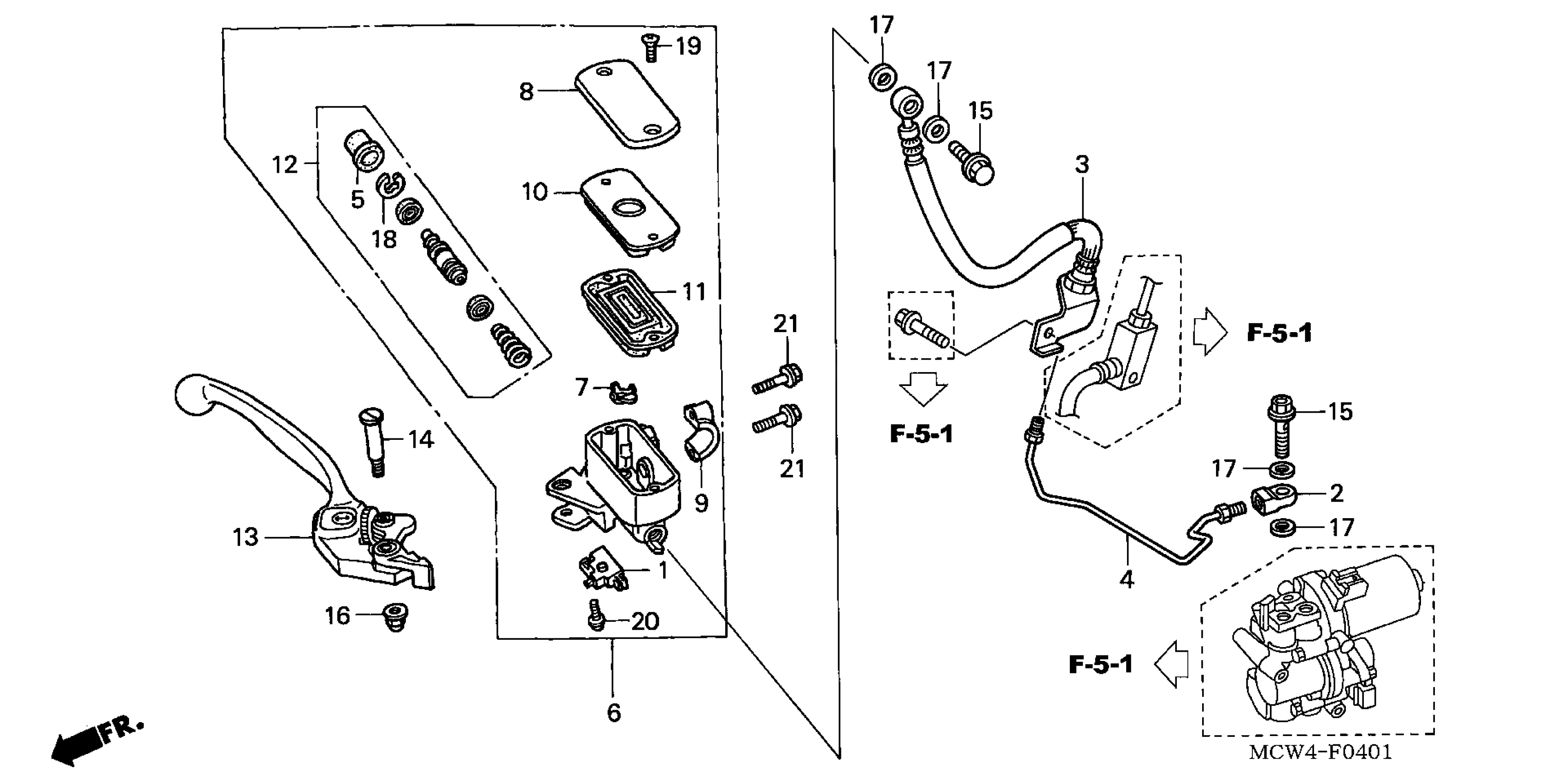

Honda VFR800AAC (05) INTERCEPTOR ABS, JPN, VIN# JH2RC464-5M700001 FRONT BRAKE MASTER CYLINDER (ABS) Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

JOINT, MASTER CYLINDER PIPE (A)

43321-MY4-003

$39.13

HOSE, FR. MASTER CYLINDER JOINT

45124-MCW-D11

$42.07

PIPE, FR. MASTER CYLINDER JOINT

45135-MCW-D10

$40.82

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MAJ-G01

$304.72

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER ASSY., R. HANDLE

53170-MBW-006

$43.60

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
