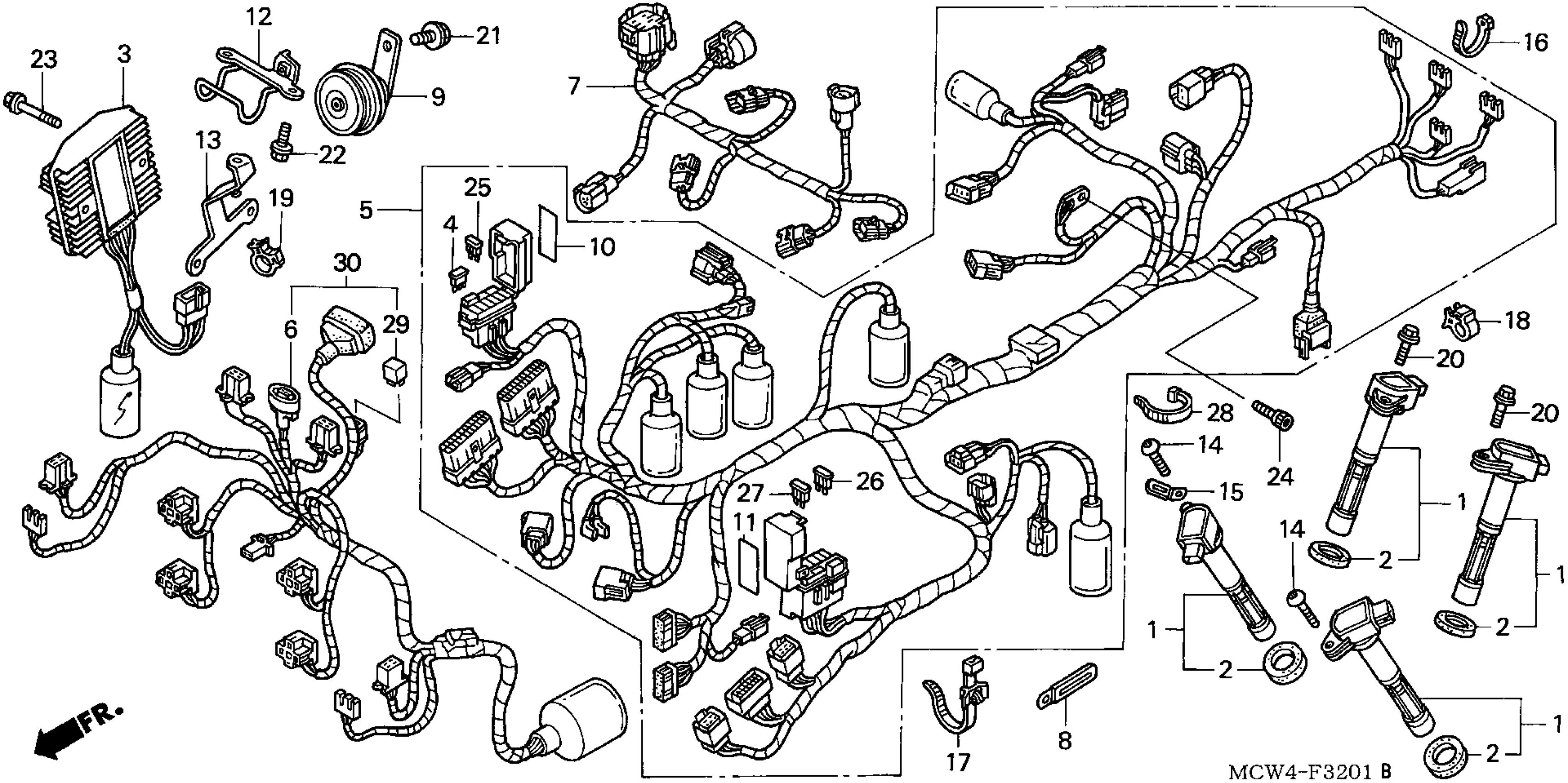

Honda VFR800AAC (04) INTERCEPTOR ABS, JPN, VIN# JH2RC464-4M600001 WIRE HARNESS (ABS) Diagram

COIL, PLUG HOLE This part replaces 30520-PNA-007.

30520-RRA-S01

$105.02

COIL, PLUG HOLE This part replaces 30520-RRA-007.

30520-RRA-S01

$105.02

SEAL, PLUG HOLE (Honda Code 6234660)

30522-PFB-007

$8.53

RECTIFIER ASSY., REGULATOR

31600-MCW-D61

$237.61

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MCW-L70

$609.48

SUB-HARNESS, INJECTOR

32103-MCW-D00

$106.49

CLIP, WIRE HARNESS

32170-443-850

$5.05

HORN (HIGH)

38110-MCW-D01

$38.54

LABEL, FUSE

38215-MCW-D10

Unavailable

LABEL, FUSE

38216-MCW-D10

$4.54

STAY, HORN

50155-MCW-D00

$12.93

STAY, R. FR. SIDE COWL

64514-MCW-D00

$9.31

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.42

CLIP (4X50)

90601-KJ9-000

$3.08

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

STRAP, CABLE

90672-MCW-000

$2.30

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49

BOLT, SOCKET (6X12)

96600-06012-08

$1.74

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

RECTIFIER, SILICON

31700-MM8-610

$24.98

SUB-HARNESS, FR.

32102-MCW-C60

$121.36
