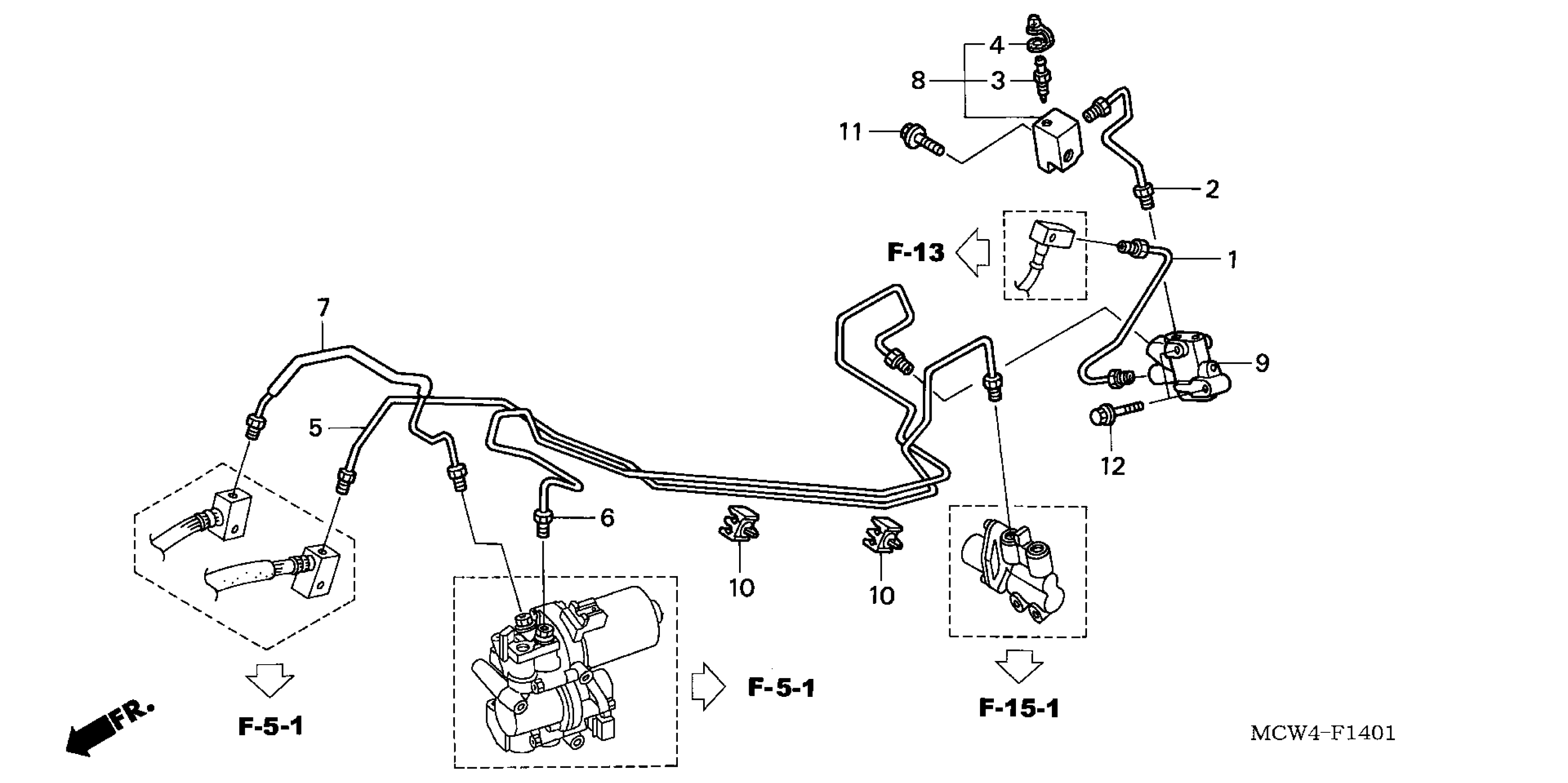

Honda VFR800AAC (04) INTERCEPTOR ABS, JPN, VIN# JH2RC464-4M600001 PROPORTIONING CONTROL VALVE (ABS) Diagram

#

Description

Price

1

PIPE, RR. MASTER CYLINDER JOINT

43315-MCW-D00

$23.92

2

PIPE, PCV JOINT (RR)

43316-MCW-D10

$26.90

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

MAIN PIPE, FR. BRAKE

45132-MCW-D00

$86.87

6

SUB-PIPE, FR. BRAKE

45133-MCW-D10

$102.97

7

PIPE, FR. ABS UNIT JOINT

45134-MCW-D10

$47.61

8

JOINT ASSY., BRAKE PIPE

45160-MCW-D10

$17.62

9

VALVE ASSY., PROPORTIONING CONTROL This part replaces 46400-MCW-D01.

46400-MCW-D02

$106.30

9

VALVE ASSY., PROPORTIONING CONTROL

46400-MCW-D02

$106.30

10

CLAMP, BRAKE PIPE

90651-MAT-000

$3.48

11

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

12

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80
