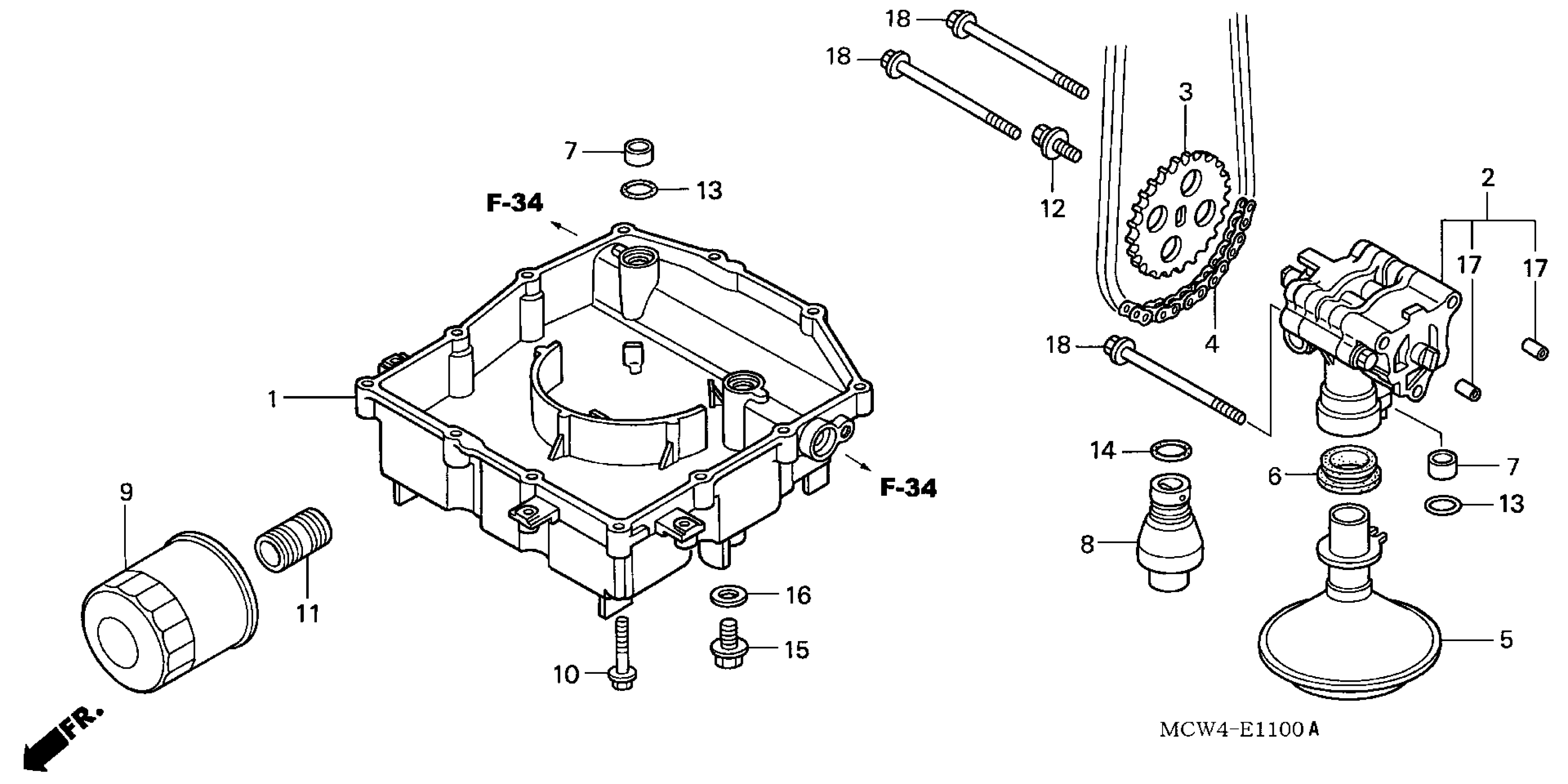

Honda VFR800AAC (04) INTERCEPTOR ABS, JPN, VIN# JH2RC464-4M600001 OIL PUMP Diagram

PAN, OIL

11210-MBG-010

$177.51

PUMP ASSY., OIL

15100-MCW-000

$221.38

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MZ5-000

$38.52

CHAIN, OIL PUMP (48L)

15140-ML7-003

$35.67

STRAINER, OIL

15150-MBG-000

$39.75

GASKET, OIL STRAINER

15154-MM5-000

$6.60

COLLAR, O-RING

15155-300-000

$3.47

VALVE ASSY., RELIEF

15220-MZ5-000

$35.79

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-000.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.92

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X95)

95701-06095-08

$2.79
