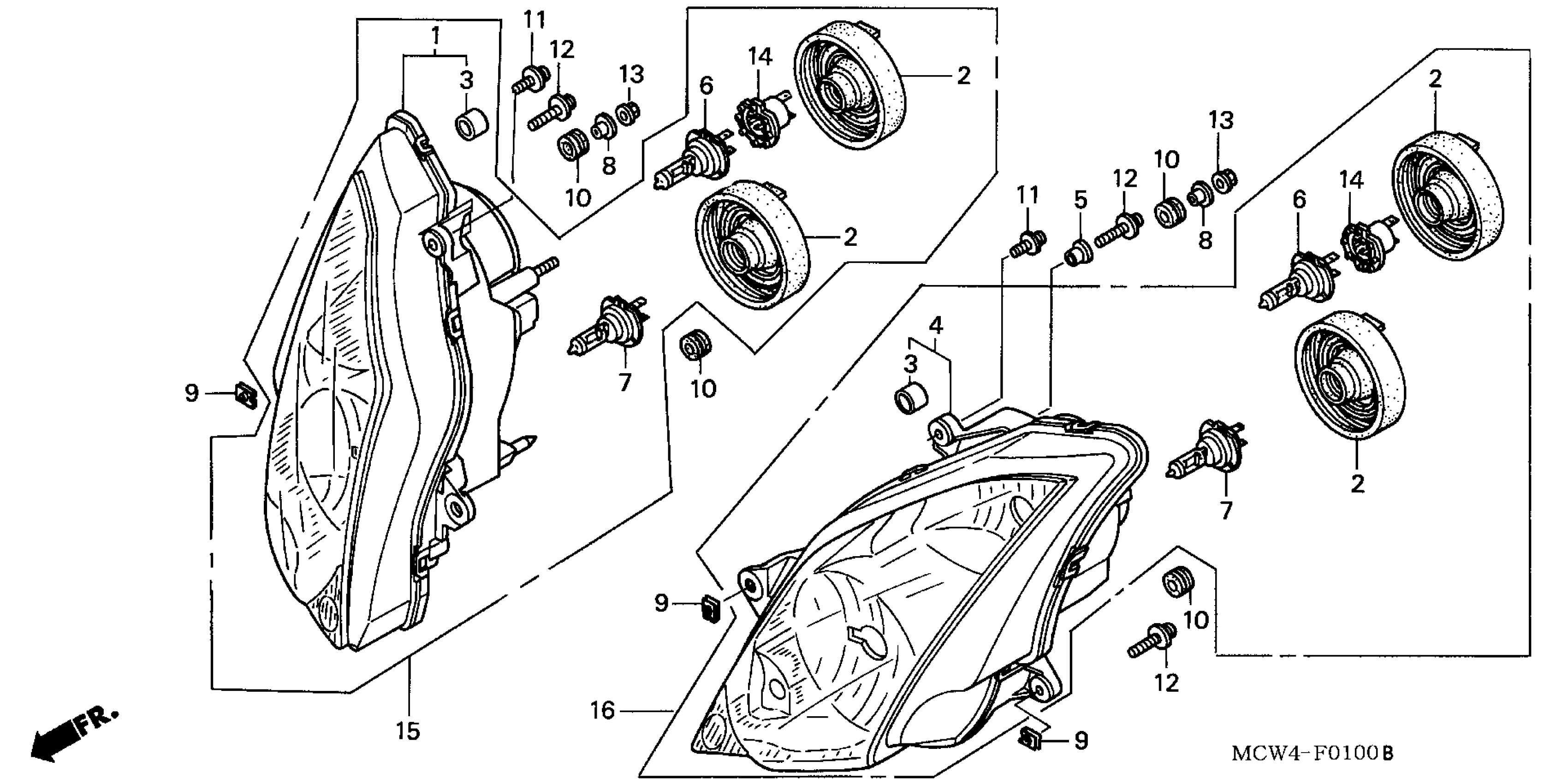

Honda VFR800AAC (04) INTERCEPTOR ABS, JPN, VIN# JH2RC464-4M600001 HEADLIGHT Diagram

HEADLIGHT UNIT, R.

33102-MCW-A01

$335.38

COVER, RUBBER

33112-KPB-003

$12.16

PIPE, CP

33113-MBW-D21

$2.44

HEADLIGHT UNIT, L.

33152-MCW-A01

$320.97

COLLAR, TAILLIGHT

33713-MN1-651

$4.88

BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)

34901-MAT-611

$25.16

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$34.13

COLLAR, CHAIN GUARD

52159-KB7-000

$6.05

NUT, CLIP (5MM)

90677-GR1-003

$4.09

RUBBER, CONTROL BOX

90852-898-000

Unavailable

SCREW-WASHER (5X20)

93894-05020-07

$1.06

SCREW-WASHER (5X25)

93894-05025-07

$1.29

NUT, FLANGE (6MM)

94050-06000

$0.60

SOCKET, HEADLIGHT

33130-MAT-611

$15.25

HEADLIGHT ASSY., R.

33100-MCW-A01

Unavailable

HEADLIGHT ASSY., L.

33150-MCW-A01

$358.07
