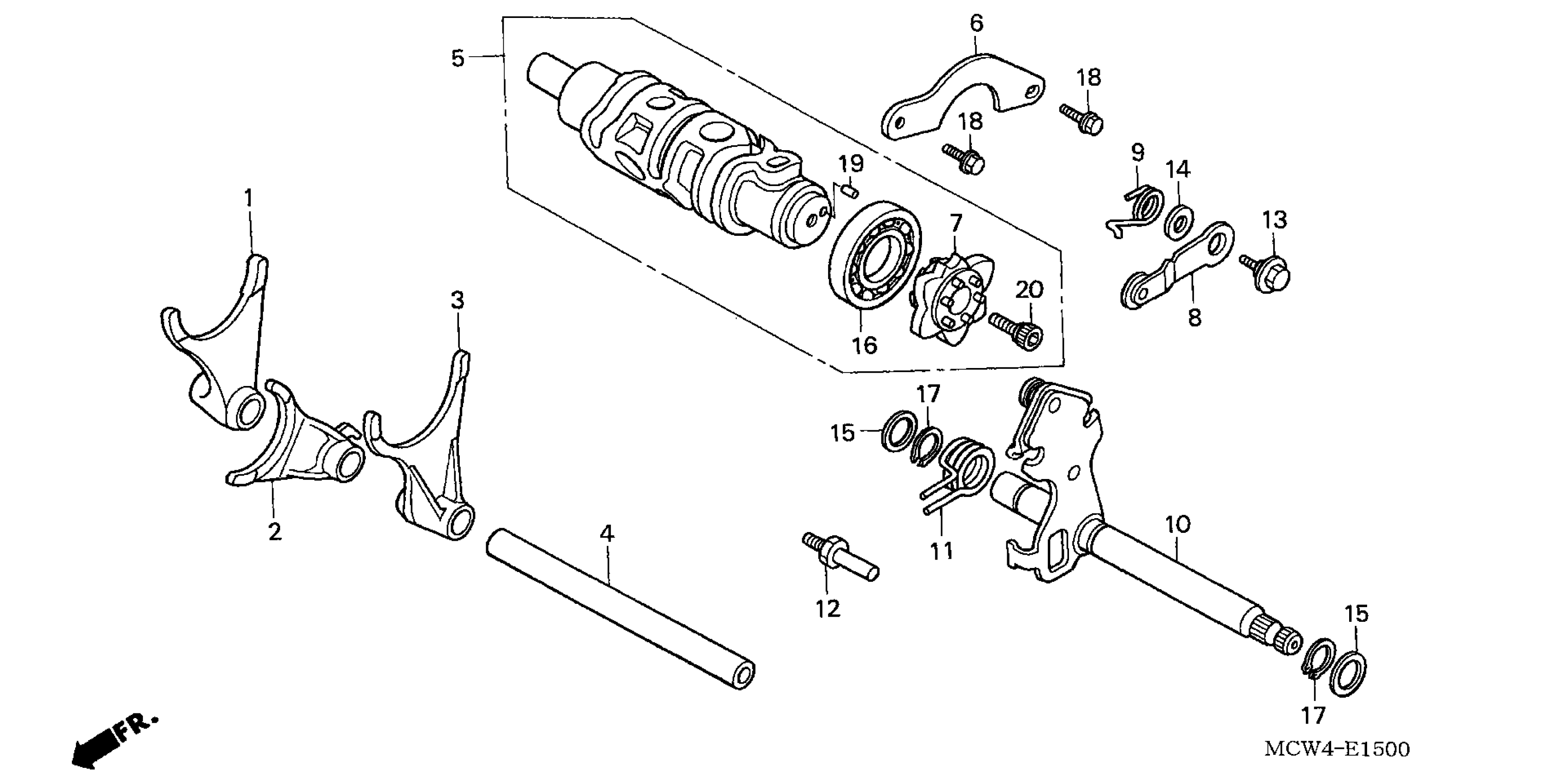

Honda VFR800AAC (04) INTERCEPTOR ABS, JPN, VIN# JH2RC464-4M600001 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-MBG-000

$55.10

FORK, CENTER GEARSHIFT

24212-MBG-000

$55.10

FORK, L. GEARSHIFT

24213-MCW-000

$53.24

SHAFT, GEARSHIFT FORK

24261-MW4-000

$45.93

DRUM, GEARSHIFT

24310-MBG-000

Unavailable

PLATE, DRUM SETTING

24315-KE8-000

$4.81

CENTER, SHIFT DRUM

24315-MW0-791

$35.66

STOPPER, GEARSHIFT DRUM

24430-GB2-710

$11.57

SPRING, DRUM STOPPER

24435-MW4-000

$4.59

SPINDLE, GEARSHIFT

24610-MBG-000

$77.18

SPRING, SHIFT RETURN

24651-MBB-000

$5.91

PIN, SHIFT RETURN SPRING

24652-035-000

$3.83

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

WASHER, DRUM STOPPER

90417-360-000

$1.60

WASHER (14MM)

90451-155-000

$3.62

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$13.78

CIRCLIP (OUTER) (14MM)

94510-14000

$0.94

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

ROLLER (4X8)

96220-40080

$0.47

BOLT, SOCKET (8X20)

96600-08020-10

$1.97
