Description

Price

1

GUARD, AIR CLEANER

19036-MCW-D00

$42.00

2

WASHER A, FR. DISK

45224-KV3-951

$3.21

3

FRAME SET

50010-MCW-L10

Unavailable

5

RAIL SET, SEAT This part replaces 50200-MCW-D11.

50200-MCW-D12

$388.16

5

RAIL SET, SEAT

50200-MCW-D12

$388.16

6

COLLAR, ENGINE HANGER

50355-MBG-000

$10.77

7

COLLAR, ENGINE HANGER

50356-MBG-000

$30.62

8

COLLAR, ENGINE HANGER

50357-MBG-000

$18.44

9

RUBBER, SINGLE SEAT COWL

77226-MZ7-300

$6.75

10

RUBBER, COVER SETTING (LOWER)

83523-MR5-870

$2.92

11

BOLT, FLANGE (10X115)

90018-399-010

$7.51

12

BOLT, FLANGE (10X45)

90101-MBW-000

$3.89

13

BOLT, FLANGE (12X357)

90104-MCW-D00

$19.89

14

BOLT, SPECIAL (10X47)

90110-MAT-000

$9.80

15

BOLT, FLANGE (10X100)

90155-MCW-D00

$4.93

16

BOLT, FLANGE (10X55)

90162-MCJ-000

$2.90

17

NUT, FLANGE (12MM)

90367-SL0-000

$4.26

18

WASHER (10MM)

90465-MM9-000

$3.54

19

WASHER, PLAIN (10MM)

90502-MM8-610

$2.92

20

NUT, HEX. (10MM)

94001-10000-0S

$1.49

21

NUT, FLANGE (10MM)

94050-10000

$1.59

22

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

23

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99

24

RUBBER, STOPPER

47117-196-000

$2.67

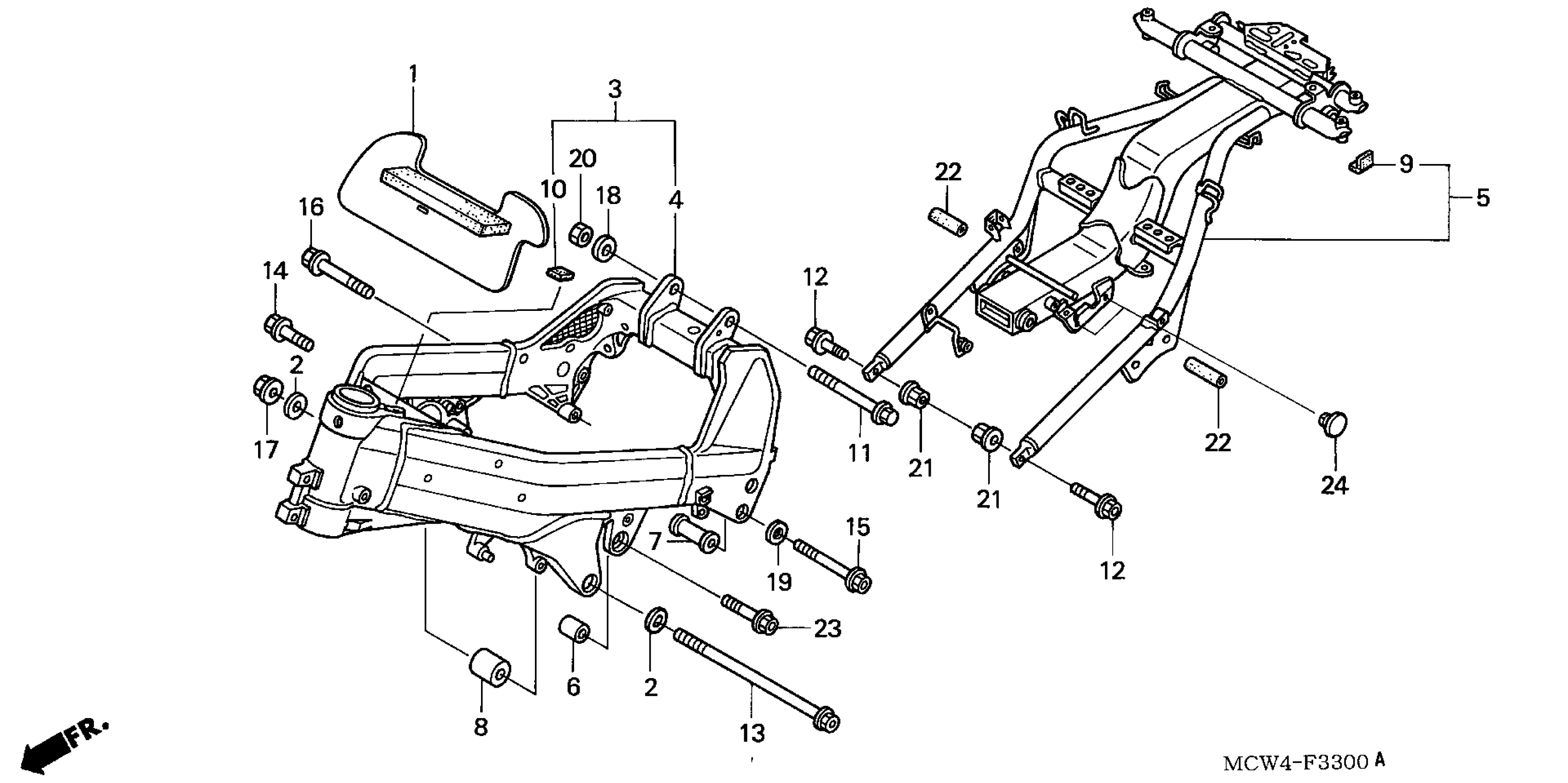

Honda VFR800AAC (04) INTERCEPTOR ABS, JPN, VIN# JH2RC464-4M600001 FRAME Diagram

GUARD, AIR CLEANER

WASHER A, FR. DISK

FRAME SET

RAIL SET, SEAT This part replaces 50200-MCW-D11.

RAIL SET, SEAT

COLLAR, ENGINE HANGER

COLLAR, ENGINE HANGER

COLLAR, ENGINE HANGER

RUBBER, SINGLE SEAT COWL

RUBBER, COVER SETTING (LOWER)

BOLT, FLANGE (10X115)

BOLT, FLANGE (10X45)

BOLT, FLANGE (12X357)

BOLT, SPECIAL (10X47)

BOLT, FLANGE (10X100)

BOLT, FLANGE (10X55)

NUT, FLANGE (12MM)

WASHER (10MM)

WASHER, PLAIN (10MM)

NUT, HEX. (10MM)

NUT, FLANGE (10MM)

BULK HOSE (7.3X1000)

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

RUBBER, STOPPER
