Description

Price

1

CRANKCASE SET

11000-MCW-000

Unavailable

2

COLLAR, PIVOT

11105-MBG-000

$20.02

3

PIPE, OIL PASSAGE

11639-MCW-000

$50.84

4

ORIFICE (1.2MM)

15515-KT8-000

$7.72

5

JET, OIL (0.7MM)

15516-MBG-000

$13.52

6

VALVE ASSY., SPOOL This part replaces 15810-MCW-003.

15810-MCW-013

$174.33

6

VALVE ASSY., SPOOL

15810-MCW-013

$174.33

7

FILTER ASSY., SPOOL VALVE This part replaces 15825-P0A-005.

15825-P0A-015

$26.85

7

FILTER ASSY., SPOOL VALVE

15825-P0A-015

$26.85

8

SUB-WIRE, ENGINE

32109-MCW-D00

$52.98

9

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

10

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

11

BOLT, FLANGE (9X90)

90014-MBG-003

$13.13

12

BOLT, FLANGE (9X105)

90016-MBG-003

$13.13

13

BOLT, FLANGE (7X30)

90017-MBG-000

$2.61

14

BOLT, FLANGE (6X85)

90017-MW4-000

$4.95

15

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

16

WASHER, OIL BOLT

90545-300-000

$3.99

17

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

18

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

19

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

20

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

21

PIN B, DOWEL (8X14)

94302-08140

$2.25

22

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

24

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

25

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06

26

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

27

BOLT, FLANGE (6X65) (Honda Code 2552545)

95701-06065-00

$1.51

28

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

29

BOLT, FLANGE (10X55)

95701-10055-00

$4.18

30

BOLT, FLANGE (10X65)

95701-10065-00

$3.13

31

BOLT, FLANGE (10X75)

95701-10075-00

$2.44

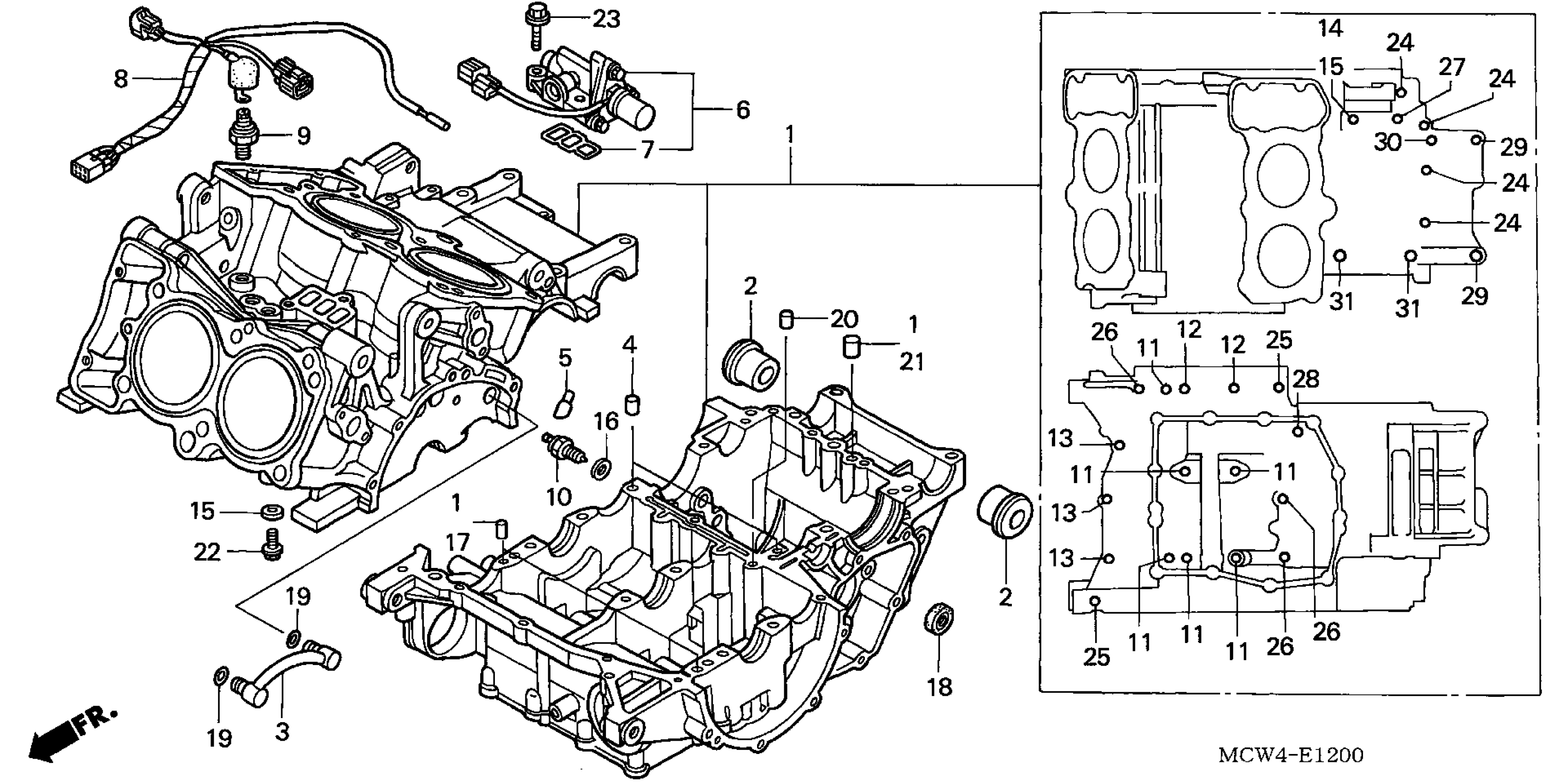

Honda VFR800AAC (04) INTERCEPTOR ABS, JPN, VIN# JH2RC464-4M600001 CRANKCASE Diagram
