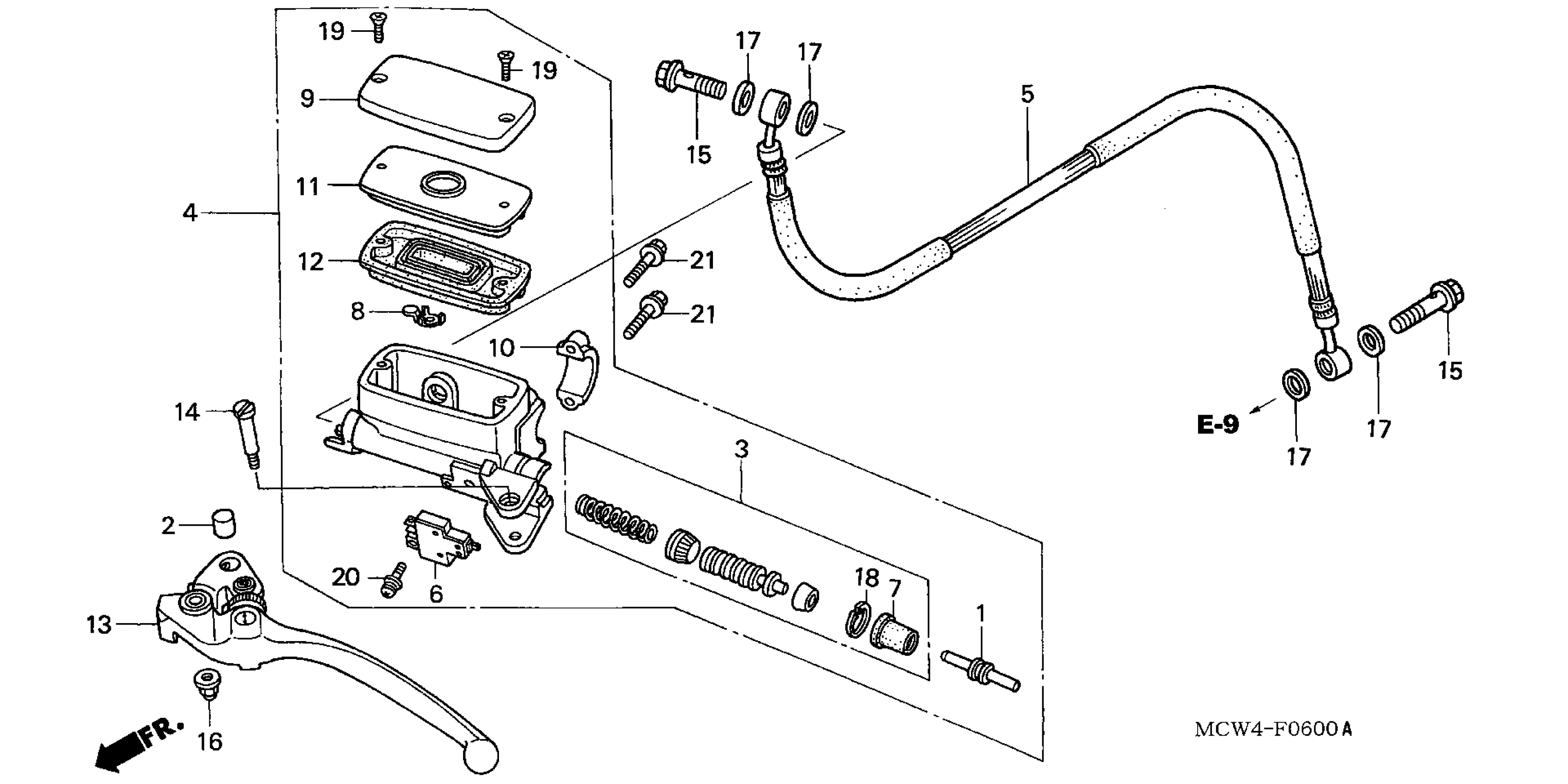

Honda VFR800AAC (04) INTERCEPTOR ABS, JPN, VIN# JH2RC464-4M600001 CLUTCH MASTER CYLINDER Diagram

ROD, PUSH

22884-MAT-E01

$17.78

BUSH

22885-MB0-006

$11.88

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$52.37

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MAT-E01

$368.50

HOSE, CLUTCH

22900-MCW-D01

Unavailable

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

BOOT

45504-MAT-E01

$9.79

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

LEVER ASSY., L. HANDLE

53180-MZ1-792

$53.01

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

NUT, CAP (6MM)

90201-415-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
