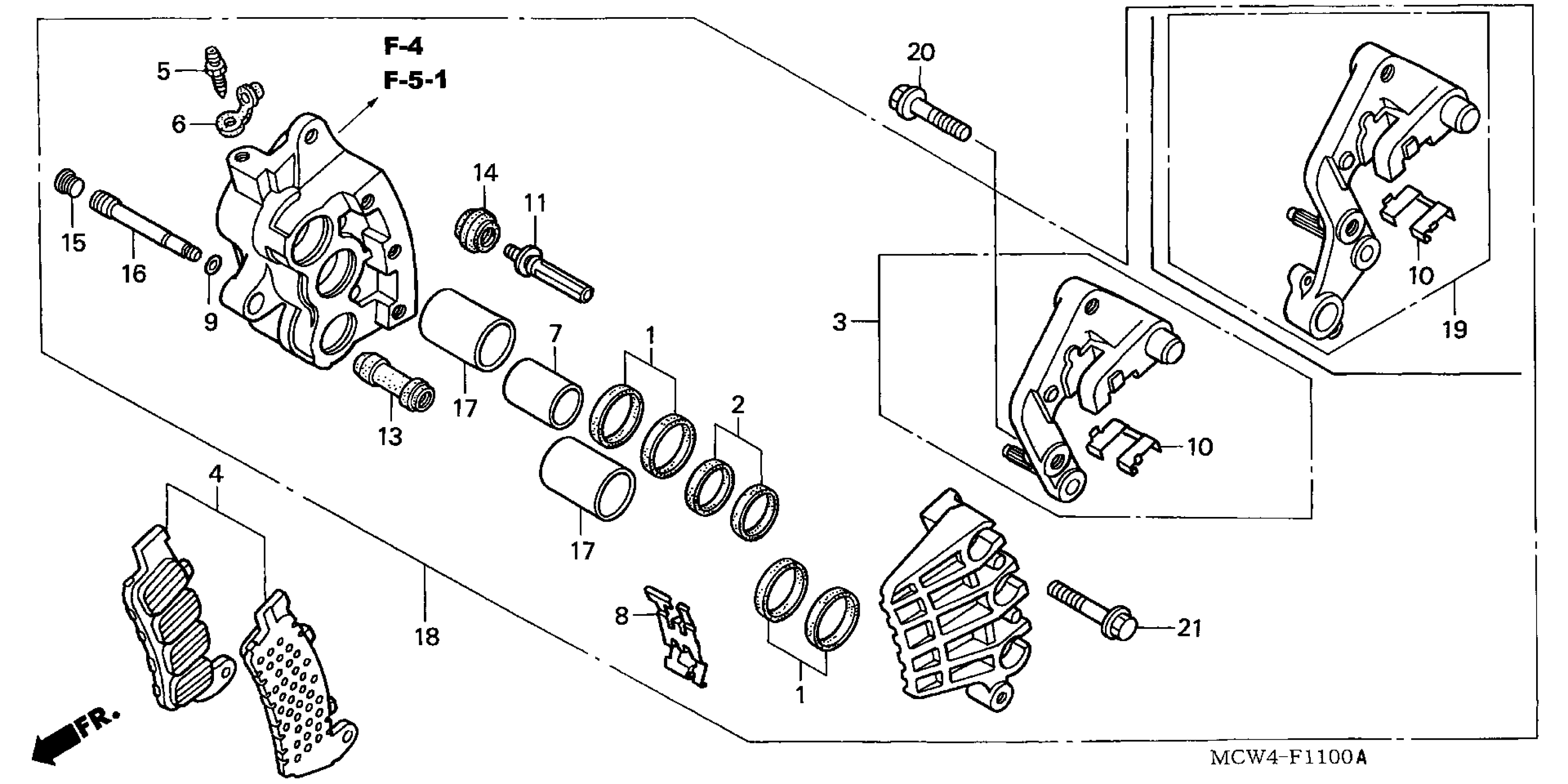

Honda VFR800AAC (02) INTERCEPTOR ABS, JPN, VIN# JH2RC464-2M400001 TO JH2RC464-2M499999 RIGHT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$11.41

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$12.55

PAD SET, FR.

06456-MCC-006

$61.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON A (22X27)

45107-MAJ-G41

$39.18

SPRING, PAD

45108-MZ2-016

$8.55

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MCC-006

$2.89

PIN, HANGER

45215-MAJ-G41

$6.45

PISTON B (25X35)

45217-MAJ-G41

$36.94

CALIPER SUB-ASSY., R. FR.

45250-MCW-D11

$530.46

BRACKET SUB-ASSY., R. FR.

45290-MCW-D11

Unavailable

BOLT, FLANGE (8X32)

90107-MT3-003

$4.49

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.46
