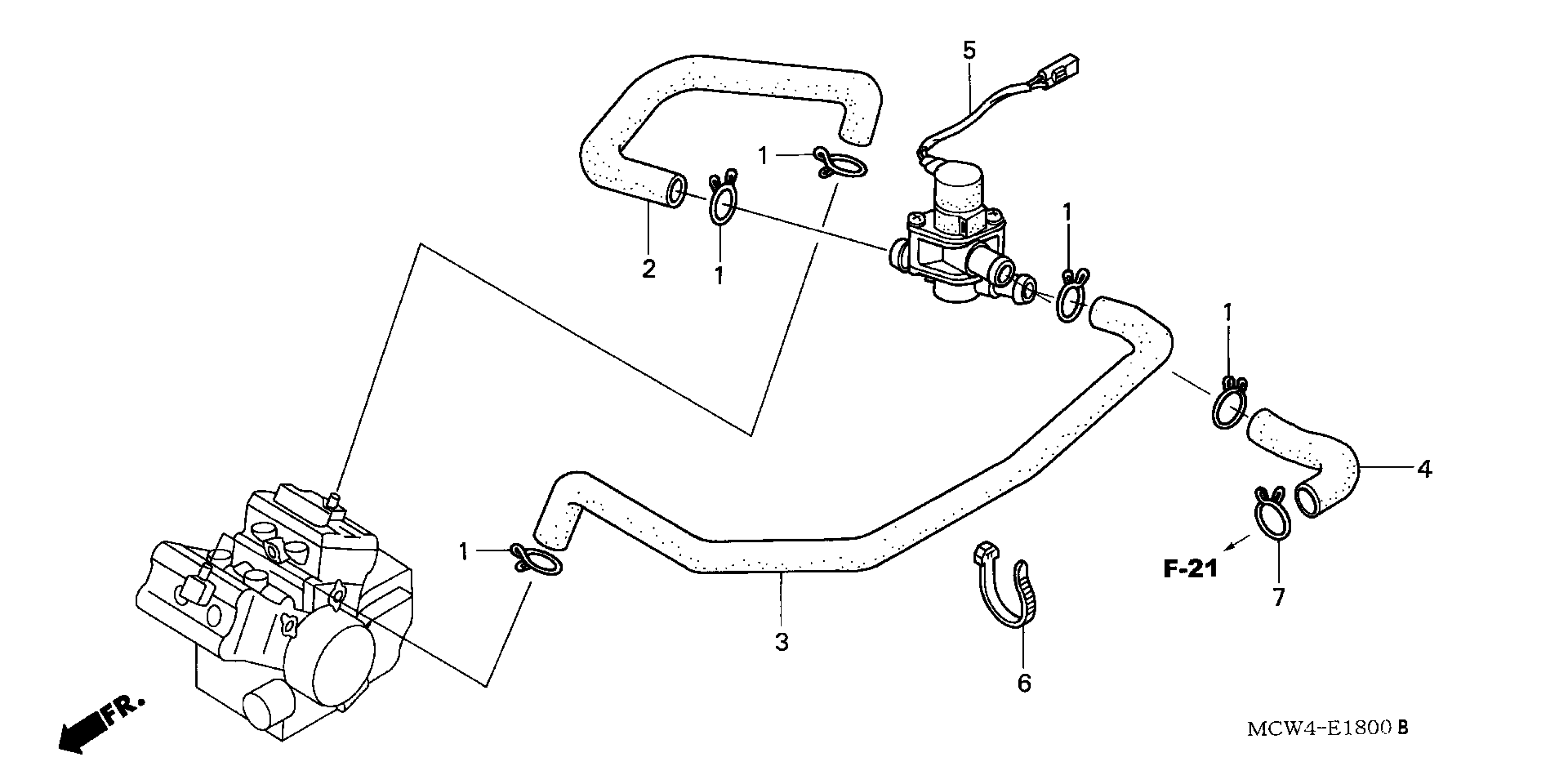

Honda VFR800AAC (02) INTERCEPTOR ABS, JPN, VIN# JH2RC464-2M400001 TO JH2RC464-2M499999 AIR INJECTION CONTROL VALVE Diagram

#

Description

Price

1

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

2

TUBE A, AIR INJECTION CONTROL VALVE

18651-MCW-D00

$10.67

3

TUBE B, AIR INJECTION CONTROL VALVE

18652-MCW-D00

$20.23

4

TUBE C, AIR INJECTION CONTROL VALVE

18653-MCW-D00

$3.53

5

VALVE ASSY., EX. AIR INJECTION

36450-MCW-D00

$111.00

6

BAND, WIRE HARNESS (Honda Code 1746650)

90650-MA6-720

$3.86

7

CLIP, BREATHER TUBE

17554-MB0-000

$2.65
