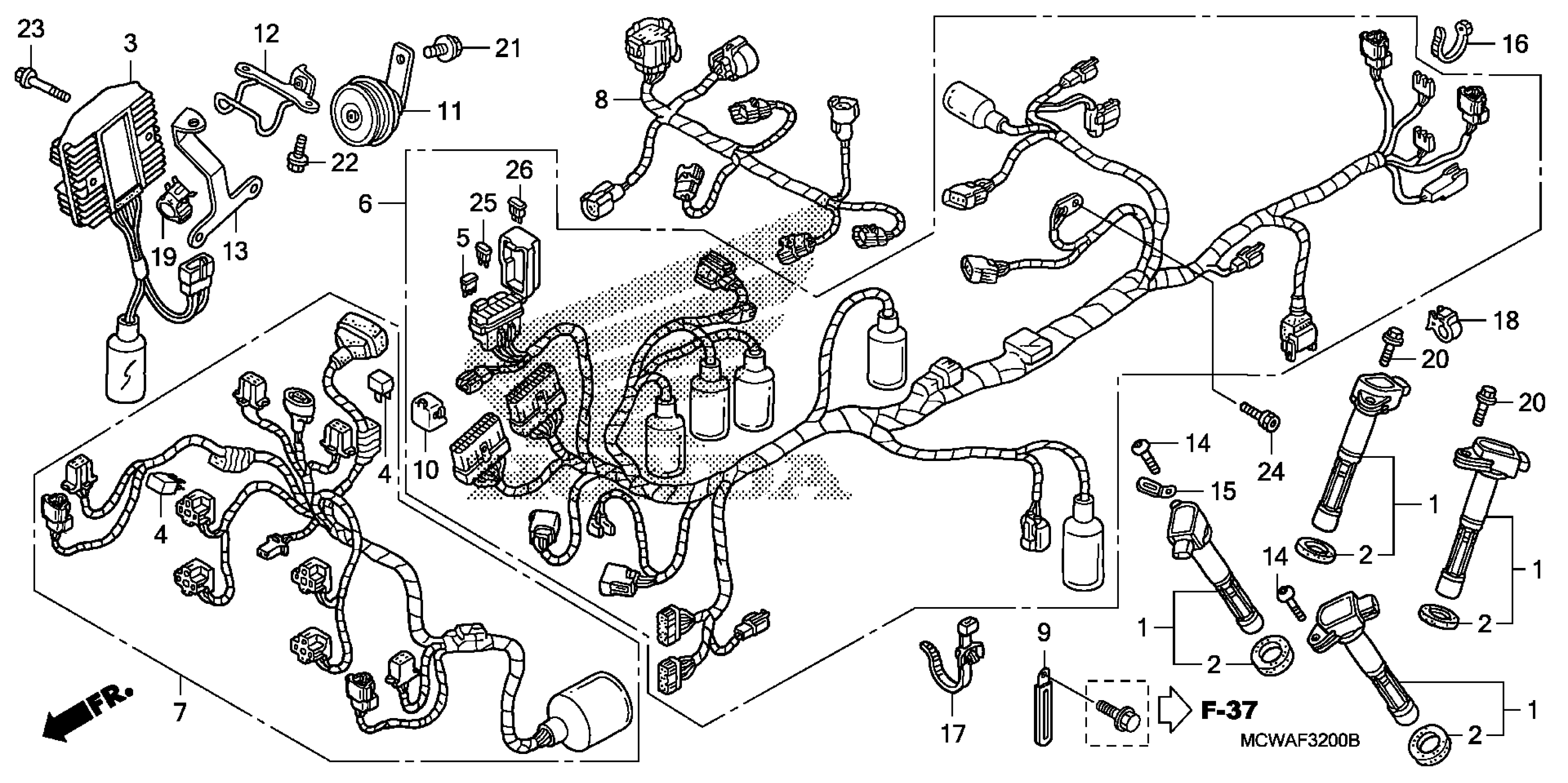

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, PLUG HOLE

30520-MCW-H30

$113.20

3

RECTIFIER ASSY., REGULATOR

31600-MCW-D61

$237.61

4

RECTIFIER, SILICON

31700-MM8-610

$24.98

5

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

6

WIRE HARNESS

32100-MCW-K60

Unavailable

7

SUB-HARNESS, FR.

32102-MCW-K60

Unavailable

8

SUB-HARNESS, INJECTOR

32103-MCW-D00

$106.49

9

CLIP, WIRE HARNESS

32170-443-850

$5.05

10

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

11

HORN (HIGH)

38110-MCW-D01

$38.54

12

STAY, HORN

50155-MCW-D00

$12.93

13

STAY, R. FR. SIDE COWL

64514-MCW-D00

$9.31

14

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.42

15

CLIP (4X50)

90601-KJ9-000

$3.08

16

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

17

STRAP, CABLE

90672-MCW-000

$2.30

18

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

19

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

20

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

21

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

22

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

23

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49

24

BOLT, SOCKET (6X12)

96600-06012-08

$1.74

25

FUSE, MINI (10A)

98200-41000

$1.49

26

FUSE, MINI (20A)

98200-42000

$1.49
