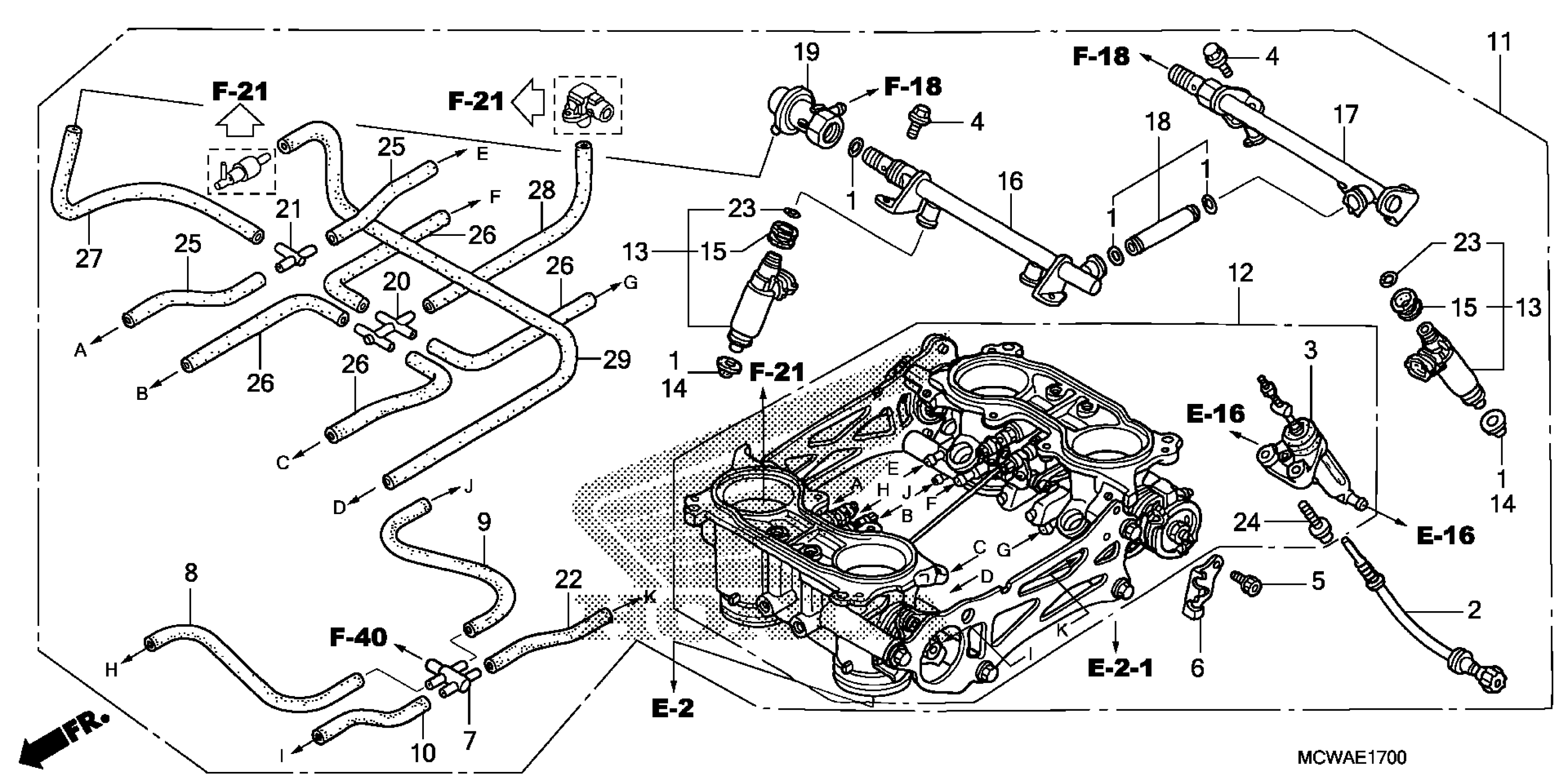

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 THROTTLE BODY (ASSY.) Diagram

#

Description
Price

1

GASKET SET

16010-MCW-003

$14.74

2

SCREW SET, STOP

16029-MCW-003

$39.79

3

WAX ASSY.

16044-MCW-003

$67.40

4

BOLT, FLANGE (6X12)

16080-MCJ-003

$1.43

5

BOLT, SOCKET (5X8)

16081-MCW-003

$2.28

6

STAY, WIRE (FRAME NO.)

16169-MCW-013

$9.54

7

JOINT (T)

16180-ME5-761

$29.24

8

TUBE

16197-MBW-L11

$5.21

9

TUBE

16198-MCW-L01

$4.51

10

TUBE

16199-MCW-L01

$3.18

11

BODY ASSY., THROTTLE (GQ39B A)

16400-MCW-K01

$1,807.04

12

BODY ASSY., THROTTLE

16401-MCW-K01

$1,748.38

13

INJECTOR ASSY., FUEL

16450-MEL-003

$137.72

14

SEAL RING, INJECTOR

16472-MCW-000

$2.21

15

CUSHION RING, INJECTOR

16473-P7A-004

$6.94

16

PIPE, FR. FUEL

16610-MCW-003

$64.18

17

PIPE, RR. FUEL

16620-MCW-003

$60.47

18

PIPE SET, FUEL

16630-MCW-003

$28.88

19

REGULATOR ASSY., PRESSURE

16740-MCW-013

$66.98

20

JOINT, FIVE-WAY

17201-MCJ-003

$7.93

21

JOINT, VACUUM TUBE (A)

17201-MG9-000

$14.63

22

TUBE

19199-MCW-L01

$2.41

23

O-RING (7.8X1.9)

91301-P7A-004

$3.21

24

SCREW-WASHER (6X20)

93892-06020-00

Unavailable

24

SCREW-WASHER (6X20) This part replaces 93892-06020-10.

93892-06020-00

Unavailable

25

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

26

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

27

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

28

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77

29

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.77
