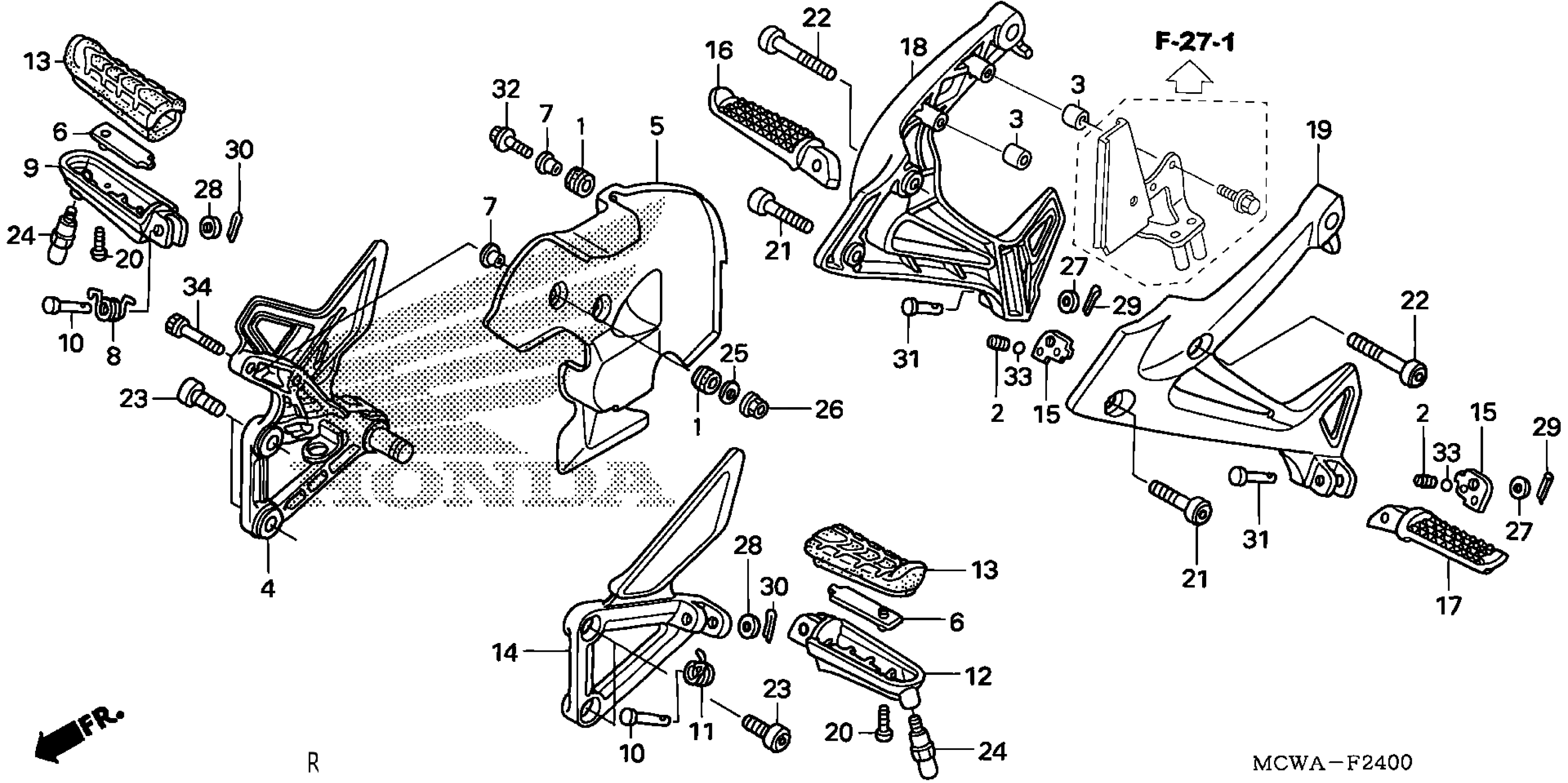

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 STEP Diagram

#

Description
Price

1

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

2

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

4

HOLDER, R. MAIN STEP

50600-MCW-D00

$130.28

5

GUARD, MAIN STEP HEAT

50606-MCW-D00

$73.16

6

PLATE, STEP SETTING

50609-MBW-000

$5.20

7

COLLAR, HEAT GUARD SETTING

50609-MCW-D00

$2.29

8

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

9

ARM, R. MAIN STEP

50635-MBW-000

$49.44

10

PIN, STEP BAR

50639-ML0-010

Unavailable

11

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

12

ARM, L. MAIN STEP

50645-MBW-000

$49.44

13

RUBBER, MAIN STEP (COO) This part replaces 50661-MBW-000.

50661-MJM-305

$8.13

14

HOLDER, L. MAIN STEP

50700-MCW-D00

$130.28

15

PLATE, PILLION STEP CLICK

50718-KT7-761

$3.83

16

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$41.27

16

BAR, R. PILLION STEP (COO)

50720-K26-305

$41.27

17

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$41.27

17

BAR, L. PILLION STEP (COO)

50730-K26-305

$41.27

18

HOLDER, R. PILLION STEP

50750-MCW-D00

$130.53

19

HOLDER, L. PILLION STEP

50760-MCW-D00

$124.94

20

BOLT, SPECIAL (5X14)

90118-MBW-000

$2.91

21

BOLT, SOCKET (8X32)

90156-MCW-D00

$2.43

22

BOLT, SOCKET (8X50)

90157-MCW-D00

Unavailable

23

BOLT, SOCKET (8X22)

90157-ME9-000

$5.45

24

BOLT, SPECIAL CAP (6MM)

90176-MCW-D00

$5.35

25

WASHER (6MM)

90485-286-000

$1.50

26

NUT, FLANGE (6MM)

94050-06000

$0.60

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

27

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

28

WASHER, PLAIN (8MM)

94102-08000

$0.87

29

PIN, COTTER (1.6X12)

94201-16120

$0.96

30

PIN, COTTER (2.0X15)

94201-20150

$0.96

31

PIN C, PILLION FOOTPEG

95015-83000

$2.22

32

BOLT, FLANGE (6X16)

96001-06016-07

$0.97

33

BALL, STEEL (#8) (1/4)

96211-08000

$1.15

34

BOLT, SOCKET (6X35) (SOURCE: VINTAGE PARTS INC.)

96700-06035-00

Unavailable
