Description

Price

1

SWITCH SET, SIDE STAND

35700-MCW-305

Unavailable

2

BRACKET, SIDE STAND

50150-MCW-D00

$66.28

3

STAND, MAIN

50500-MCW-D00

$133.91

4

COLLAR, R. MAIN STAND

50503-MCP-900

$6.69

5

COLLAR, L. MAIN STAND

50504-MBG-000

$14.29

6

SPRING ASSY., MAIN STAND

50520-MZ7-000

$12.65

7

SUB-SPRING, MAIN STAND

50523-MZ7-610

$6.72

8

PLATE, MAIN STAND SPRING

50527-MBG-000

$8.35

9

BAR, SIDE STAND (COO) This part replaces 50530-MCW-D00.

50530-MJM-305

$73.84

10

HOOK, MAIN STAND SPRING

50538-ML7-000

$7.29

11

SPRING ASSY., SIDE STAND

50540-MBB-000

$8.04

12

BOLT, FLANGE (10X35) (LEFT HAND THREAD)

90105-MCW-D00

$2.50

13

BOLT, SOCKET (10X26)

90106-MAT-000

$6.50

14

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.43

15

BOLT, SPECIAL (10X47)

90130-MCW-D00

$5.84

16

BOLT, SPECIAL (6X16)

90147-MCE-950

$0.51

17

NUT, SIDE STAND

90203-MF9-710

$3.50

18

WASHER, SPRING (24X18)

90551-SE0-000

$3.85

19

WASHER (18.5MM)

90590-KK7-000

$2.85

20

WASHER, PLAIN (10MM)

94103-10700

$0.87

21

E-RING (6MM)

94540-06018

$2.89

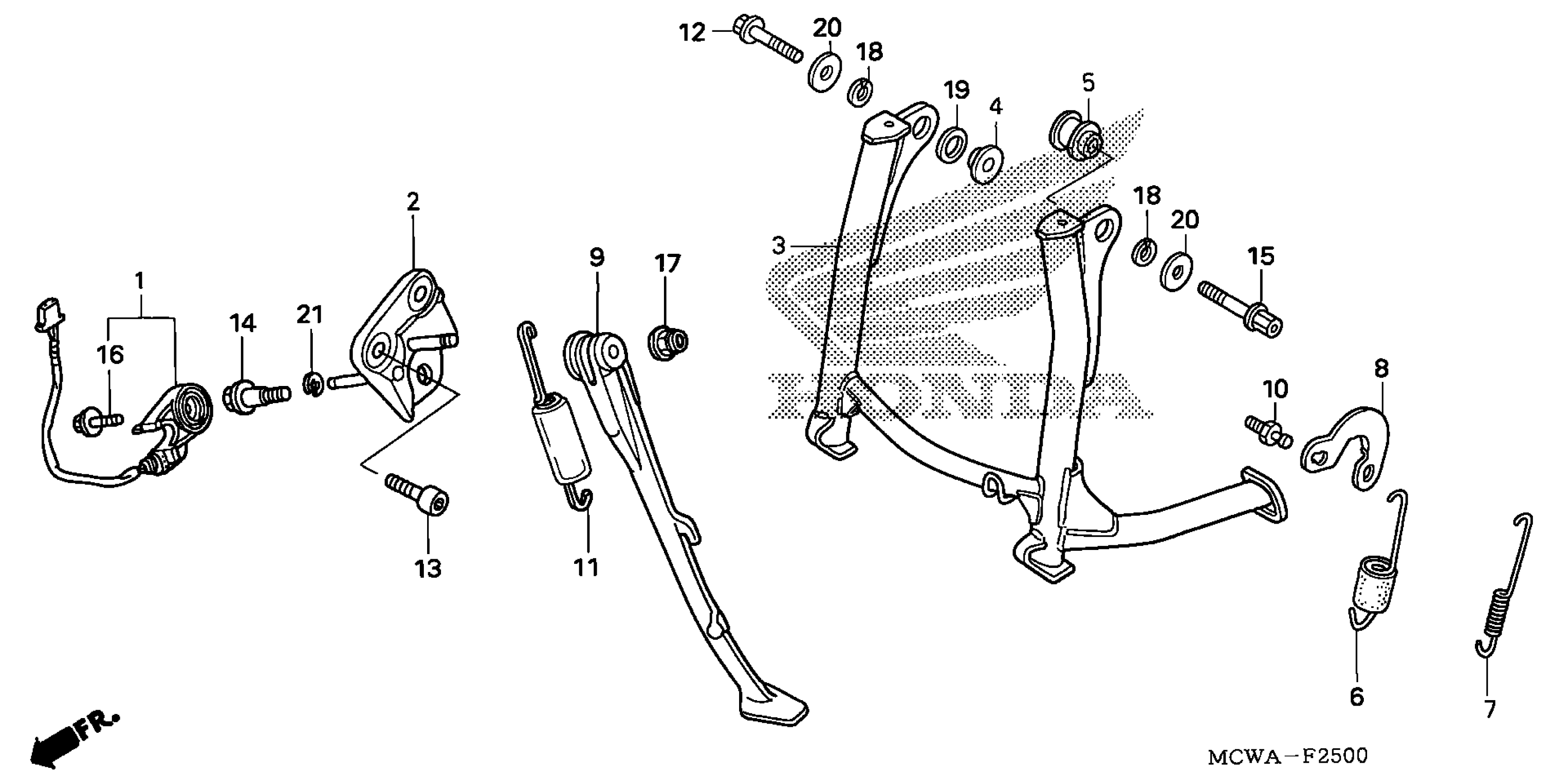

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 STAND Diagram
