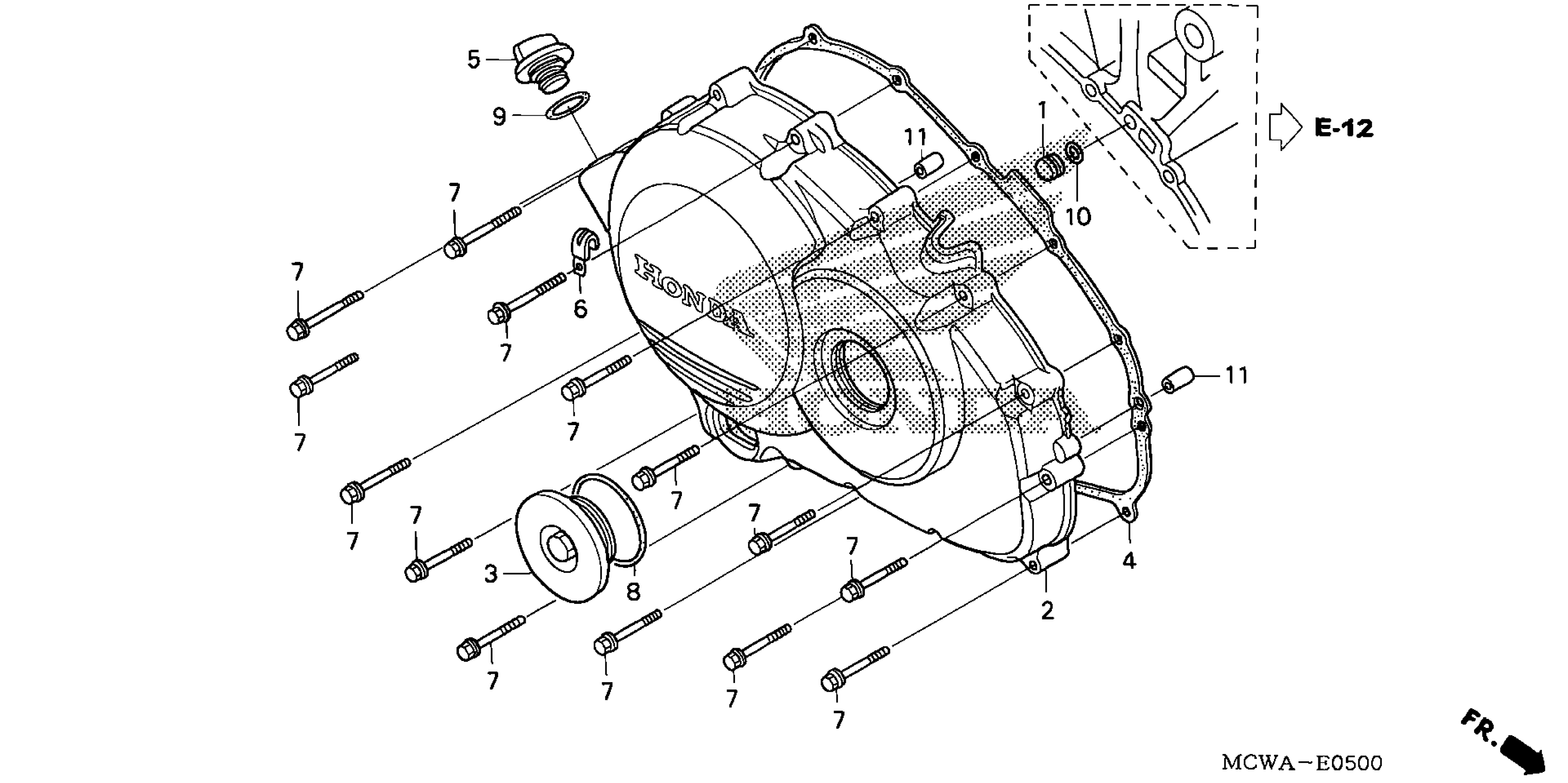

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 RIGHT CRANKCASE COVER Diagram

PLUG, SEALING

11103-MCW-000

$4.23

COVER, R.

11330-MW4-020

$380.05

CAP (45MM)

11332-MM5-000

$24.01

GASKET, R. COVER This part replaces 11394-MCW-000.

11394-MCW-020

$19.06

GASKET, R. COVER This part replaces 11394-MCW-010.

11394-MCW-020

$19.06

GASKET, R. COVER

11394-MCW-020

$19.06

CAP, OIL FILLER

15611-MB0-000

$9.93

CLIP, PULSER WIRE

32925-958-000

$2.92

BOLT, FLANGE (6X32) (NSHF)

90007-GHB-690

$1.87

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

O-RING (21.5X3.2)

91307-425-003

$2.59

O-RING (5.2X1.9)

91315-PN1-000

$2.33

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
