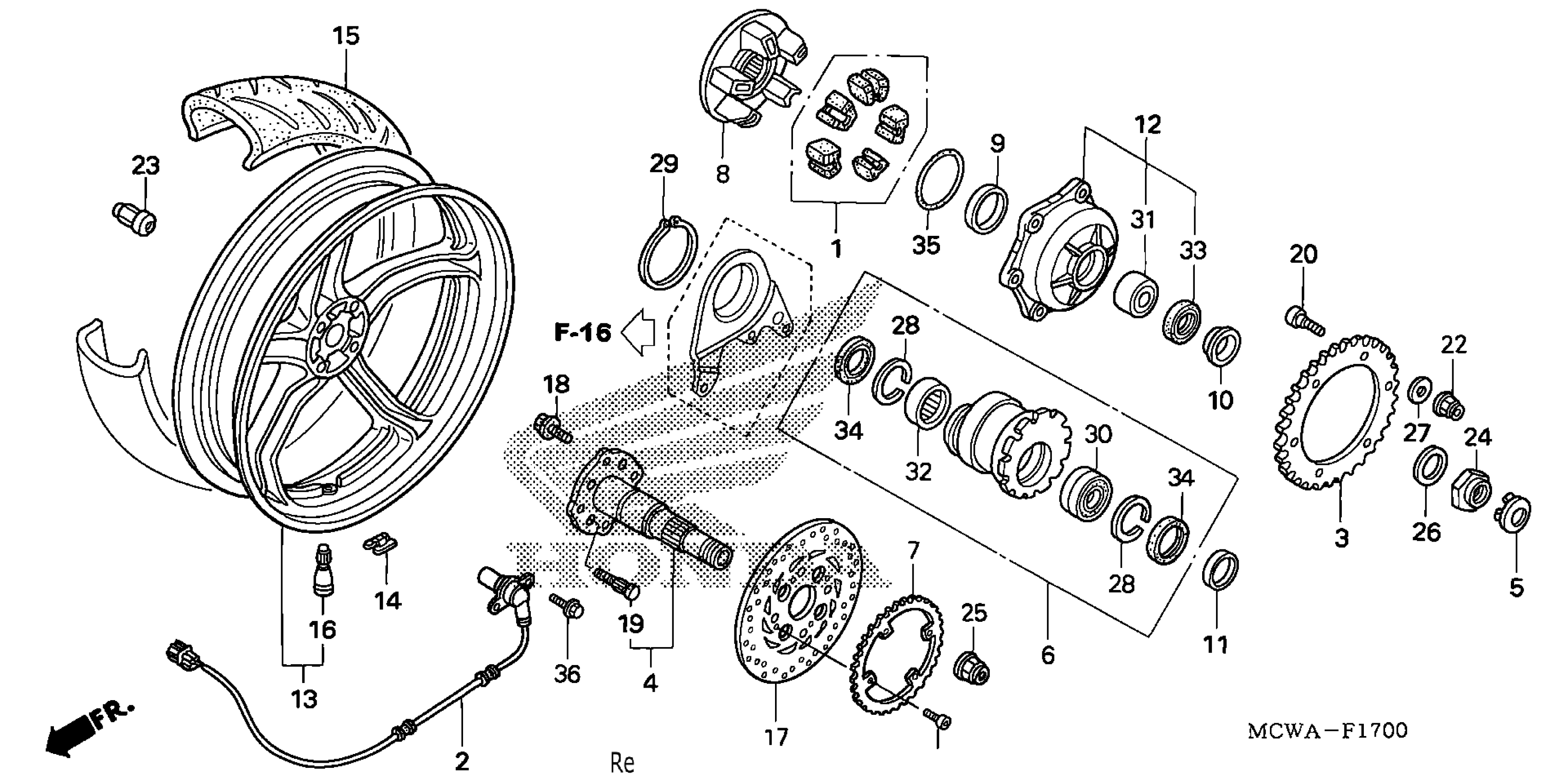

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBG-000

$33.40

3

SPROCKET, FINAL DRIVEN (43T)

41201-MCW-D00

$110.28

4

AXLE, RR.

42300-MFN-D00

$267.56

5

CAP, RR. AXLE

42303-MT4-000

$9.58

6

HOLDER, BEARING

42500-MCW-D00

$292.24

8

FLANGE, FINAL DRIVEN

42605-MBG-000

$131.63

9

COLLAR, RR. AXLE DISTANCE

42621-MT4-000

$18.26

10

COLLAR, RR. AXLE SIDE

42622-MT4-000

$20.22

11

COLLAR, RR. AXLE

42623-MBG-000

$20.84

12

HUB ASSY., SPROCKET

42630-MCW-H50

$182.35

13

WHEEL SUB-ASSY., RR. (TYPE3)

42650-MCW-D00ZC

$662.37

14

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$11.35

14

WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)

42705-MCF-D60

$14.21

14

WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)

42706-MCF-D60

$13.29

15

TIRE, RR. (180/55ZR17) (M/C) (METZELER) (NOT AVAILABLE)

42711-MCW-D03

Unavailable

15

TIRE, RR. (180/55ZR17) (M/C) (BS)

42711-MCW-D04

$294.94

15

TIRE (180/55ZR17) This part replaces 42711-MCW-D05.

42711-MCW-D08

Unavailable

15

TIRE (180/55ZR17) This part replaces 42711-MCW-D07.

42711-MCW-D08

Unavailable

15

TIRE (180/55ZR17)

42711-MCW-D08

Unavailable

16

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$6.72

16

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$11.69

16

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.69

17

DISK, RR. BRAKE

43251-MCW-D01

Unavailable

18

BOLT, FLANGE (8X19)

90102-MW4-000

$4.59

19

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-025.

90113-SM1-005

$2.67

19

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.67

20

BOLT (10X30)

90121-MCF-000

$3.10

22

NUT, U (10MM)

90304-KAE-871

$4.13

23

NUT, WHEEL (FUSE RASHI)

90304-SF0-751

$15.29

24

NUT, LOCK (35MM)

90306-MFN-D00

$10.72

25

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

25

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

26

WASHER, CONICAL SPRING (35)

90501-MBG-003

$7.13

27

WASHER (10MM)

90502-MCF-000

$2.59

28

CIRCLIP (INNER) (62MM)

90651-ML0-731

$5.53

29

CIRCLIP (OUTER) (75MM)

90652-ML0-731

$9.63

30

BEARING, RADIAL BALL (6908LU)

91061-ML0-731

$43.67

31

BEARING, RADIAL BALL (35X55X10)

91061-MT4-003

$81.67

32

BEARING, RR. AXLE NEEDLE

91062-MR7-003

$38.96

33

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$7.97

34

DUST SEAL (50X62X5)

91284-MR7-003

$11.73

35

O-RING, SPROCKET HUB (52X2)

91352-MN8-003

$2.41
