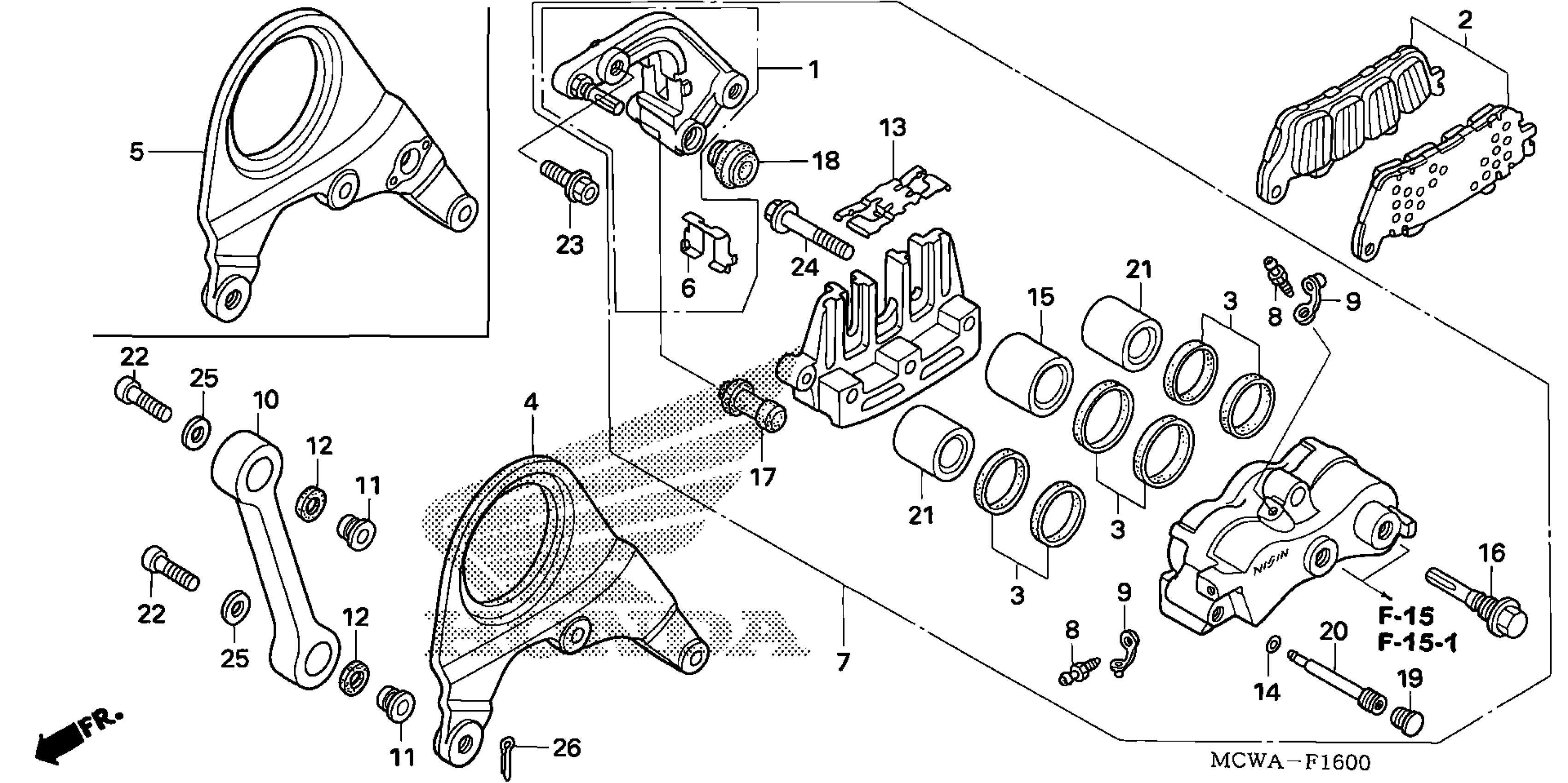

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET SUB-ASSY., RR.

06432-MBG-405

Unavailable

2

PAD SET, RR.

06435-MAT-016

$51.46

3

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

4

BRACKET, RR. BRAKE

43111-MCW-D00

Unavailable

6

RETAINER, BRACKET

43112-MBG-006

Unavailable

7

CALIPER SUB-ASSY., RR.

43150-MCW-D01

$455.81

8

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

9

CAP, BLEEDER

43353-461-771

Unavailable

10

ROD, RR. BRAKE TORQUE

43431-MCW-D00

Unavailable

11

COLLAR, TORQUE LINK

43432-MCW-D00

$4.44

12

RUBBER, TORQUE LINK

43434-MCE-000

$0.85

13

SPRING, PAD

45108-MZ2-016

$7.88

14

RING, STOPPER

45111-MAJ-G41

$3.63

15

PISTON A (25X27)

45117-MAJ-G41

$25.95

16

PIN, BOLT

45131-MZ2-006

$15.97

17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

18

BOOT B

45133-MA3-006

$5.21

19

PLUG, PIN

45203-MCC-006

$2.66

20

PIN, HANGER

45215-MAJ-G41

$6.15

21

PISTON B (25X35)

45217-MAJ-G41

$33.92

22

BOLT, SOCKET (10X32)

90122-MCW-D00

$1.91

23

BOLT, FLANGE (8X25)

90131-GAA-000

$5.90

24

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.17

25

WASHER (17.2X26X0.5)

90524-MCW-D00

$2.10

26

PIN, COTTER (2.0X15)

94201-20150

$1.04
