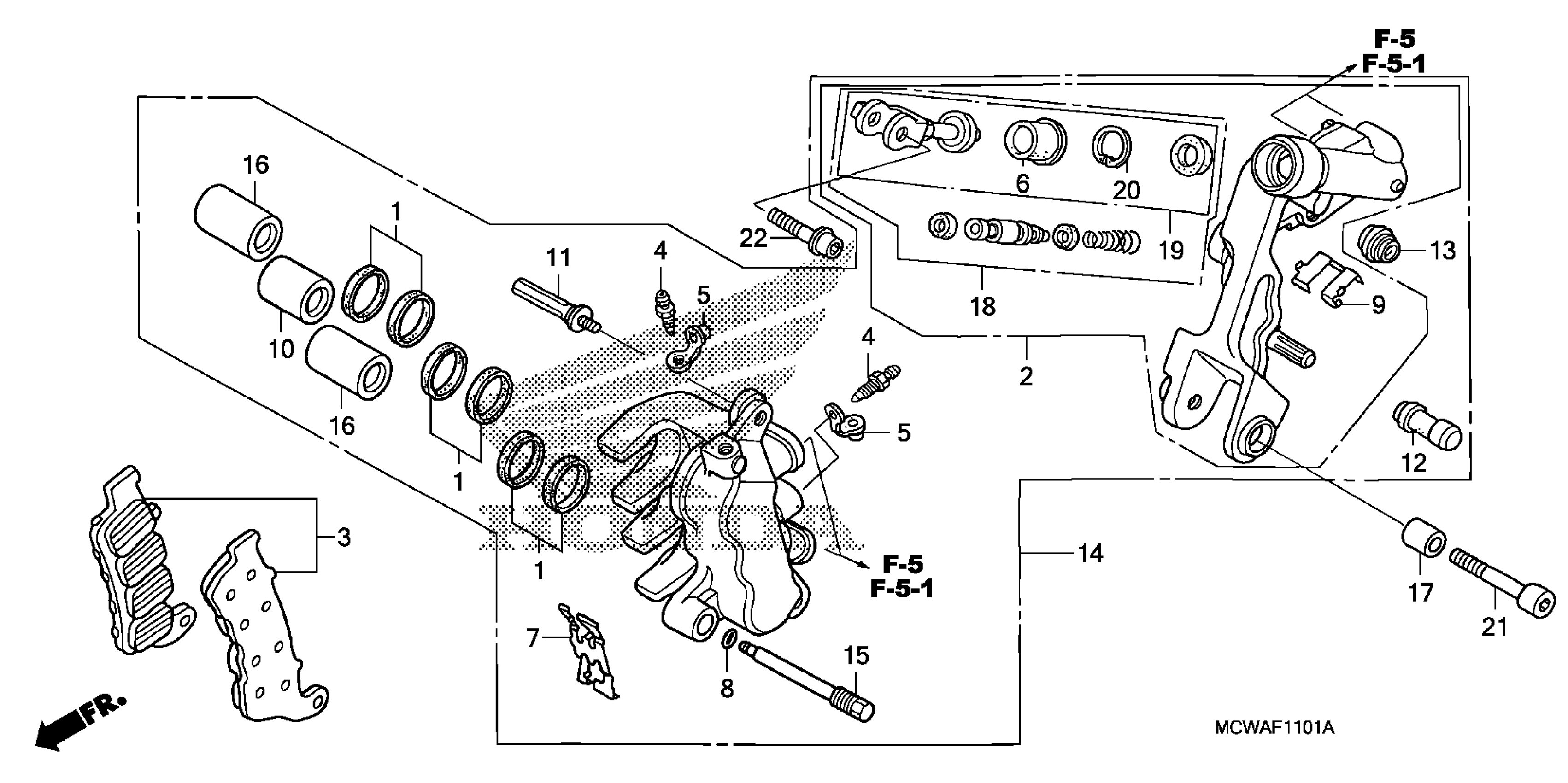

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 LEFT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$11.41

BRACKET SUB-ASSY., L. FR.

06454-MBT-D52

$238.79

PAD SET, L. FR. This part replaces 06456-MCW-H02.

06456-MCW-H03

$61.98

PAD SET, L. FR.

06456-MCW-H03

$61.98

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

BOOT

43504-MB2-006

$10.04

SPRING, PAD

45108-MBT-D52

$7.54

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

PISTON A (25X27)

45117-MAJ-G41

$28.27

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR.

45150-MCW-H03

$556.16

PIN, HANGER

45215-MBT-D51

$6.90

PISTON B (25X35)

45217-MAJ-G41

$36.94

COLLAR, PIVOT

45452-MZ2-000

$10.04

PISTON SET, SECOND MASTER CYLINDER

45620-MBG-026

$61.82

JOINT SET, BRAKE ROD

45630-MBG-026

$21.03

CIRCLIP

46182-MEL-D21

$1.93

BOLT, SOCKET (8X45)

90132-MZ2-000

$11.28

BOLT, FLANGE SOCKET (8X32)

90133-MAT-000

$4.12
