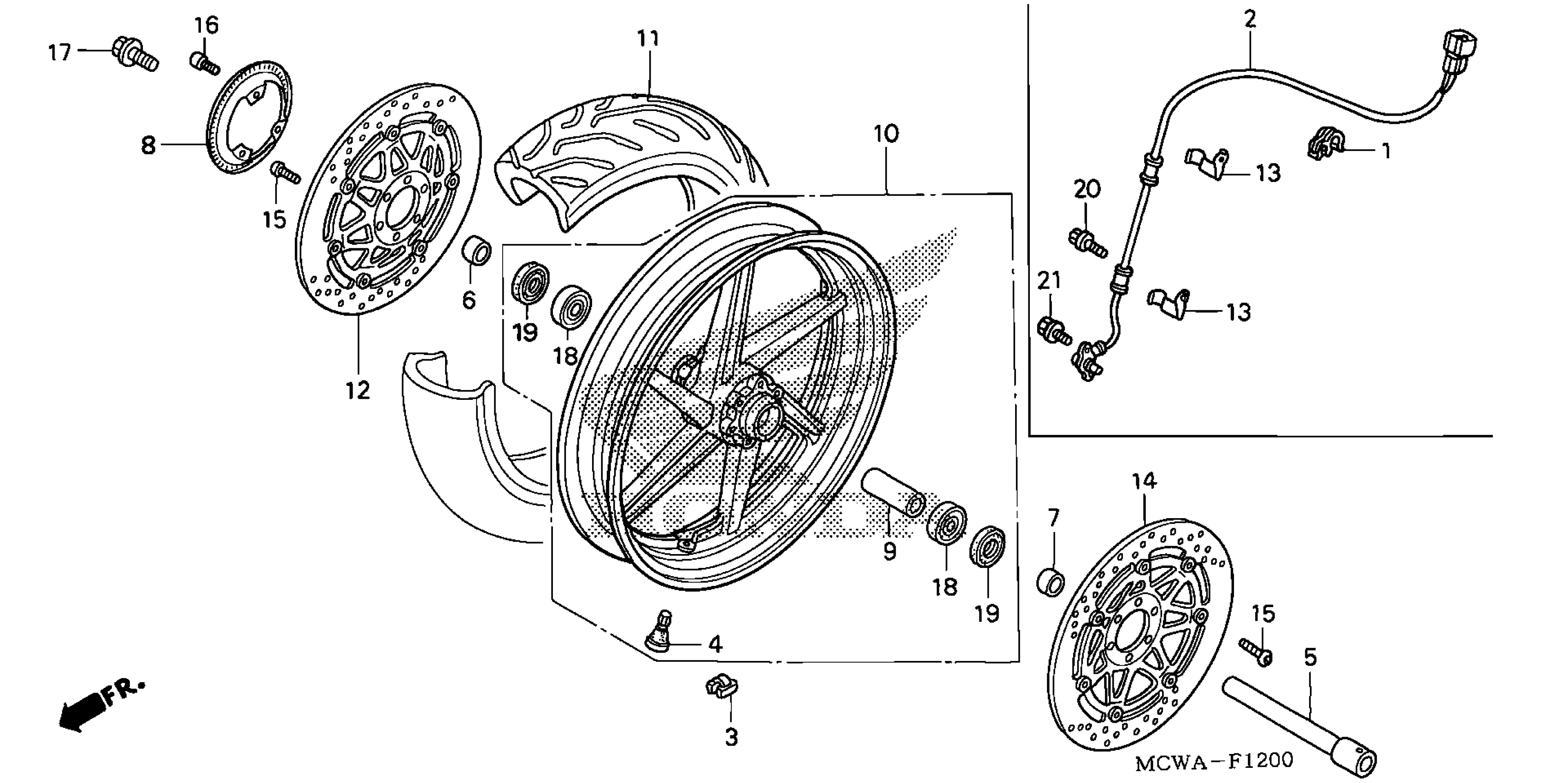

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 FRONT WHEEL Diagram

#

Description
Price

3

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

3

WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)

42705-MCF-D60

$15.38

3

WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)

42706-MCF-D60

$14.48

4

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$7.28

4

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

4

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

5

AXLE, FR. WHEEL

44301-MBZ-D00

$48.59

6

COLLAR, R. FR. WHEEL SIDE

44311-MAT-E20

$13.28

7

COLLAR, FR. WHEEL SIDE

44312-MZ1-610

$11.31

9

COLLAR, FR. AXLE DISTANCE

44620-MCW-D00

$22.69

10

WHEEL SUB-ASSY., FR. (TYPE3)

44650-MCW-D01ZC

$782.34

11

TIRE, FR. (120/70ZR17) (M/C) (METZELER) (NOT AVAILABLE)

44711-MCW-D03

Unavailable

11

TIRE, FR. (120/70ZR17) (M/C) (BS)

44711-MCW-D04

Unavailable

11

TIRE (120/70ZR17) This part replaces 44711-MCW-D05.

44711-MCW-D09

$232.13

11

TIRE (120/70ZR17)

44711-MCW-D09

$232.13

12

DISK, R. FR. BRAKE

45120-MCW-H51

$472.66

14

DISK, L. FR. BRAKE

45220-MCW-H51

$472.59

15

BOLT, DISK (6X17)

90106-MBB-000

$3.65

17

BOLT, FR. AXLE

90305-ML7-000

$10.50

18

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

19

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98
