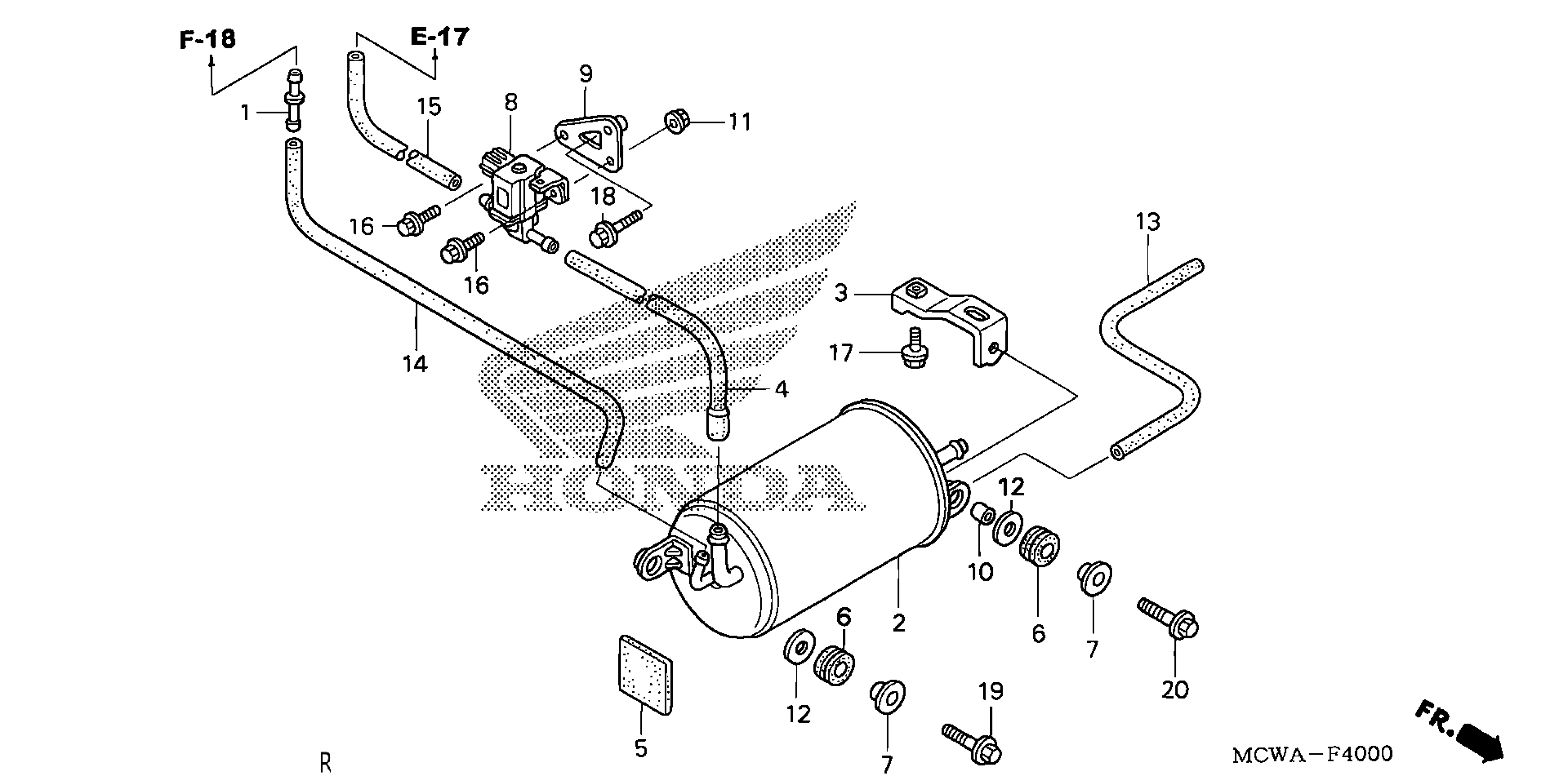

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 EVAP CANISTER Diagram

#

Description
Price

1

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

2

CANISTER ASSY.

17400-MBG-770

Unavailable

3

STAY, CANISTER

17411-MBG-770

Unavailable

4

TUBE (P.C.S.-CANISTER)

17412-MBG-770

$10.62

5

MAT, CANISTER PROTECTOR

17413-MBG-770

$1.49

6

RUBBER, CANISTER MOUNTING

19051-MB4-880

$3.13

7

COLLAR, CANISTER MOUNTING

19052-MB4-880

$3.69

8

VALVE ASSY., PURGE CONTROL SOLENOID

36162-P2M-A01

$365.90

9

STAY, PURGE CONTROL SENCER

36165-MBG-770

$13.64

10

SPACER, HANDLE END GUARD

90503-MG7-000

$3.07

11

NUT, FLANGE (6MM)

94050-06000

$1.49

12

WASHER, PLAIN (6MM)

94103-06700

$1.49

13

BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)

95005-45001-20M

$34.14

14

TUBE, BULK VACUUM

17545-MCW-K60

$24.08

15

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

16

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

17

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

18

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

19

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

20

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
