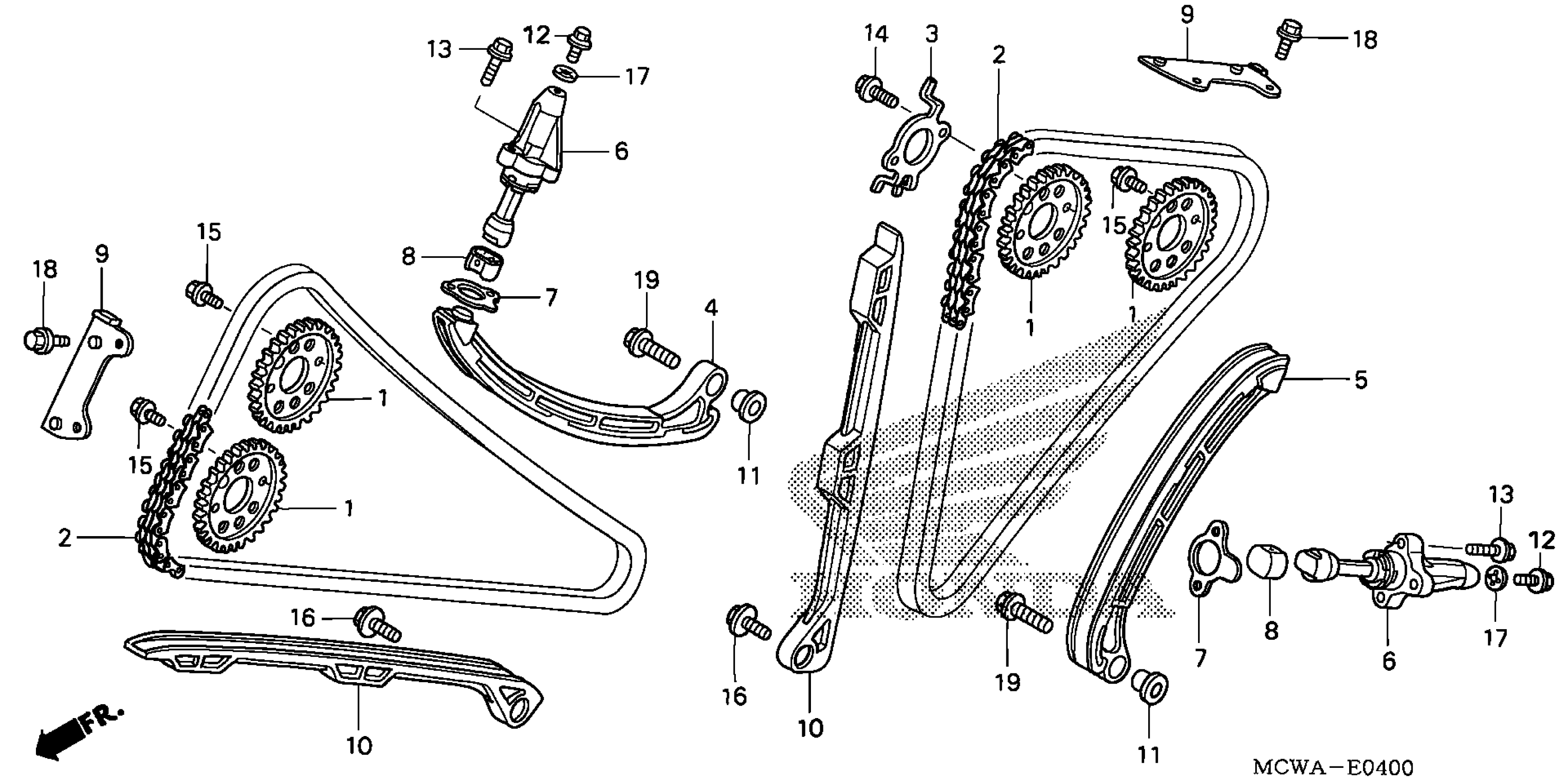

Honda VFR800A (09) INTERCEPTOR, JPN, VIN# JH2RC460-9K100001 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (38T)

14321-MCW-000

$65.77

CHAIN, CAM (132L) (BORG WARNER)

14401-MCW-003

$99.51

ROTOR, CAM PULSE

14405-MCW-000

$30.93

TENSIONER, FR. CAM CHAIN

14510-MCW-003

$92.16

TENSIONER, RR. CAM CHAIN

14515-MCW-003

$93.20

LIFTER ASSY., TENSIONER

14520-MCW-013

$124.00

GASKET, TENSIONER HOLE

14523-MCW-003

$4.45

CAP, LIFTER PAT

14524-MBB-000

$7.72

GUIDE B, CAM CHAIN

14546-MBW-000

$36.84

GUIDE A, CAM CHAIN

14610-MCW-003

$53.52

COLLAR (8MM)

14626-MBB-000

$4.93

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, UBS (7X15)

90026-MM8-000

$2.92

BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291)

90082-HA0-000

$1.97

BOLT, FLANGE (6X15)

90124-MCW-000

$1.49

WASHER, SEALING (6MM)

90442-397-000

$2.28

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (8X30)

95701-08030-00

$1.49
