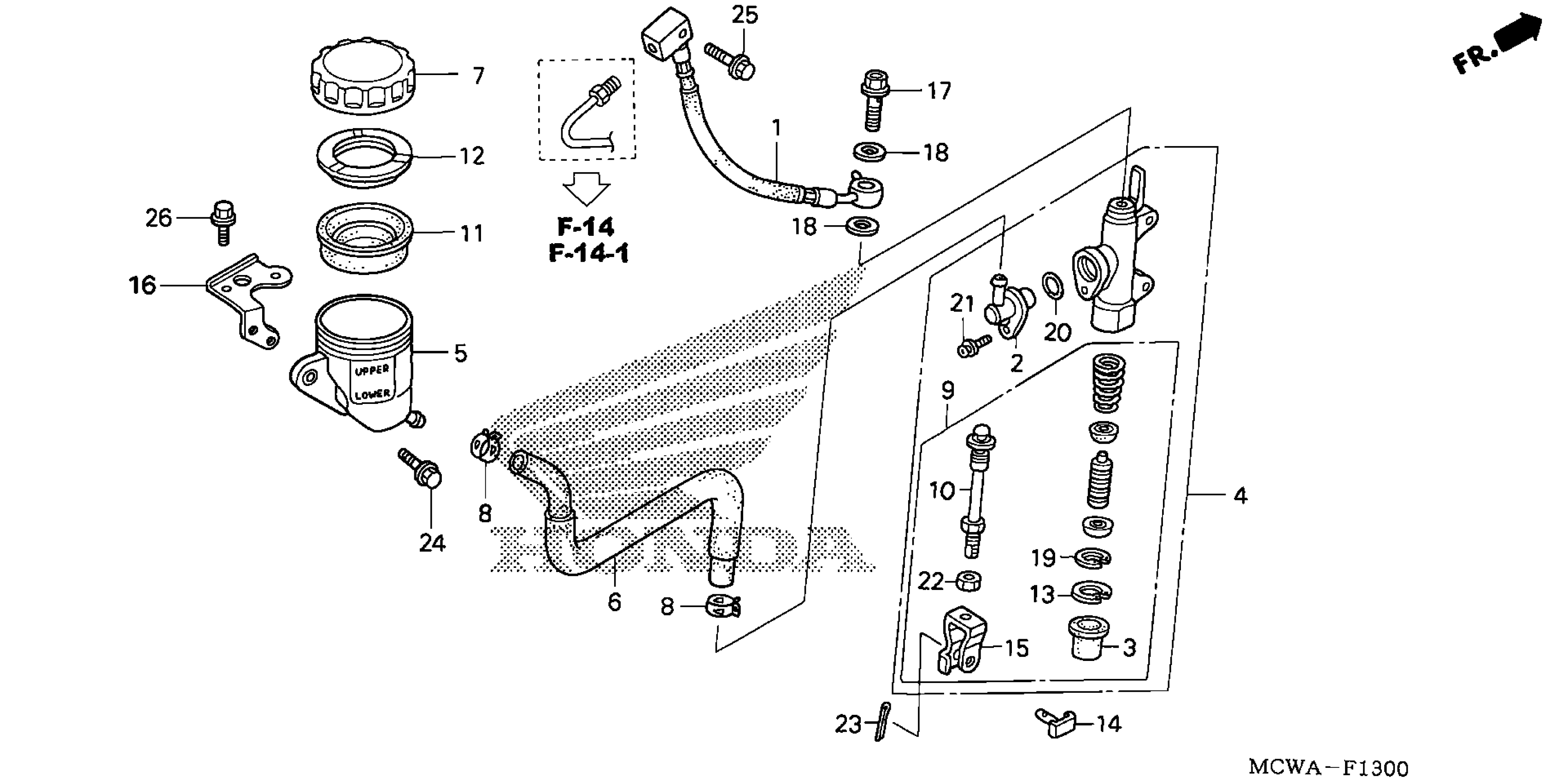

Honda VFR8002AC (07) INTERCEPTOR, JPN, VIN# JH2RC466-7M900001 TO JH2RC466-7M909999 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. MASTER CYLINDER JOINT

43310-MCW-D01

$42.58

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$10.94

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR.

43510-MCW-D02

Unavailable

CUP, MASTER CYLINDER OIL

43511-MA6-006

$36.12

HOSE, RR. MASTER CYLINDER

43512-MCW-D01

$29.93

CAP, OIL CUP

43513-MY1-006

$26.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

PISTON SET, RR. MASTER CYLINDER

43520-MCW-D02

$64.51

ROD, PUSH

43530-MCW-D01

$23.97

DIAPHRAGM

45520-300-000

$8.13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

CIRCLIP

46182-MEL-D21

$1.77

PIN, BRAKE ROD

46503-MAL-000

$5.46

JOINT, BRAKE ROD

46504-MAL-601

$12.20

PLATE, OIL CUP

50280-MCW-D00

$6.62

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP, PISTON

90651-MBG-006

$2.59

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X12)

94201-20120

$0.94

BOLT, FLANGE (6X16)

95701-06016-07

$1.48

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

BOLT, FLANGE (6X10)

96001-06010-00

$1.48
