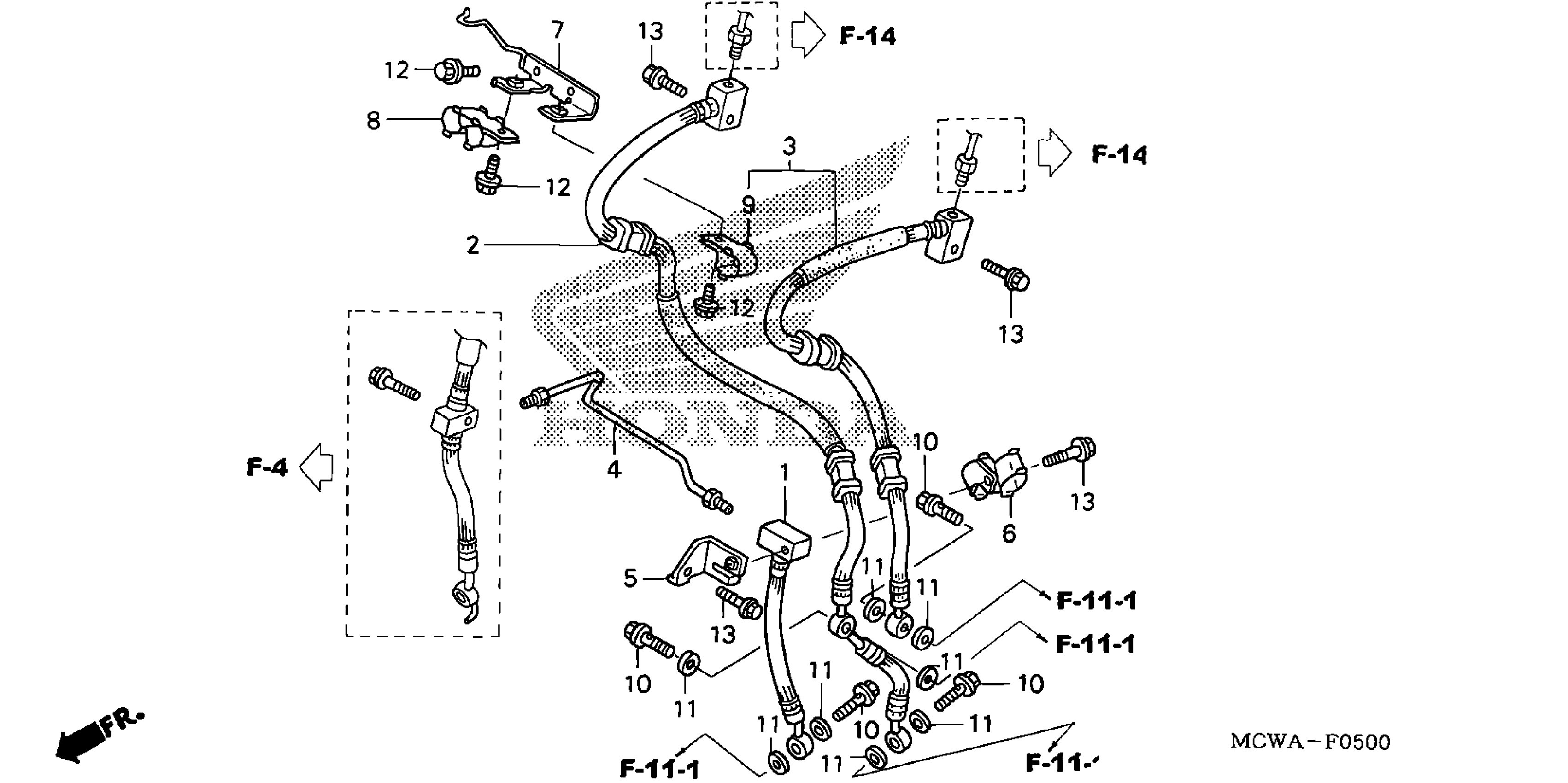

Honda VFR8002AC (07) INTERCEPTOR, JPN, VIN# JH2RC466-7M900001 TO JH2RC466-7M909999 FRONT BRAKE HOSE Diagram

#

Description

Price

1

HOSE, L. FR. BRAKE

45126-MCW-H01

$34.70

2

HOSE, FR. BRAKE SUB

45127-MCW-H01

$59.26

3

HOSE, SECOND MASTER CYLINDER

45128-MCW-D01

$62.34

4

PIPE, MAIN BRAKE JOINT

45130-MCW-D00

$34.64

5

STAY, FR. BRAKE PIPE

45156-MCW-D00

$4.56

6

CLAMP, SECOND MASTER CYLINDER HOSE

45158-MCW-D00

$7.28

7

STAY, FR. BRAKE HOSE CLAMP

45163-MCW-D00

$12.10

8

CLAMP, BRAKE HOSE

52115-MAT-000

$6.28

9

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

10

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

11

WASHER, OIL BOLT

90545-300-000

$3.99

12

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

13

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.49
