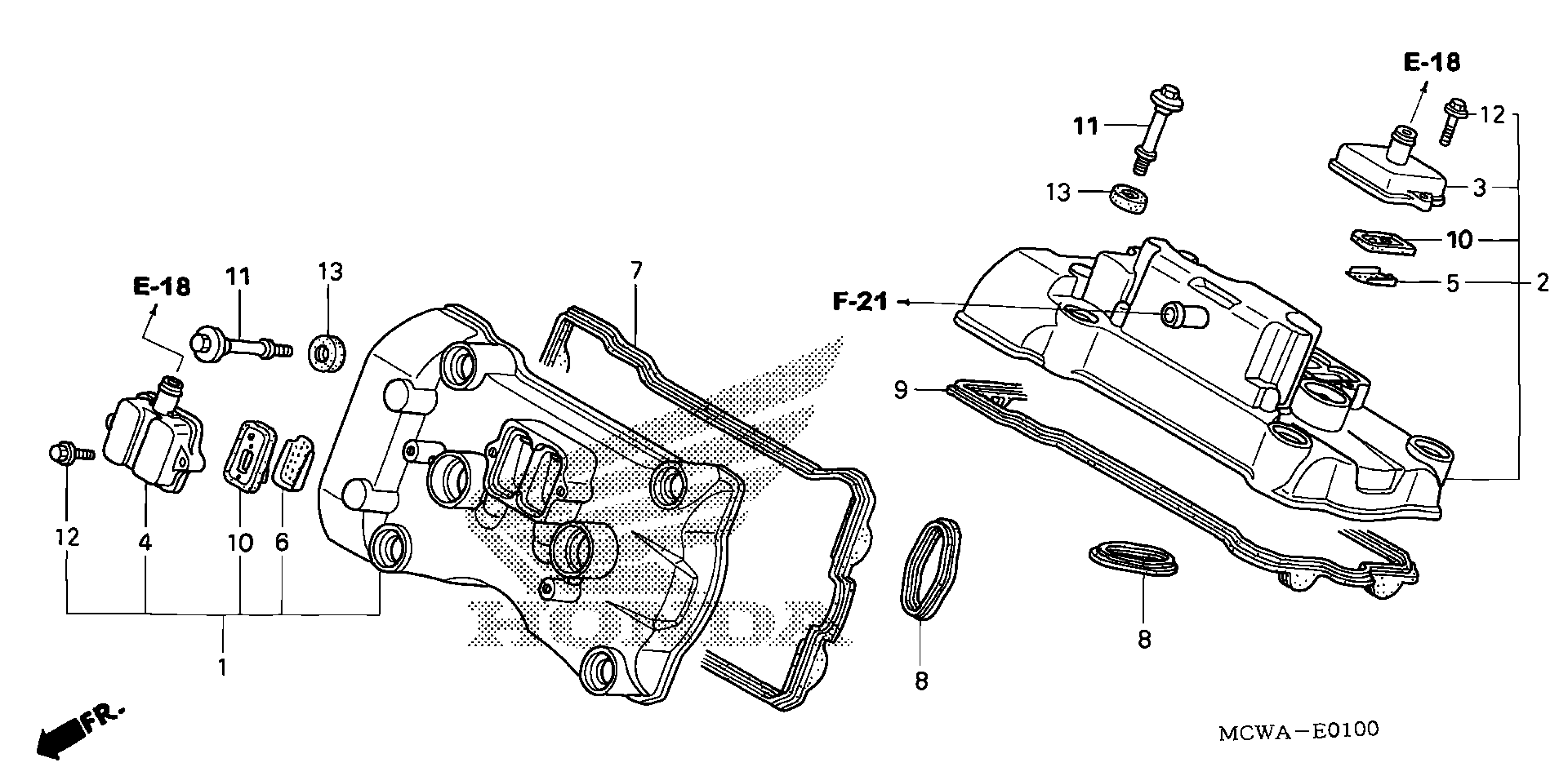

Honda VFR8002AC (07) INTERCEPTOR, JPN, VIN# JH2RC466-7M900001 TO JH2RC466-7M909999 CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER ASSY., FR. CYLINDER HEAD

12310-MCW-000

$272.85

2

COVER ASSY., RR. CYLINDER HEAD

12320-MCW-000

Unavailable

3

COVER, REED VALVE

12331-MAT-750

$41.25

4

COVER, REED VALVE

12339-MCE-000

Unavailable

5

PLATE, PORT (AI)

12341-MAT-750

$13.98

6

PLATE, PORT (AI)

12341-MBG-000

$7.92

7

GASKET, FR. CYLINDER HEAD COVER

12391-MCW-000

$46.37

8

GASKET B, CYLINDER HEAD COVER

12394-MBG-000

$6.08

9

GASKET, RR. CYLINDER HEAD COVER

12395-MCW-000

$46.37

10

VALVE, REED | Use up to Engine SN 2903892. This part replaces 18601-MCJ-000.

18601-MCJ-003

$14.48

10

VALVE, REED

18601-MCJ-003

$14.48

11

BOLT, HEAD COVER

90002-MY5-850

$9.49

12

BOLT, FLANGE (6X20)

90020-ZC3-000

$1.94

13

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.94
