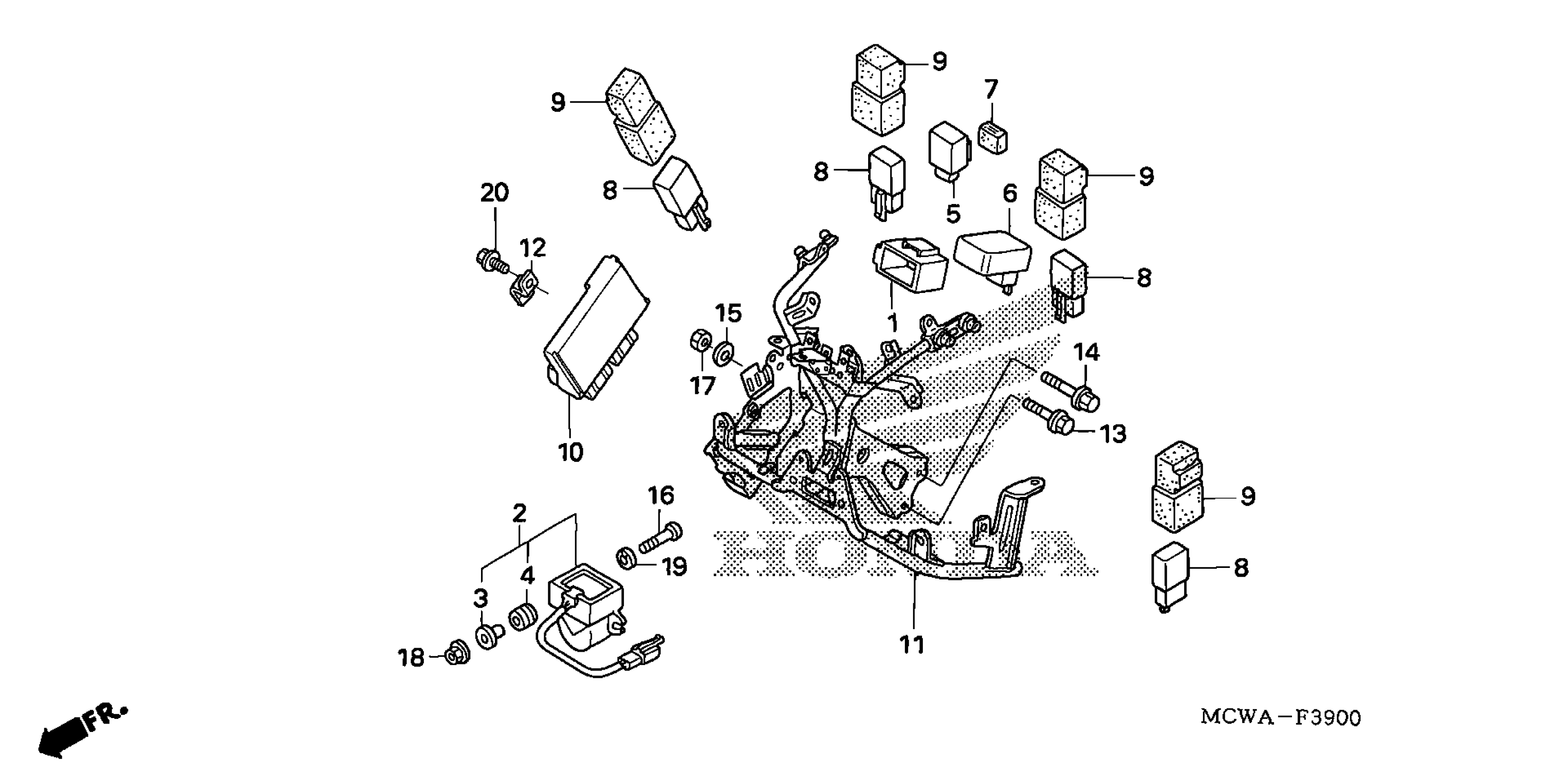

Honda VFR8002AC (07) INTERCEPTOR, JPN, VIN# JH2RC466-7M900001 TO JH2RC466-7M909999 COWL STAY Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

SENSOR ASSY., STOP This part replaces 35160-MBG-013.

35160-MBG-023

$136.00

SENSOR ASSY., STOP

35160-MBG-023

$136.00

COLLAR

35162-MN5-003

$7.25

GROMMET

35163-MN5-003

$3.15

RELAY, TURN SIGNAL (DENSO)

38301-MBW-D21

$46.44

RELAY, TURN SIGNAL

38301-MEJ-J50

$97.89

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.52

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

PGM-FI UNIT

38770-MCW-K01

$905.69

STAY, COWL (UPPER)

64500-MCW-K00

Unavailable

PLATE, ENGINE CONTROL UNIT STOPPER

64507-MCW-H00

$2.38

BOLT, FLANGE (8X40)

90103-KAB-670

$4.28

BOLT, SPECIAL (10X40)

90107-MCW-D00

$2.90

WASHER (10MM)

90465-MM9-000

$3.54

SCREW, PAN (4X25)

93500-04025-0A

$1.93

NUT, HEX. (10MM)

94030-10070

Unavailable

NUT, FLANGE (4MM)

94050-04000

$1.49

WASHER, SPRING (4MM)

94111-04800

$1.49

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
