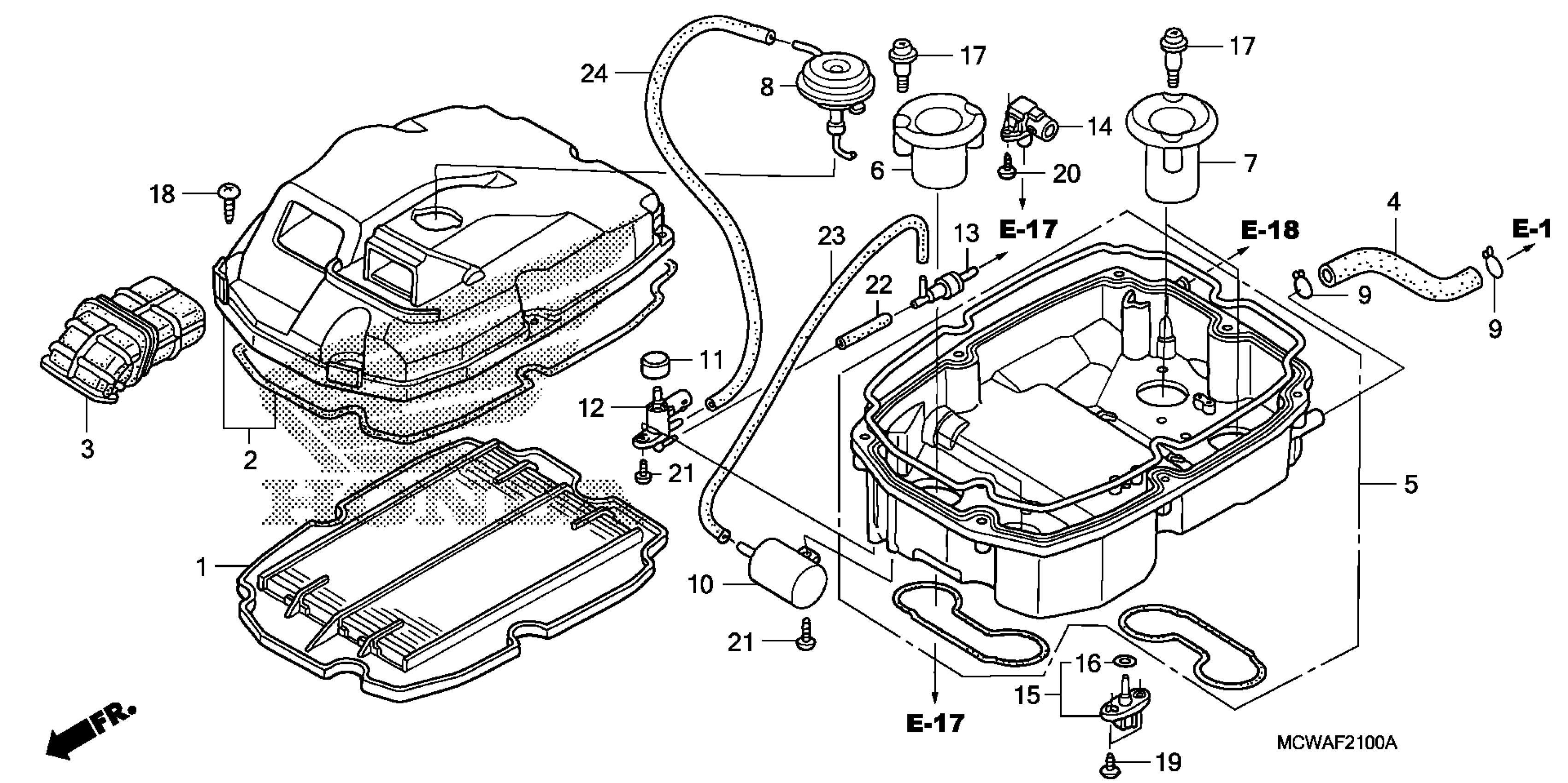

Honda VFR8002AC (07) INTERCEPTOR, JPN, VIN# JH2RC466-7M900001 TO JH2RC466-7M909999 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER This part replaces 17210-MCW-D00.

17210-MCW-D01

$51.18

1

ELEMENT, AIR CLEANER

17210-MCW-D01

$51.18

2

COVER, AIR CLEANER This part replaces 17221-MCW-D01.

17221-MCW-D02

$124.03

2

COVER, AIR CLEANER

17221-MCW-D02

$124.03

3

DUCT, AIR CLEANER This part replaces 17222-MCW-D00.

17222-MCW-D01

$37.79

3

DUCT, AIR CLEANER

17222-MCW-D01

$37.79

4

TUBE, BREATHER

17227-MBG-000

$9.46

5

HOUSING, AIR CLEANER This part replaces 17231-MCW-D00.

17231-MJM-D00

$147.41

5

HOUSING, AIR CLEANER This part replaces 17231-MCW-D01.

17231-MJM-D00

$147.41

5

HOUSING, AIR CLEANER

17231-MJM-D00

$147.41

6

FUNNEL, AIR

17236-MCW-D00

$13.74

7

FUNNEL, AIR

17237-MCW-D00

$15.13

8

DIAPHRAGM, CONTROL VALVE

17238-MW4-003

$51.38

9

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

10

CHAMBER, VACUUM (50)

36132-PH4-671

$42.66

11

FILTER ASSY., SOLENOID VALVE

36138-PR7-A01

$34.18

12

VALVE ASSY., BYPASS CONTROL SOLENOID

36163-PV0-004

$294.10

13

VALVE, IN. AIR SHOT AIR CHECK This part replaces 36627-MN5-000.

36627-MN5-003

$42.75

13

VALVE, IN. AIR SHOT AIR CHECK

36627-MN5-003

$42.75

14

SENSOR, MAP

37830-MCF-003

$206.58

15

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$33.51

16

O-RING (7.5X1.5) (Honda Code 2684819)

91303-PK2-005

$2.81

17

SCREW, PAN (5MM)

91508-GB2-720

$3.77

18

SCREW, TAPPING (5X20)

93903-25480

$1.49

19

SCREW, TAPPING (5X20)

93911-25520

$1.49

20

SCREW, TAPPING (4X16) (PO)

93913-24420

$1.49

21

SCREW, TAPPING (5X20) (PO)

93913-25520

$1.49

22

BULK HOSE, VACUUM (3.5X8000) (3.5X1000)

95005-35008-10M

$105.82

23

BULK HOSE, VACUUM (3.5X8000) (3.5X1000)

95005-35008-10M

$105.82

24

BULK HOSE, VACUUM (4.5X1000) (4.5X160) (BULK HOSE: (95005-45008-10M)

95005-45001-10M

$23.47
