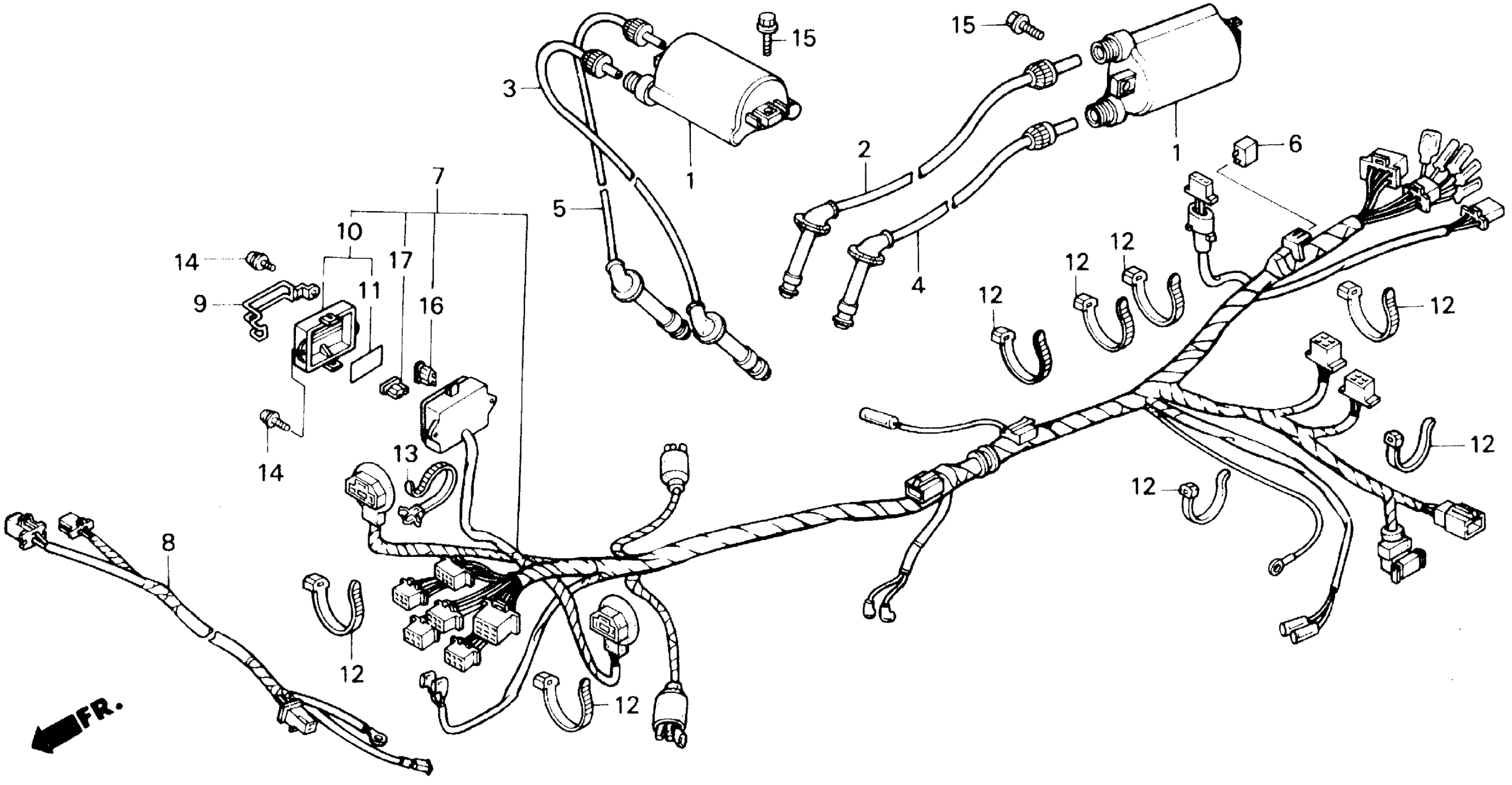

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30510-MR7-003

Unavailable

2

CAP ASSY. 1, IGNITION (NOT AVAILABLE)

30751-MR7-000

Unavailable

3

CAP ASSY. 2, IGNITION (NOT AVAILABLE)

30752-MR7-000

Unavailable

4

CAP ASSY. 3, IGNITION (NOT AVAILABLE)

30753-MR7-000

Unavailable

5

CAP ASSY. 4, IGNITION (NOT AVAILABLE)

30754-MR7-000

Unavailable

6

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

6

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

7

WIRE HARNESS (NOT AVAILABLE)

32100-MR7-720

Unavailable

8

SUB-HARNESS (NOT AVAILABLE)

32101-MR7-000

Unavailable

9

GUARD, FUSE

38208-MR7-600

Unavailable

10

COVER, FUSE BOX

38210-MR7-721

Unavailable

11

LABEL, FUSE

38215-MR7-721

Unavailable

12

BAND, WIRE HARNESS

90650-MA6-720

$4.15

13

BAND (100MM) (BLACK)

90676-692-000

$6.64

14

SCREW-WASHER (4X12)

93892-04012-07

$1.49

15

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

16

FUSE, BLADE (10A)

98200-31000

$1.49

17

FUSE, BLADE (20A)

98200-32000

$1.49
