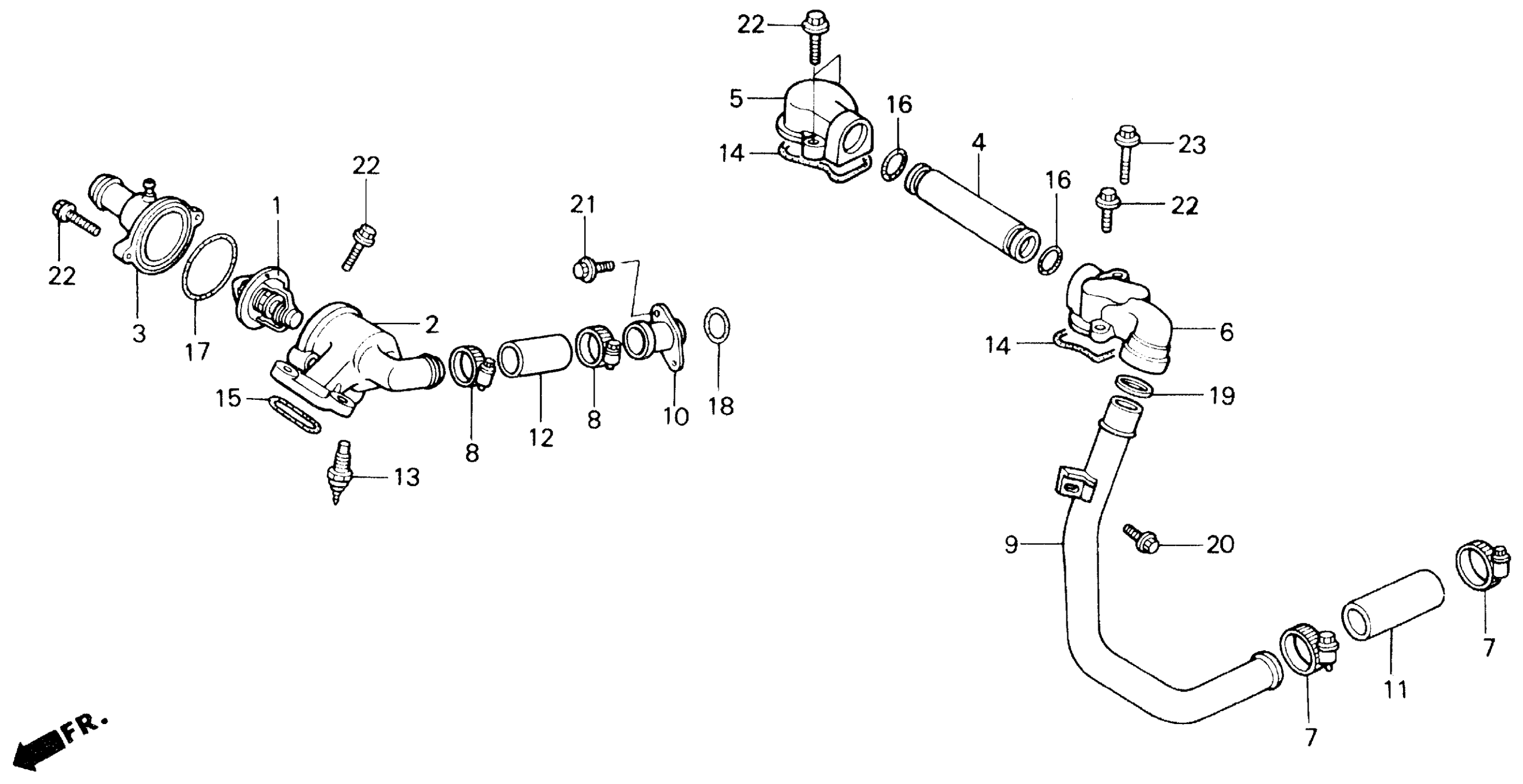

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 WATER PIPE Diagram

#

Description
Price

1

THERMOSTAT ASSY.

19300-ML7-003

$49.22

2

CASE, THERMOSTAT

19311-MR7-000

Unavailable

3

COVER, THERMOSTAT (NOT AVAILABLE)

19315-MR7-000

Unavailable

4

PIPE, CONNECTING

19507-MB0-000

Unavailable

5

CAP A, CONNECTING

19508-MB0-000

Unavailable

6

CAP B, CONNECTING PIPE

19509-MB0-000

Unavailable

7

CLAMP, HOSE (24-32MM) This part replaces 19516-ML7-690.

19516-ML7-691

$14.40

7

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

8

CLAMP, HOSE (22-29MM) This part replaces 19517-ML7-690.

19517-ML7-691

$11.62

8

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

9

PIPE A, WATER

19521-ML7-000

Unavailable

10

JOINT, WATER

19523-MR7-000

Unavailable

11

HOSE A, WATER

19525-ML7-000

Unavailable

12

HOSE D, WATER

19528-MR7-000

Unavailable

13

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

14

GASKET, CONNECTING CAP

91301-MB0-000

$4.10

15

O-RING (22X27X2)

91301-MR7-000

Unavailable

16

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

17

O-RING (47.5X2)

91311-KE8-000

$2.39

18

O-RING (17X3) (ARAI)

91312-KE8-003

$2.84

19

SEAL, WATER PIPE

91315-MB0-013

$2.70

20

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

21

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

22

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

23

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
