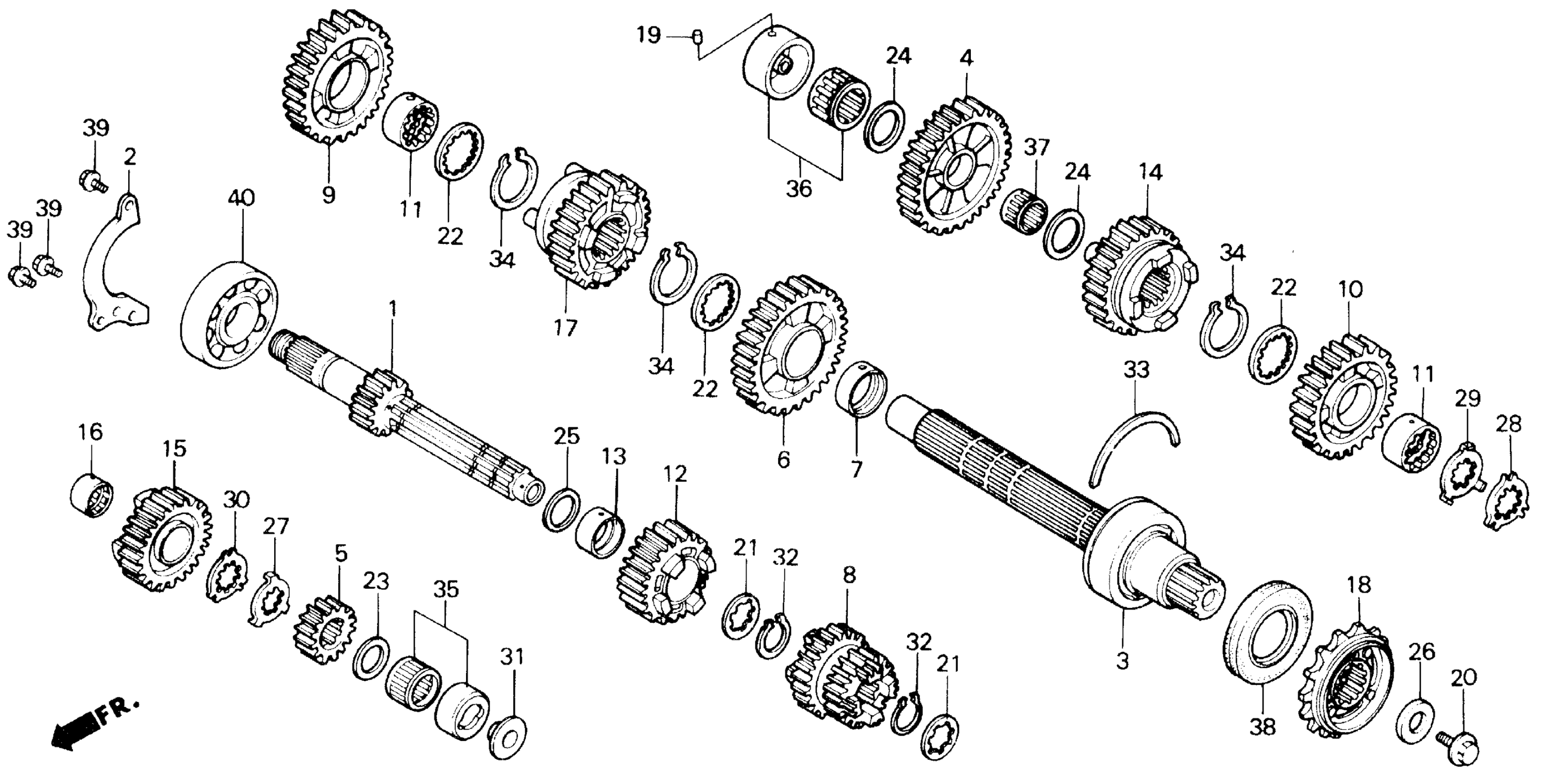

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (15T)

23211-MR7-000

Unavailable

2

PLATE, BEARING SETTING

23212-ML7-000

$12.21

3

COUNTERSHAFT

23220-ML7-920

Unavailable

3

COUNTERSHAFT This part replaces 23220-MR7-000.

23220-ML7-920

Unavailable

4

GEAR, COUNTERSHAFT LOW (36T)

23421-MR7-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T)

23431-MR7-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23441-MR7-000

Unavailable

7

COLLAR (28MM)

23442-ML7-000

$27.93

8

GEAR, MAINSHAFT THIRD & FOURTH (19T/23T) This part replaces 23451-MR7-000.

23451-MW4-000

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (19T/23T)

23451-MW4-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (31T)

23461-MR7-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (33T)

23481-MR7-000

Unavailable

11

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$30.92

12

GEAR, MAINSHAFT FIFTH (24T) This part replaces 23491-MR7-000.

23491-MW4-000

Unavailable

13

COLLAR (25X12)

23495-MB0-000

$26.23

14

GEAR, COUNTERSHAFT FIFTH (31T)

23501-MR7-000

Unavailable

15

GEAR, MAINSHAFT SIXTH (26T)

23511-MR7-000

Unavailable

16

COLLAR, SPLINE (25X16)

23512-MR7-000

$30.69

17

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MR7-000

Unavailable

18

SPROCKET, DRIVE (16J) This part replaces 23800-MR7-000.

23801-MR7-P00

Unavailable

18

SPROCKET, DRIVE (16J)

23801-MR7-P00

Unavailable

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, SPLINE (25X31X1.5)

90451-MR7-000

Unavailable

22

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

23

WASHER, THRUST (20MM)

90454-428-000

$2.53

24

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

24

WASHER A, THRUST (22MM)

90456-ML7-000

$5.62

24

WASHER C, THRUST (22MM)

90457-ML7-000

$5.62

25

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

26

WASHER (10.2MM)

90459-438-000

$5.83

27

WASHER, LOCK (25MM)

90462-MR7-000

$11.00

28

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

29

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

30

WASHER, SPLINE (25MM)

90465-MR7-000

$10.41

31

PLATE, ORIFICE

90558-MR7-000

Unavailable

32

CIRCLIP (25MM)

90601-107-000

$3.74

33

RING SET (68MM)

90602-MR7-000

$8.54

34

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$4.11

34

CIRCLIP (28MM)

90603-MN4-000

$4.11

35

BEARING, NEEDLE (20MM)

91022-MG2-791

$46.80

35

BEARING, NEEDLE (20MM) This part replaces 91022-ML7-690.

91022-MG2-791

$46.80

36

BEARING, NEEDLE (22MM) (TOYO)

91023-MR7-003

Unavailable

37

BEARING, NEEDLE (22X26X11)

91026-MB4-003

$14.48

38

OIL SEAL (40X68X7.2) This part replaces 91207-MR7-003.

91207-MW4-003

Unavailable

39

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

40

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
