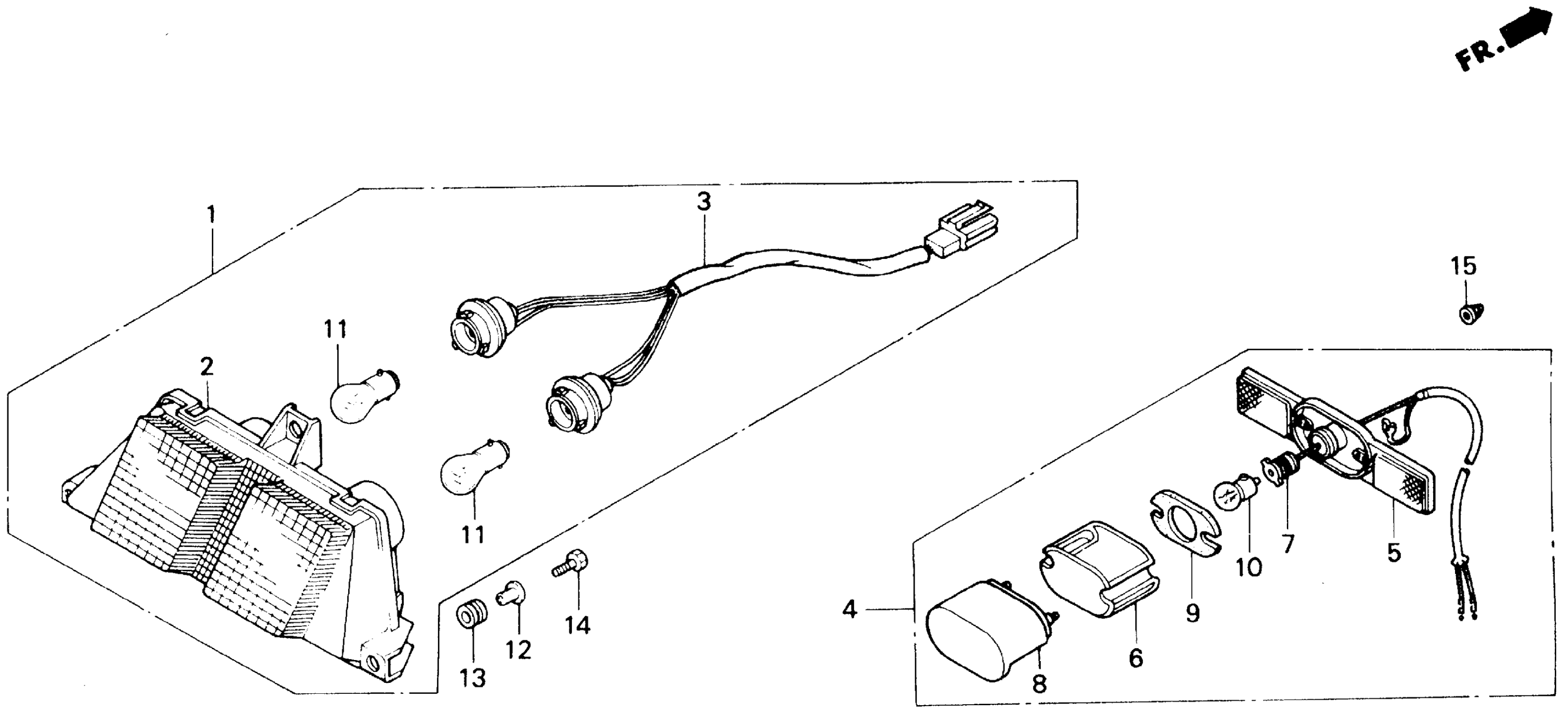

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (12V 32/2CP)

33701-MR7-721

Unavailable

2

TAILLIGHT SUB-ASSY.

33705-MR7-721

Unavailable

3

SOCKET, TAILLIGHT (NOT AVAILABLE)

33710-MR7-003

Unavailable

4

LIGHT ASSY., LICENSE (12V 4CP) (NOT AVAILABLE)

33720-MN4-671

Unavailable

5

BASE (NOT AVAILABLE)

33721-ME4-671

Unavailable

6

LENS, LICENSE LIGHT

33722-MB1-013

$17.67

7

WIRE, LICENSE

33725-MN4-003

Unavailable

8

COVER, LICENSE (STANLEY)

33727-ME4-671

$24.83

9

GASKET, LENS

33729-MB1-003

$5.86

10

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.80

10

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.80

10

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.80

10

BULB (12V8W)

34909-505-003

$2.80

10

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.80

11

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$3.86

12

COLLAR, SPEEDOMETER MOUNTING This part replaces 37243-MM4-000.

37243-MBB-000

Unavailable

13

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$4.76

14

BOLT, HEX. (6X22)

92101-06022-0A

$1.41

15

NUT, CAP (4MM)

94021-04000-0S

Unavailable
