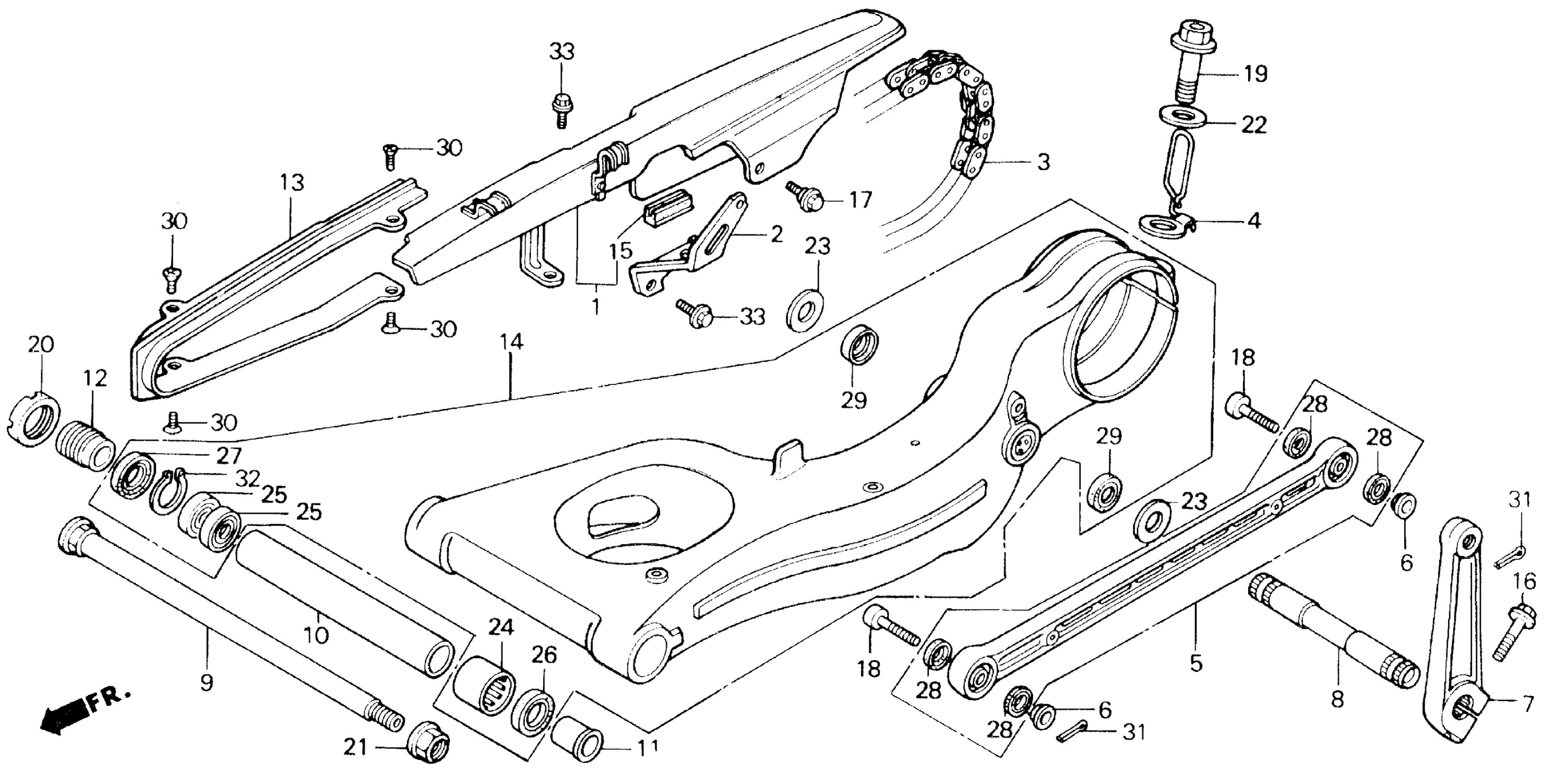

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-MR7-000

Unavailable

2

STAY, CHAIN CASE

40515-MR7-000

Unavailable

3

CHAIN, DRIVE (RK-GB525R0 106LE) (TAKASAGO)

40530-MR7-005

Unavailable

4

GUIDE, BRAKE HOSE

43350-MR7-000

Unavailable

5

LINK ASSY., TORQUE

43430-MR7-000

Unavailable

6

COLLAR, TORQUE LINK (NOT AVAILABLE)

43433-MR7-000

Unavailable

7

ARM B, BRAKE TORQUE

43434-MR7-000

Unavailable

8

SHAFT, BRAKE TORQUE

43436-MR7-000

Unavailable

9

BOLT, SWINGARM PIVOT

52101-MR7-000

Unavailable

10

COLLAR, RR. SWINGARM PIVOT

52102-MR7-000

Unavailable

11

COLLAR B, PIVOT

52106-MR7-000

$34.38

12

BOLT, PIVOT ADJUSTING

52109-MR7-000

Unavailable

13

SLIDER, CHAIN This part replaces 52170-MR7-000.

52170-MR7-010

Unavailable

13

SLIDER, CHAIN

52170-MR7-010

Unavailable

14

SWINGARM SET

52200-MR7-305

Unavailable

15

RUBBER, CHAIN CASE

64121-MR7-300

Unavailable

16

BOLT, FLANGE (8X32)

90107-MR7-000

Unavailable

17

BOLT, FLANGE (6MM)

90111-ML0-730

$3.88

18

BOLT, SOCKET (10X30) This part replaces 90122-MR7-000.

90122-MCP-900

$12.38

19

BOLT, FLANGE (16X51)

90155-MR7-000

Unavailable

20

NUT, LOCK (30X1.5)

90301-MR7-000

Unavailable

21

NUT, U (18MM)

90305-MB4-003

$12.52

22

WASHER, PLAIN (16MM)

90559-HA8-000

$6.54

23

WASHER, TORQUE LINK

90655-MR7-000

Unavailable

24

BEARING, NEEDLE

91071-MR7-003

$25.68

25

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$18.01

26

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

27

DUST SEAL (26X37X5)

91214-MR7-003

$6.99

28

DUST SEAL (13X18X3) This part replaces 91272-KA3-711.

91272-KA3-712

Unavailable

28

DUST SEAL (13X18X3)

91272-KA3-712

Unavailable

29

DUST SEAL (20X31X5)

91285-MR7-003

Unavailable

30

SCREW, FLAT (5X12)

93600-05012-0A

$1.49

31

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

31

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

31

PIN, SPLIT (2.0X22)

94201-20220

$1.49

31

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

31

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

31

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

31

PIN, SPLIT (2.0X35)

94201-20350

$1.49

31

PIN, COTTER (2.0X22)

94201-29220

$1.49

32

CIRCLIP, INNER (37MM)

94520-37000

$2.18

33

BOLT, FLANGE (6X12)

96300-06012-07

$1.49
