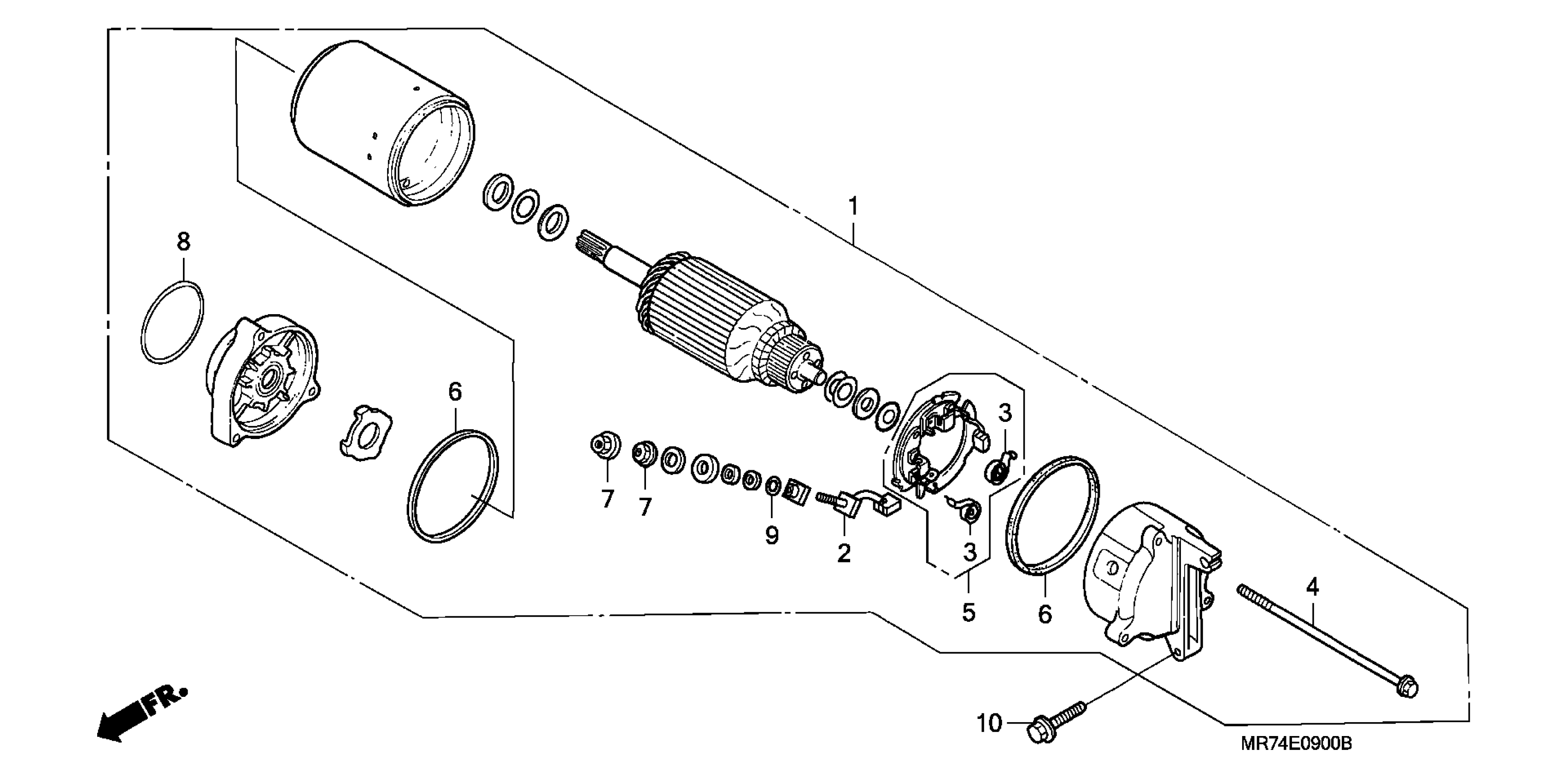

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 STARTING MOTOR Diagram

#

Description

Price

1

STARTER MOTOR ASSY. (MITSUBA) This part replaces 31200-MR7-008.

31200-MR7-018

Unavailable

1

STARTER MOTOR ASSY. (MITSUBA)

31200-MR7-018

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.69

3

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

4

BOLT, SETTING This part replaces 31205-MR7-008.

31205-MN0-008

$5.15

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$24.24

6

RING

31207-KS5-901

$2.97

7

NUT-WASHER (6MM)

90071-MB0-000

$1.91

8

O-RING

91309-MA6-000

$3.78

9

O-RING

91320-MB0-000

$2.24

10

BOLT, FLANGE (6X25)

96001-06025-07

$1.24
