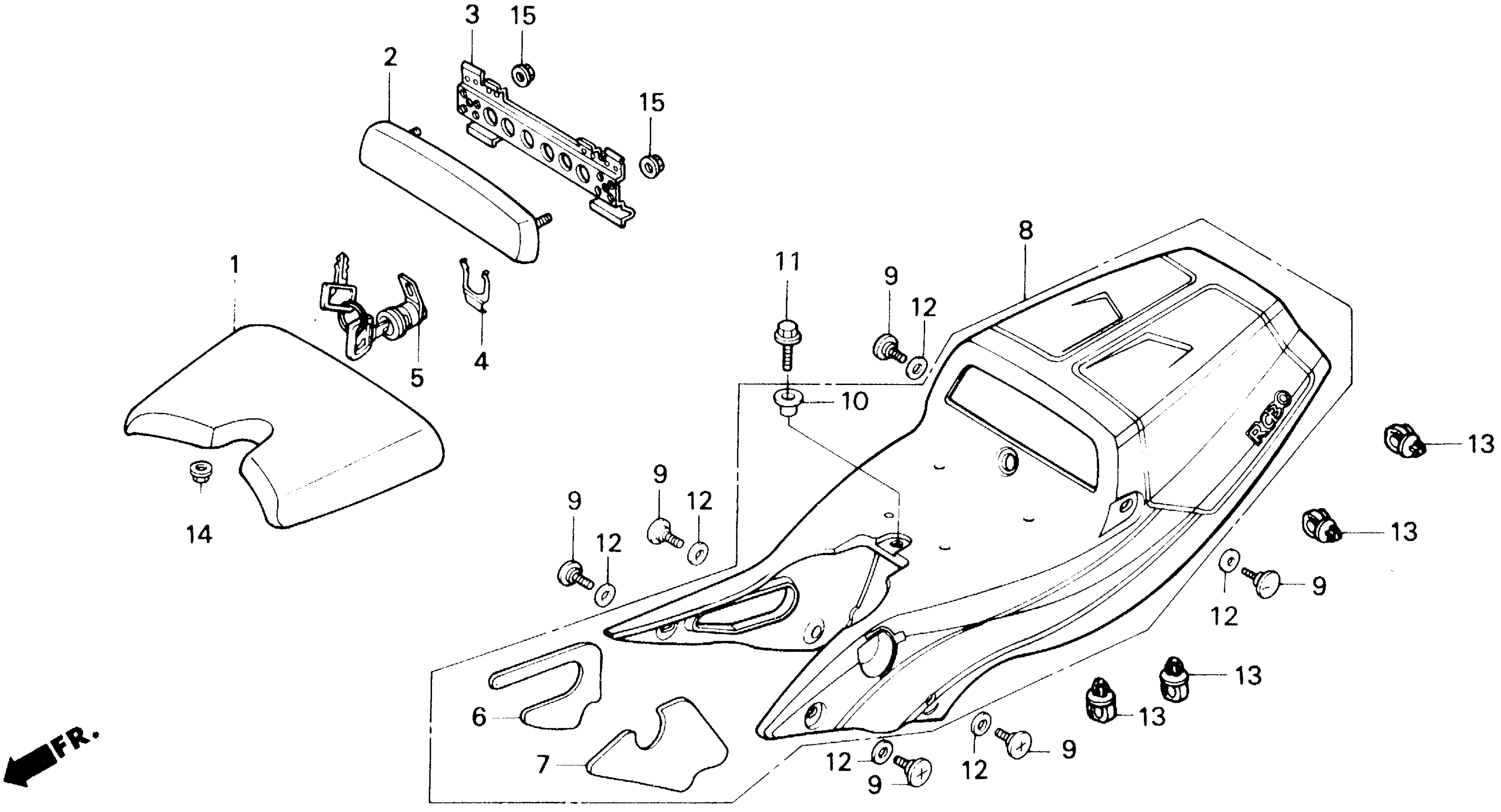

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 SEAT Diagram

SEAT, MAIN (NOT AVAILABLE)

77100-MR7-003

Unavailable

SEAT, BACK

77122-MR7-003

Unavailable

PLATE, SEAT-BACK (NOT AVAILABLE)

77123-MR7-000

Unavailable

SPRING, LOCK SETTING

77211-ME4-000

$7.16

LOCK ASSY., SEAT-BACK (NOT AVAILABLE)

77230-MR7-000

Unavailable

MAT, R. SEAT COWL HEAT GUARD

77235-MR7-600

Unavailable

MAT, L. SEAT COWL HEAT GUARD (NOT AVAILABLE)

77236-MR7-600

Unavailable

COWL ASSY., SEAT *NH193PA* (WL) (PEARL CRYSTAL WHITE-A) (NOT AVAILABLE)

77240-MR7-770ZA

Unavailable

BOLT A, COWL SETTING

83641-MR7-000

$5.26

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

BOLT, FLANGE (6X18)

90134-MR7-000

Unavailable

WASHER (9X20)

90504-HA0-000

$2.28

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.47

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
