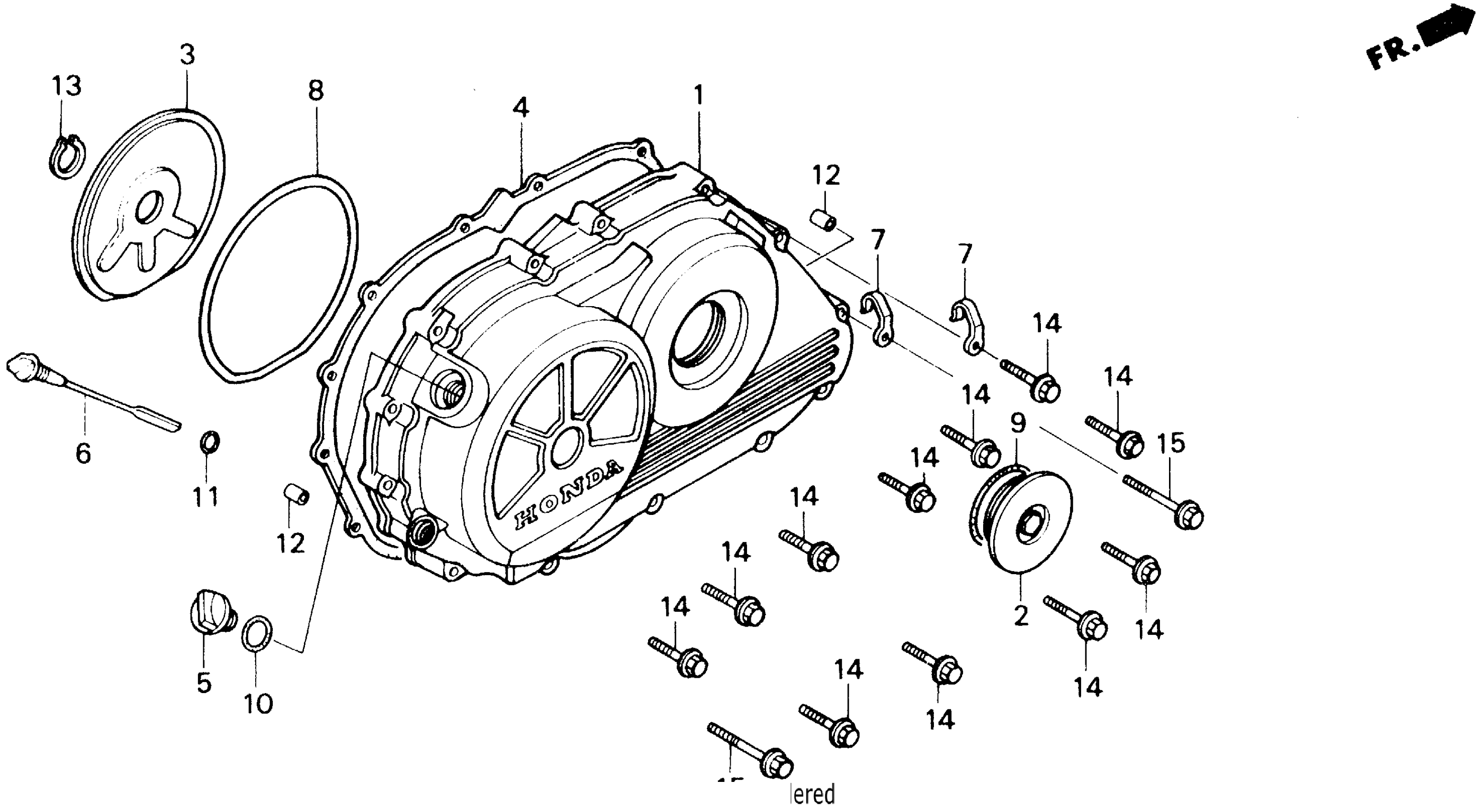

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11331-MR7-000

Unavailable

CAP (45MM)

11332-ML7-000

$28.05

PLATE, R. COVER

11333-MR7-000

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-ML7-000.

11394-MY7-000

$22.73

GASKET, R. CRANKCASE COVER This part replaces 11394-ML7-306.

11394-MY7-000

$22.73

GASKET, R. CRANKCASE COVER This part replaces 11394-MR7-780.

11394-MY7-000

$22.73

GASKET, R. CRANKCASE COVER

11394-MY7-000

$22.73

CAP, OIL FILLER

15611-MB0-000

$9.93

DIPSTICK, OIL

15650-ML7-000

Unavailable

CLAMP, SWITCH WIRE

35211-443-760

$4.13

O-RING (116X2)

91262-429-000

Unavailable

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

O-RING (21.5X3.2)

91307-425-003

$2.59

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

BOLT, FLANGE (6X32)

96001-06032-07

$1.54
