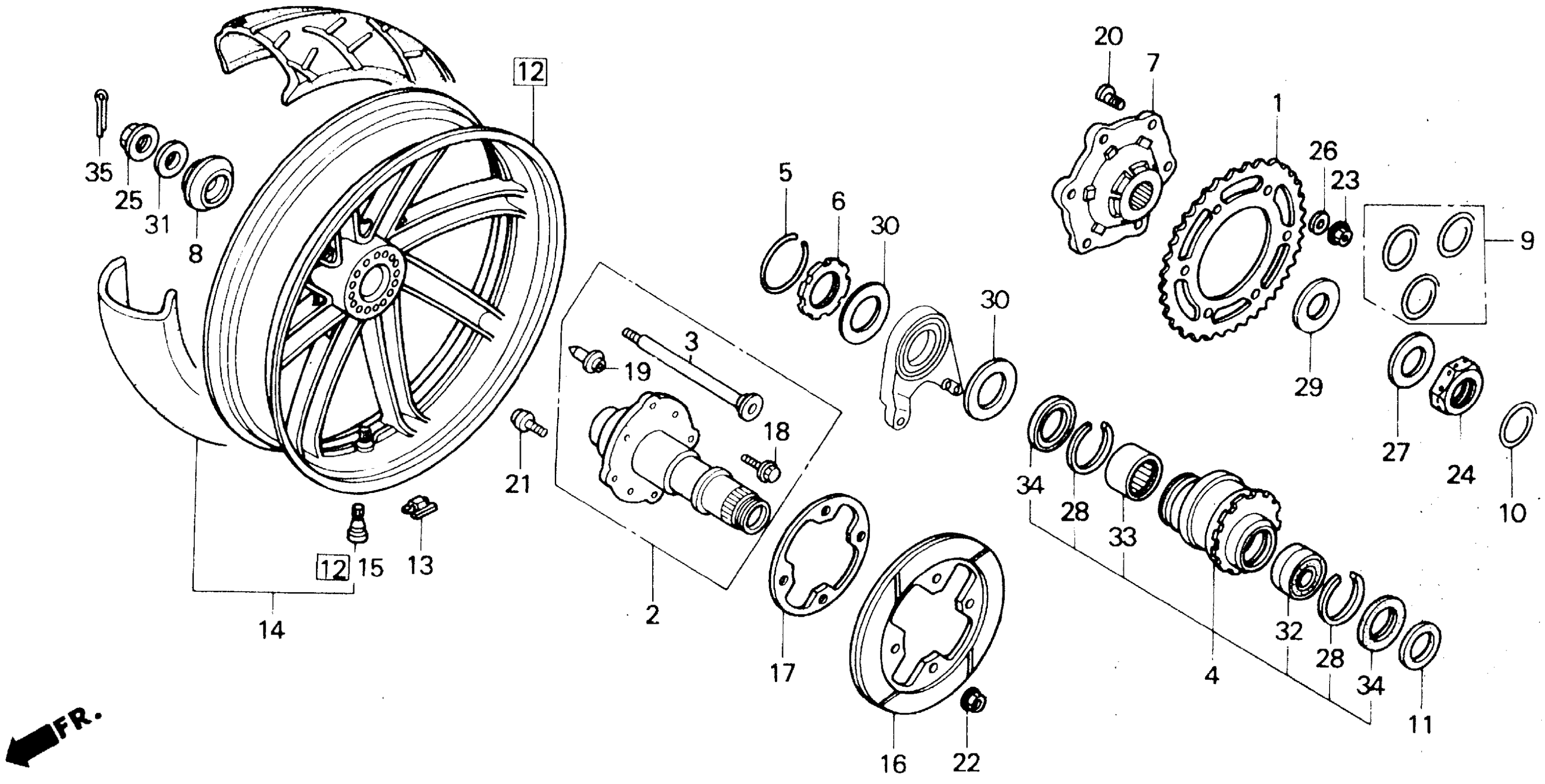

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (40T)

41201-MR7-000

Unavailable

2

AXLE, RR.

42300-MR7-000

Unavailable

3

BOLT, RR. AXLE

42302-MR7-000

Unavailable

4

HOLDER, BEARING

42500-MR7-000

Unavailable

5

RING, SNAP (76MM)

42504-MR7-000

Unavailable

6

NUT, BEARING HOLDER

42505-MR7-000

Unavailable

7

FLANGE, FINAL DRIVEN

42605-MR7-000

Unavailable

8

SPACER, CENTERLOCK This part replaces 42606-MR7-000.

42606-MW4-000

Unavailable

9

WIRE SET, NUT LOCK

42607-MR7-305

Unavailable

10

WIRE, NUT LOCK

42608-MR7-305

Unavailable

11

COLLAR, RR. AXLE DISTANCE

42621-MR7-000

Unavailable

12

WHEEL SET, RR. *NH196* (ROSS WHITE)

42650-MR7-305ZA

Unavailable

13

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

13

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

13

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

14

TIRE ASSY., RR. (170/60VR18) (V270 K855) (DUNLOP) (NOT AVAILABLE)

42710-MR7-612

Unavailable

15

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

16

DISK, RR. BRAKE (NOT AVAILABLE)

43251-MR7-000

Unavailable

17

SPACER, RR. DISK

43252-MR7-000

Unavailable

18

BOLT, DRIVE PIN

90113-MR7-000

Unavailable

19

PIN, DRIVE

90114-MR7-000

Unavailable

20

BOLT, SPROCKET

90120-MR7-000

Unavailable

21

BOLT, SOCKET (6X18)

90121-MR7-000

Unavailable

22

NUT, U (6MM)

90301-473-003

$4.07

23

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

23

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

24

NUT (38X1.5)

90315-MR7-000

Unavailable

25

NUT, RR. AXLE

90316-MR7-000

Unavailable

26

WASHER (8MM)

90465-MC4-000

$2.51

27

WASHER, CONICAL SPRING (38MM) This part replaces 90501-MR7-003.

90501-KV3-951

Unavailable

28

CIRCLIP (INNER) (62MM)

90651-ML0-731

$5.98

29

SHIM, DRIVEN FLANGE

90653-MR7-000

Unavailable

30

WASHER, RR. CALIPER

90654-MR7-000

Unavailable

31

WASHER, RR. AXLE

90656-MR7-000

Unavailable

32

BEARING, RADIAL BALL (6908LU)

91061-ML0-731

$47.56

33

BEARING, RR. AXLE NEEDLE

91062-MR7-003

$42.42

34

DUST SEAL (50X62X5)

91284-MR7-003

$12.78

35

PIN, COTTER (2.5MM)

94201-25400

Unavailable
