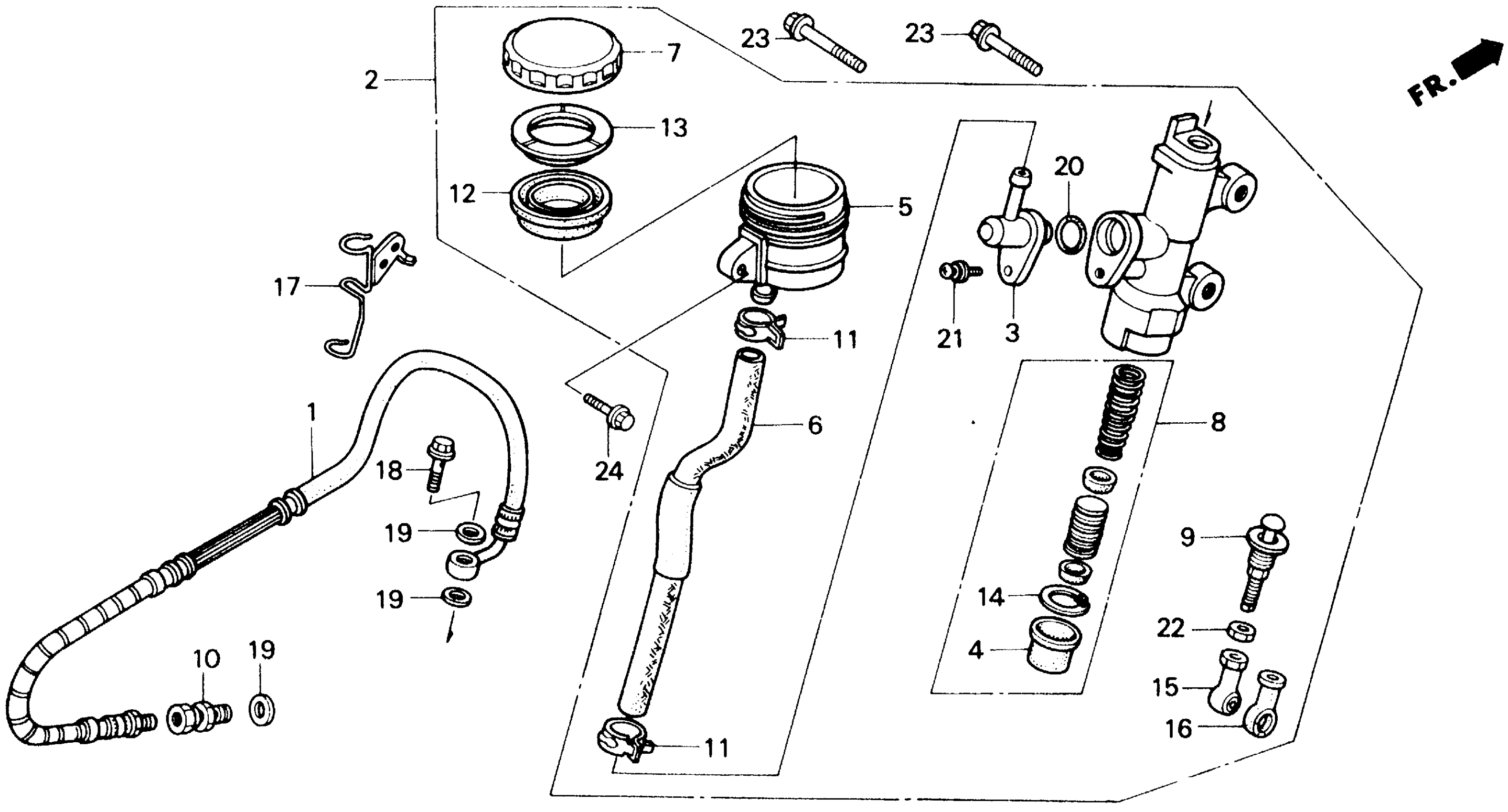

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MR7-771

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)

43500-MR7-611

Unavailable

3

CONNECTOR

43503-MR7-006

$14.04

4

BOOT

43504-MB2-006

$10.04

5

CUP, OIL This part replaces 43511-MR7-006.

43511-MR7-016

$32.46

5

CUP, OIL

43511-MR7-016

$32.46

6

HOSE, MASTER CYLINDER (NOT AVAILABLE)

43512-MR7-006

Unavailable

7

CAP, OIL CUP

43513-MB4-672

Unavailable

8

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$46.51

9

ROD, PUSH

43530-MB2-006

$34.74

10

JOINT, BRAKE HOSE

45127-KZ4-003

Unavailable

11

CLAMP, MASTER CYLINDER OIL HOSE

45514-KV3-006

$15.70

12

DIAPHRAGM

45520-300-000

$9.05

13

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

14

CIRCLIP

46182-500-013

$4.90

15

TIE ROD

46505-MR7-300

Unavailable

16

COVER, DUST

46506-MR7-000

Unavailable

17

GUIDE, RR. BRAKE HOSE

50406-MR7-000

Unavailable

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

O-RING (14.8X2.4)

91212-422-006

$2.56

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49

23

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

24

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
