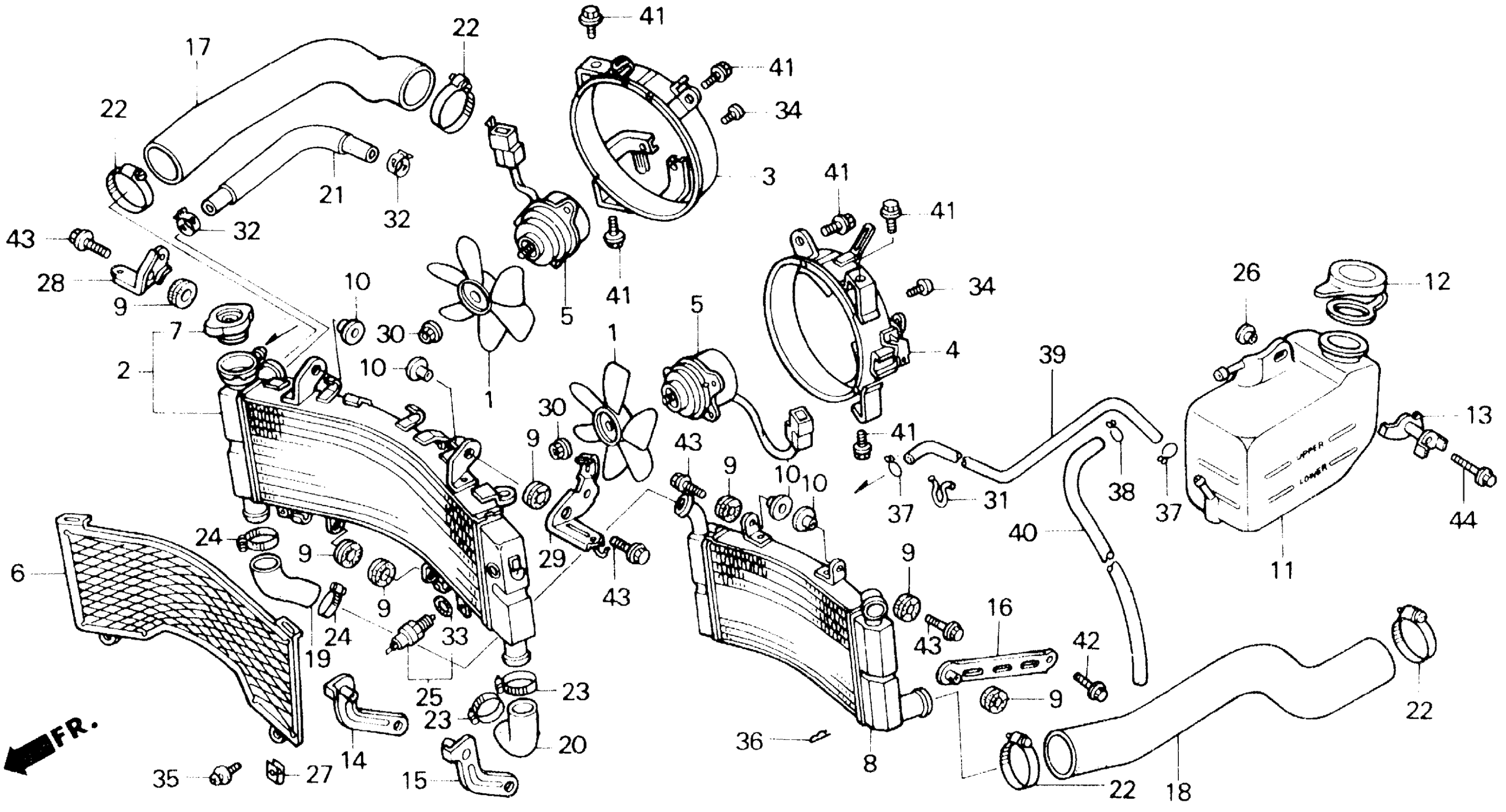

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 RADIATOR Diagram

#

Description
Price

1

FAN, COOLING

19009-KT7-000

$58.30

2

RADIATOR (TOYO)

19010-MR7-003

Unavailable

3

SHROUD, R. (TOYO)

19016-MR7-003

Unavailable

4

SHROUD, L. (TOYO)

19021-MR7-003

Unavailable

5

MOTOR, COOLING FAN This part replaces 19030-MR7-003.

19030-MR7-013

Unavailable

6

GRILLE, RADIATOR (UPPER) (NOT AVAILABLE)

19032-MR7-000

Unavailable

7

CAP, RADIATOR This part replaces 19037-KA4-701.

19045-MZ1-621

$50.26

8

RADIATOR (LOWER)

19050-MR7-003

Unavailable

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

10

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA3-830.

19052-MAC-680

$5.14

10

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

11

TANK, RESERVE (NOT AVAILABLE)

19101-ML0-010

Unavailable

12

CAP, RESERVE TANK

19104-MB0-700

$12.16

13

STAY, RESERVE TANK (NOT AVAILABLE)

19106-MR7-770

Unavailable

14

STAY, R. RADIATOR (UPPER)

19130-MR7-000

Unavailable

15

STAY, L. RADIATOR (UPPER)

19131-MR7-000

Unavailable

16

STAY, RADIATOR (LOWER)

19137-MR7-000

Unavailable

17

HOSE, RADIATOR (UPPER)

19500-MR7-000

Unavailable

18

HOSE, RADIATOR (LOWER)

19501-MR7-000

Unavailable

19

HOSE, R. RADIATOR JOINT (UPPER/LOWER) (NOT AVAILABLE)

19502-MR7-000

Unavailable

20

HOSE, L. RADIATOR JOINT (UPPER/LOWER) (NOT AVAILABLE)

19503-MR7-000

Unavailable

21

TUBE, RADIATOR (UPPER) (NOT AVAILABLE)

19504-MR7-000

Unavailable

22

CLAMP, WATER HOSE

19516-MB6-000

$14.41

23

CLAMP, HOSE (24-32MM) This part replaces 19516-ML7-690.

19516-ML7-691

$14.40

23

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

24

CLAMP, HOSE (22-29MM) This part replaces 19517-ML7-690.

19517-ML7-691

$11.62

24

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

25

SWITCH ASSY., THERMO

37760-MR7-601

Unavailable

26

COLLAR, RIVETING

61102-329-790

Unavailable

27

NUT, CLIP (4MM) This part replaces 64527-ML7-000.

64527-KY2-700

$4.46

28

STAY, R. PANEL (INNER)

64591-MR7-000

Unavailable

29

STAY, L. PANEL (INNER) (NOT AVAILABLE)

64592-MR7-000

Unavailable

30

NUT, TOOTHED (3MM)

90308-KM3-003

$2.33

31

CLIP, PURSE LOCK

90630-751-000

$1.92

31

CLIP, PURSE LOCK This part replaces 90653-SA7-003.

90630-751-000

$1.92

32

CLIP, SPECIAL (10.5)

90691-PA1-003

Unavailable

33

O-RING (13.5X1.4)

91307-PH7-660

$2.83

33

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

34

SCREW-WASHER (4X8)

93891-04008-07

$1.49

35

SCREW-WASHER (4X12)

93891-04012-00

$1.49

37

CLIP, TUBE (B10)

95002-02100

$1.90

38

CLIP, TUBE (C11)

95002-70000

$1.56

39

BULK HOSE, VACUUM (5.5X3000) (5.5X630)

95005-55003-20M

$34.09

40

BULK HOSE, VACUUM (7X3000) (7X300)

95005-70003-30M

$23.45

41

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

42

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

43

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

44

BOLT, FLANGE (6X40)

96001-06040-07

$1.49
