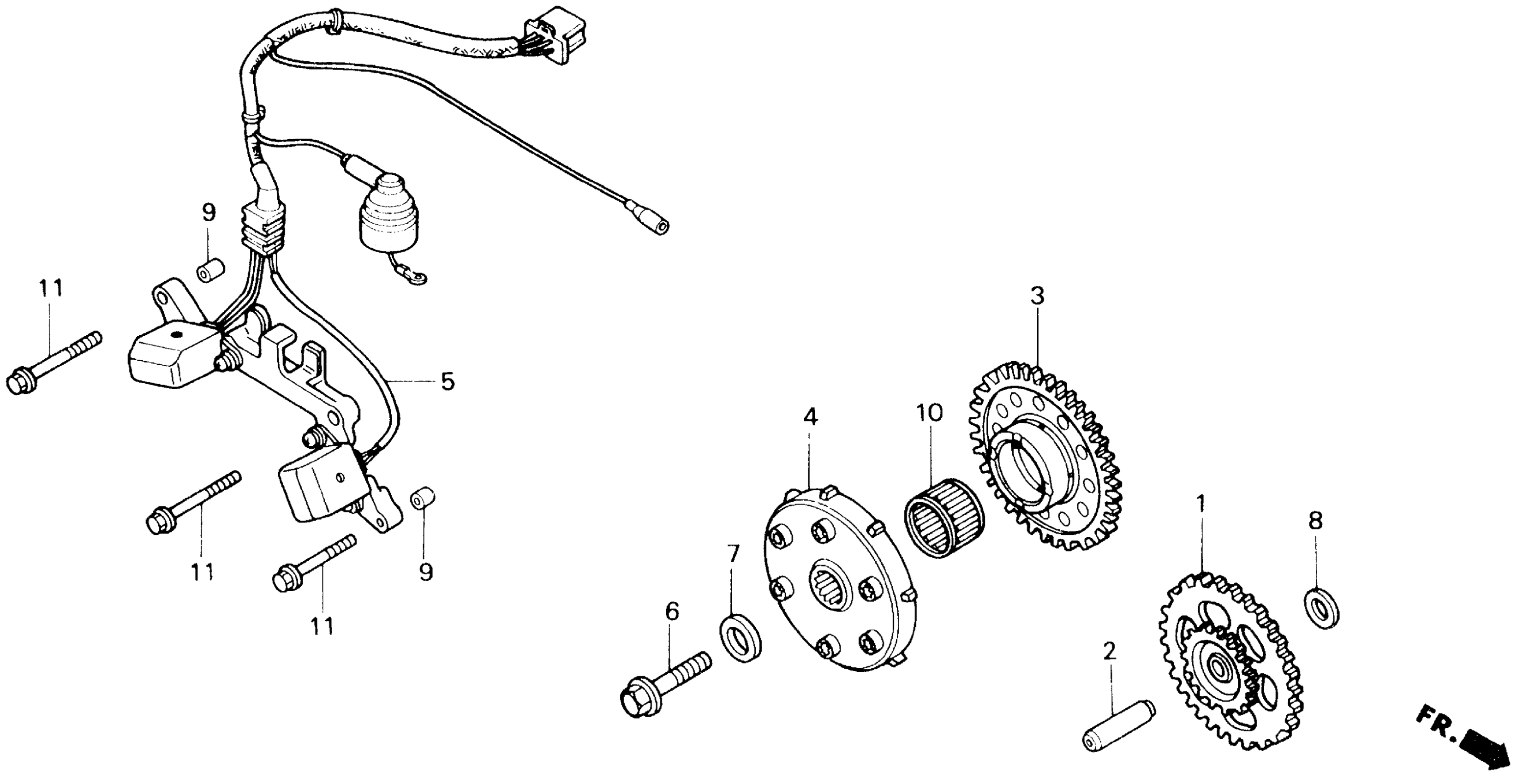

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 PULSE GENERATOR Diagram

#

Description
Price

1

GEAR, STARTER REDUCTION (83T/21T) (NOT AVAILABLE)

28101-MR7-000

Unavailable

2

PIN (10X36.5)

28102-ML7-000

$8.49

3

GEAR, STARTING CLUTCH (48T)

28110-MR7-000

Unavailable

4

CLUTCH, STARTING This part replaces 28120-MR7-003.

28120-MR7-004

Unavailable

5

GENERATOR ASSY., PULSE

30300-MR7-164

Unavailable

6

BOLT, FLANGE (12X45)

90023-MA6-000

$10.28

7

WASHER (12X30X4.5)

90401-KK9-960

Unavailable

8

WASHER (18X10.2)

90405-ML7-000

Unavailable

9

PIN, DOWEL (8X8)

90702-MB0-000

$3.51

10

BEARING, NEEDLE (30X35X17)

91022-MB0-003

$34.26

10

BEARING, NEEDLE (30X35X17)

91022-MB0-004

Unavailable

11

BOLT, FLANGE (6X25)

96001-06025-00

$2.63
