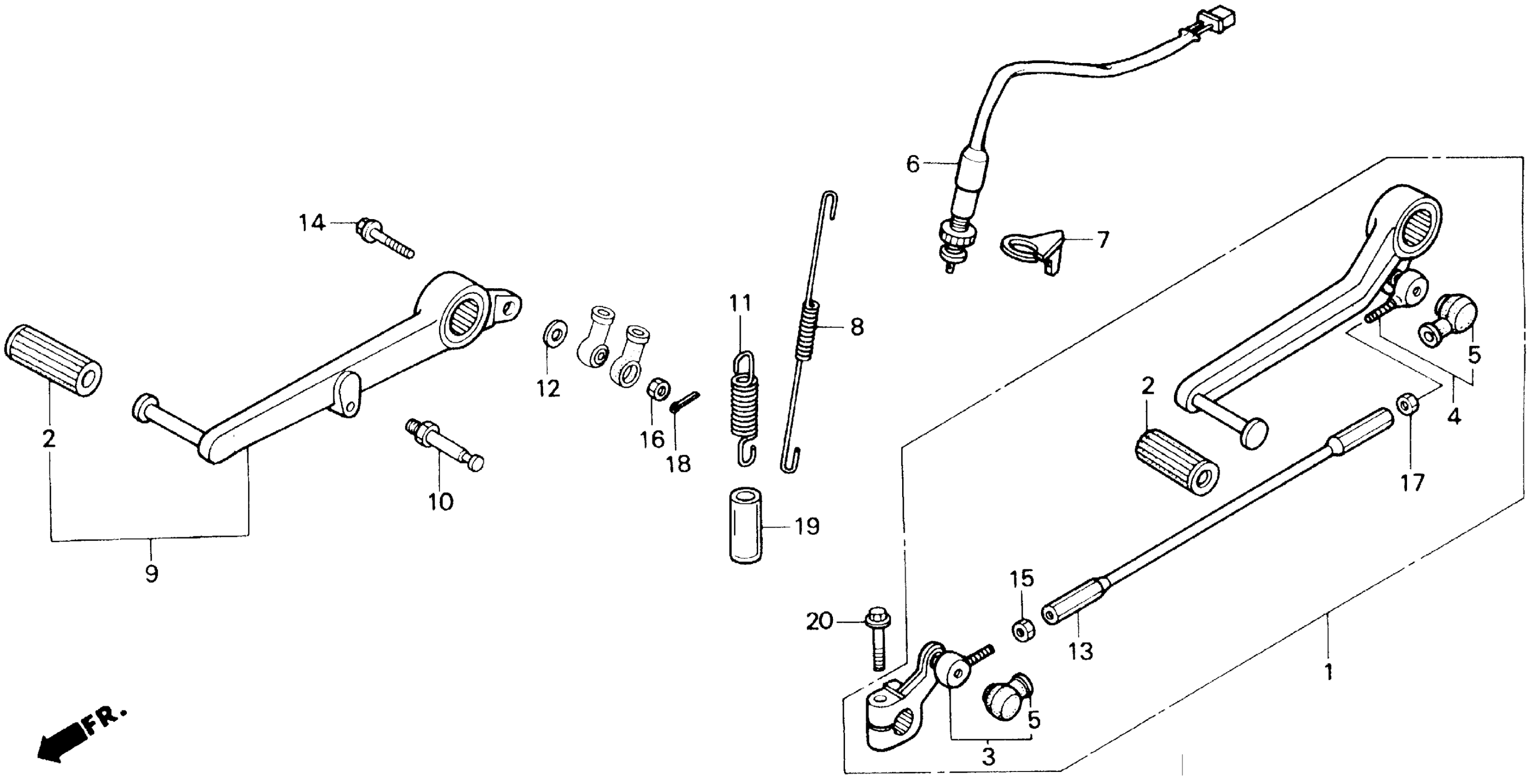

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24700-MR7-601

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.76

3

ARM, GEARSHIFT

24710-MR7-000

Unavailable

4

PEDAL, GEARSHIFT

24720-MR7-601

Unavailable

5

COVER, DUST

24724-422-000

$6.68

6

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

6

SWITCH ASSY., RR. STOP This part replaces 35350-MR7-000.

35350-KA2-405

$16.22

7

STAY, STOP SWITCH

35355-MR7-000

Unavailable

8

SPRING, STOP SWITCH

35357-KE7-000

Unavailable

9

PEDAL, RR. BRAKE

46501-MR7-300

Unavailable

10

PIN, BRAKE PEDAL

46502-MR7-000

Unavailable

11

SPRING, BRAKE PEDAL RETURN

46514-MR7-000

Unavailable

12

WASHER, PLAIN

66853-SA4-000

Unavailable

13

BAR, GEARSHIFT

90065-MR7-300

Unavailable

14

BOLT, FLANGE (8X32)

90118-MR7-690

Unavailable

15

NUT, TIE ROD (B)

90201-KV3-700

$2.31

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

NUT, HEX. (6MM)

94002-06020-0S

$1.49

18

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

18

PIN, COTTER (1.6X25)

94201-16250

$1.49

19

TUBE (13X15X100) This part replaces 95003-43004-10.

95003-43010-10S

Unavailable

20

BOLT, FLANGE (6X22)

96001-06022-02

$2.46
